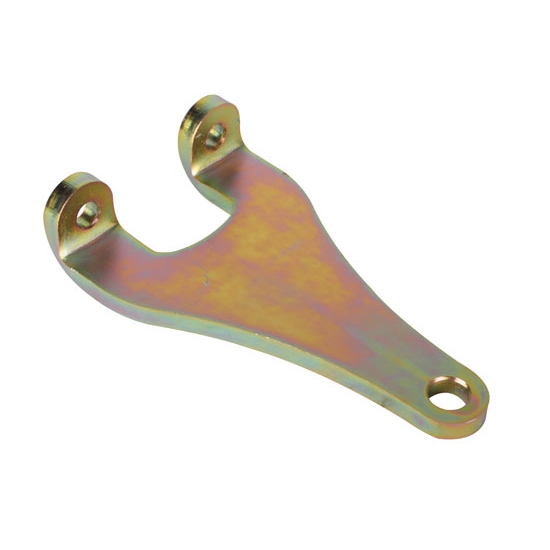

Chevy Flat Upper Steering Arm, Plain

Specs
Centerline of Holes:
3.13
Material Type:
Steel
Overall Height:
1.53
Overall Width:
4.47
Overall Length:
7.60
Sold in Quantity:
Each
Overall Thickness:
.37
Finish:
Zinc
Hole Diameter:
.63
Garage Sale:
No
Chevy Flat Upper Steering Arm, Plain
Chevy Flat Upper Steering Arm, Plain
Chevy Flat Upper Steering Arm, Plain

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Perfect for that traditional steering car.

NOTE: Upper steering arms allow the attachment of a drag link to the LH (driver's side) spindle. The arms attach with bolts through the upper 2 backing-plate-mounting holes on spindle.

Steering Arm Ends Guide (GIF)

Parallel Steering Set-Up Guide (GIF)

Customer Reviews

Rated 4.8 out of 5 by 4 reviewers.
RATING BREAKDOWN
4 reviews
5 Stars
3
4 Stars
1
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

buggman
Verified Purchaser
leominster, ma

I would buy this part again... worked out fine

May 25, 2015
no problems in the ordering process, shipping or instalation
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Tim68
Verified Purchaser
Idaho

Great product.

April 01, 2015
I used this same part on my last project and it worked great, so i knew how good it was for my latest project.....hand built '28 roadster pick up.
Pros:
  • works great!!!
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Dwyatt14
Verified Purchaser
Benton, KY 42025, USA

Fit like suppose too.

March 31, 2015
So far all the parts I have ordered and received have been what I ordered and all have fit properly . I build rat rods and buy all my parts from speedway.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Als Garage & Speed Shop
Verified Purchaser
Southwest Michigan

Good Product

August 02, 2012
Great Supplier !
Pros:
  • Easy To Install
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

1 questions : 1 answers

1 answers

1-dia of mounting holes THANKS

July 04, 2011

1-dia of mounting holes THANKS

Answers

July 06, 2011
QC
These have .475" mounting holes.
