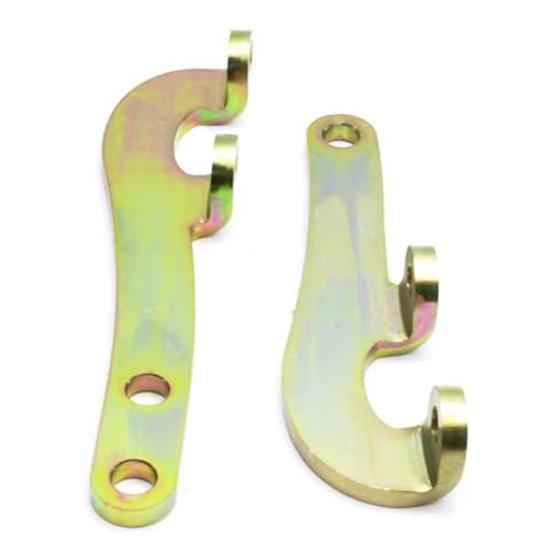

Chevy Flat Plate Steering Arms, Plain

SAME DAY SHIPPING! Order within the next 12 hours 1 minute and receive same day shipping

Specs
Material Type:
Steel
Sold in Quantity:
Pair
Finish:
Zinc
Centerline of Holes:
3.131
Overall Height:
1.556
Overall Width:
2.519
Overall Length:
10.855
Overall Thickness:
.3995
Hole Diameter:
.631
Notes
48" wide axle w/ these arms and early Chevy spindles requires a 45.5" c-to-c tie rod assembly.
Chevy Flat Plate Steering Arms, Plain
Chevy Flat Plate Steering Arms, Plain
Chevy Flat Plate Steering Arms, Plain
Chevy Flat Plate Steering Arms, Plain

Click image to enlarge

Please NOTE the following about this product:

  • This item is sold as a pair.

Details

Reviews

Q & A

What's in the Box

For cross steering when using 1949-54 Chevy spindles. These flat plate arms have 5/8" holes for spherical rod end use only.

Note:  Uses a 45.5" eye to eye tie rod link when used with a 48" wide axle / Chevy spindle.

Steering Arm Ends Guide (GIF)

Cross Steering Guide (GIF)

Customer Reviews

Rated 4.8 out of 5 by 11 reviewers.
RATING BREAKDOWN
11 reviews
5 Stars
10
4 Stars
0
3 Stars
1
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

23 roadster john
Verified Purchaser
little river sc

straight forward design, Keep it simple always works.

August 13, 2015
These arms matches up with the front end assembly's
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Hofer Customs
Verified Purchaser
Dilworth, MN

great product

May 13, 2015
These steering arms worked out great solid and not flimsy.They worked and looked just as described.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Dons82cam
Verified Purchaser
Guthrie Oklahoma

Steering Arms

March 29, 2015
These are out off heavy duty meterial and are nicely made products. They fit great.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

ESTES
Verified Purchaser

NICE

February 18, 2015
FOR FRONT END PARTS THIS IS WHERE TO GO I HAVE BOUGHT 2 STRAIGHT AXLE KITS SO FAR THANKS
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

billpac
Verified Purchaser

Great product!

September 13, 2013
Fabricating steering arms like this would be time consuming and probably cost more; these are great - they fit perfectly and are stout enough to give me confidence that they will not fail in such a critical component as my steering. Thanks, Speedway!
Pros:
  • well-made & stout!
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

redwelter
Verified Purchaser
Vancouver, BC

These arms are OK

June 03, 2012
In the description the eye to eye mounting hole spacing is listed as 3.131 inches, but in the Question/Answer section the holes are said to be 3 1/8 inches apart. So this was confusing but I trusted the Answer section and it worked out, they are indeed 3 1/8 inches apart. Should read 3.125 not 3.131. I would have preferred a cast iron set to look more original but these were all I could find. Overall I am happy with them and they arrived in 4 days!! To Canada no less!
Pros:
  • Nice and thick
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Krazy Kid
Verified Purchaser
Post Falls, Idaho

Good, strong steering arms

May 21, 2012
Very good product. Fit is perfect and is very strong, which you want for steering.
Pros:
  • Heavy duty
  • Durable
  • Good Fit
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

coda13
Verified Purchaser
las vegas nv

simple, and just what you need

January 09, 2012
they are exactly what you need, low price, and since my theme is gold and black they will work out perfect.
Pros:
  • Easy To Use
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

leebone
tennessee

pictures dont do these justice

March 08, 2011
using these on my 30 chevy. the pictures don't do these justice. they are 3/8 steel. way better than i expected. don't hesitate to buy these. as good looking as these plain ones are i wish i had bought the chrome ones! [...]! very happy with product!
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Tom the Stroker
Verified Purchaser
Lakewood CA

I would buy and allways recommend

October 31, 2010
These are the best products on the market, my 66 nova Gasser is looking Great
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 2

Product Q&A

7 questions : 8 answers

1 answers

What thickness plate are these?

grandadio
November 21, 2014

What thickness plate are these?

Answers

November 24, 2014
EricM
These are .400" thick.
2 answers

Can these arms be used in either oriontation? I want the arms for a rear steer on my gasser (behind axle) and the picture looks like it's set up for in front of axle steering? Thanks.

gasserterry
Oregon, USA
March 23, 2013

Can these arms be used in either oriontation? I want the arms for a rear steer on my gasser (behind axle) and the picture looks like it's set up for in front of axle steering? Thanks.

Answers

September 14, 2013
billpac
My T-bucket has "rear-steer" with a 4" dropped tube axle, spring behind; the tie rod and drag link pass under the frame with ease - no interference!
March 25, 2013
Jason
Part number 91632031 is commonly used for rear steer applications. The arm with the two holes is the passenger side arm and the second hole is for the drag link from the steering gear for cross steer from a Vega or 525 steering gear.
1 answers

What drag link do I use with a tappered pitman arm? I have a chevy manual steering box and pitman arm along with your straignt axle kit with chevy spindles and a flat two hole steering arm for a cross steering system. Do you have a drag link that has a heim and a tierod end? How many degrees can a heim end give me in an upper angle. ie: flat steering arm on a high front gasser to a tierod end at the steering box.

1high55
March 18, 2013

What drag link do I use with a tappered pitman arm? I have a chevy manual steering box and pitman arm along with your straignt axle kit with chevy spindles and a flat two hole steering arm for a cross steering system. Do you have a drag link that has a heim and a tierod end? How many degrees can a heim end give me in an upper angle. ie: flat steering arm on a high front gasser to a tierod end at the steering box.

Answers

March 19, 2013
Jason
The simplest solution if you have a flat plate steering arm on the spindle with a straight hole and on the steering gear you have a tapered pitman arm is to simply drill the pitman arm straight thru at 5/8” so you will have a Heim end at each end. The Chevy pitman arm will have a 10 degree taper and in our street rod catalog we do not offer a common GM taper to mate with the 5/8” heim end shank. It would require use of a 11/16 GM tie rod end which is of different length than the Ford and an oversize heim such as number 1750128 and the correct length of sleeve. A heim end will bind on the attachment arm if over 15 degrees and we suggest use of a cone spacer to help with the bind such as number 5464110. If the drag link is at a steep angle we suggest spacing it up from the flat plate steering arm.
1 answers

What is the distance between the two mounting holes?

November 20, 2011

What is the distance between the two mounting holes?

Answers

November 21, 2011
Jason
3-1/8" center to center on mount holes
1 answers

Do these fit pickups?

December 04, 2011

Do these fit pickups?

Answers

December 05, 2011
John
Part # 91632031 Bolt pattern center to center is 3 1/8 and fits many pickup options also. Slight modification for clearance of the king pin boss may be required.
1 answers

I need a steering arm for Chevy style spindles that have a 4 inch drop down for frame clearance like those you see on some Ford spindles. Where could I find them????

John
Sandpoint ID
April 28, 2011

I need a steering arm for Chevy style spindles that have a 4 inch drop down for frame clearance like those you see on some Ford spindles. Where could I find them????

Answers

May 04, 2011
Zach
I'm sorry to say we don't have a drop steering arm for the Chevy spindles like the way we do for Ford spindles. To clear your frame or suspension when you use Chevy spindles you end up needing to modify the arms, or extend your heim away from the steering arm with a spacer. The arms are steel, so they can be bent and welded if need be.
1 answers

Do these mount on the tire side or frame side of the spindle

April 27, 2011

Do these mount on the tire side or frame side of the spindle

Answers

April 29, 2011
Bill
These cross steer flat plate steering arms fit 1949-54 Chevy spindles and mount on the frame side of the spindle.
