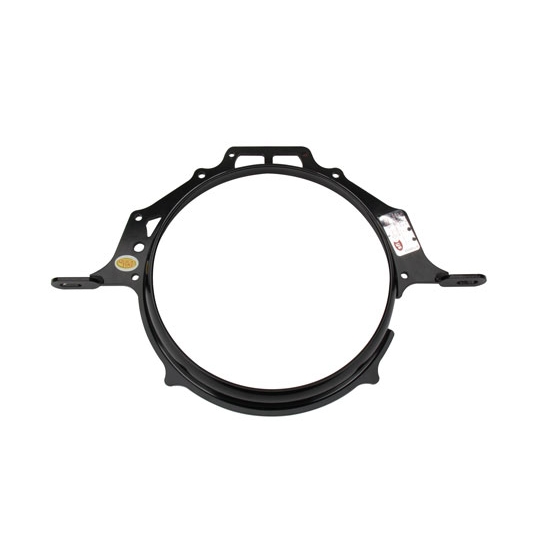

Quick Time RM-6090 Chevy Automatic Transmission Safety Shield w Mount
Click image to enlarge
Q & A
What's in the Box
Item DetailsWith Midmount
You may also be interested in:
Quick Time RM-6091 Chevy Automatic Transmission Midmount Plate with Safety ShieldMore Info
GM Bellhousing Bolt KitMore Info
Quick Time RM-6023 Chevy V8 to T-56 Adapter BellhousingMore Info
Fits all Small Block Chevy blocks. Fits Powerglide, 350 and 400 transmissions, clears 153 tooth flexplate. SFI 30.1 certified. Fits between the transmission and the motor, safety shield slides inside transmission. Makes changing motor transmission easier. Zinc plated.
Hardware kit for GM Explosion-Proof Bellhousing part 515-8650. Features socket head bolts for additional clearance.
- (15) 3/8"-16 x 1" socket head cap screws
- (15) 3/8"-16 crushlock nuts
- (6) 3/8"-16 x 1-1/4" socket head cap screws
- (6) 3/8" steel lockwashers
This steel bellhousing from Quick Time mates a Small Block Chevy, Big Block Chevy, or LT1 to your LS-1 1998-2005 T-56 6-speed transmission. You must use a hydraulic throwout clutch release bearing as there is no provision for mechanical linkage. Includes an engine plate, accepts up to an 11" clutch, and works with 153 or 168 tooth flywheels.
- Lightest steel bellhousing available anywhere
- Cone is spun (not rolled or stamped) for extreme dimensional stability
- High grade steel — work hardens to over 80,000 PSI strength
- Over 2 times the strength of any other steel bellhousing
- SFI 6.1 certified
- Max Clutch Diameter = 11"
- Flywheel = 168 tooth or 153 tooth
- Weight = 22 lbs.
- Full engine plate and grade 8 bolts included
- Internal Hydraulics only
Grade 8 hardware included.
