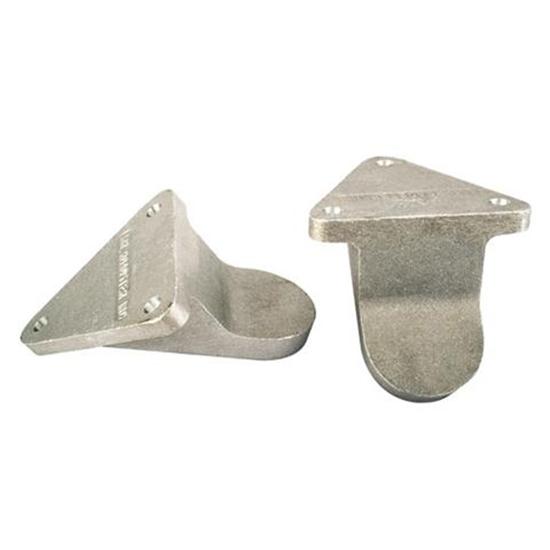

Chevy Aluminum Side Engine Mounts, Plain

SAME DAY SHIPPING! Most orders ship within 24 hours.

Specs
Material Type:
Aluminum
Sold in Quantity:
Pair
Finish:
Natural
MFG. Part #:
916-18002
Chevy Aluminum Side Engine Mounts, Plain

Click image to enlarge

Please NOTE the following about this product:

  • This item is sold as a pair.

Details

Reviews

Q & A

What's in the Box

Universal fit motor mounts. Heat treated aluminum construction. Fits S/B, B/B, 90° V6 Chevy.

Use with cushion kit # 7209314.

Customer Reviews

Rated 4.5 out of 5 by 2 reviewers.
RATING BREAKDOWN
2 reviews
5 Stars
1
4 Stars
1
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Thames
Verified Purchaser
Albertville, AL

Good product for the money

July 21, 2011
Well engineered & durable product.
Pros:
  • Lightweight
  • Durable
  • Easy To Install
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

see442
ks

good product for the price

March 29, 2010
unable to use on my fab. frame will use on next project
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

3 questions : 3 answers

1 answers

Do the engine mounts require drilling to accept the universal cushion kit or are they pre-drilled and the picture does not show it.

February 08, 2012

Do the engine mounts require drilling to accept the universal cushion kit or are they pre-drilled and the picture does not show it.

Answers

February 09, 2012
John
Part number 91618002 This kit does not come predrilled so there is some variance that can be of use. Approximate center to center would be 20" to compare to the front cradle mount offered under part number 1356023. Another new option offered by Speedway in a more durable mount is number 91018033
1 answers

I have a s/b Chevy in a T-bucket chasis, and it is pushing 700 hp. I need to add additional motor mounts to my existing cradle mount system, would these mounts with a cushion kit be sufficient? If not, what do you recomend?

Jon-Boy
Bakersfield, CA
August 17, 2011

I have a s/b Chevy in a T-bucket chasis, and it is pushing 700 hp. I need to add additional motor mounts to my existing cradle mount system, would these mounts with a cushion kit be sufficient? If not, what do you recomend?

Answers

August 18, 2011
John
These side mounts bolt in place of an OEM cushion on the side of the block. They would be used in conjunction with the rubber cushion kit number 7209314 and the appropriate frame mounts or frame mounts fabricated by the builder. If you already have the front cradle mount and are looking for additional support for the high horse motors these would be a feasible addition.
1 answers

do these have to be drilled for cushion bolt

Richard
Temple, GA 30179, USA
October 01, 2012

do these have to be drilled for cushion bolt

Answers

October 02, 2012
Jason
Part number 91618002 This kit does not come predrilled so there is some variance that can be of use. Approximate center to center would be 20" to compare to the front cradle mount offered under part number 1356023. Another new option offered by Speedway in a more durable mount is number 91018033
Page 1 of 1
