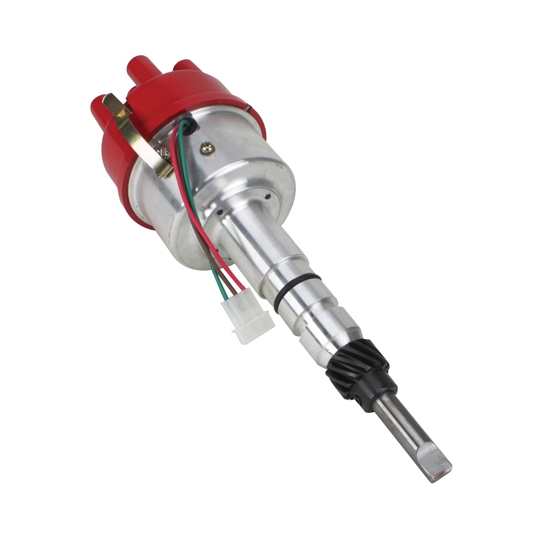

Chevy 235-261 Six Cylinder Electronic Distributor

Free Shipping Free Shipping
Specs
Sold in Quantity:
Each
Trigger Style:
Magnetic Pickup
Shaft Diameter:
0.4785
Cap Terminal Style:
Socket / Female
Mechanical Tach Drive:
No
Slip Collar:
No
Gear Material:
Steel
Rotor Rotation:
Clockwise
Ignition Box Required:
No
Garage Sale:
No
Chevy 235-261 Six Cylinder Electronic Distributor
Chevy 235-261 Six Cylinder Electronic Distributor
Chevy 235-261 Six Cylinder Electronic Distributor
Chevy 235-261 Six Cylinder Electronic Distributor
Chevy 235-261 Six Cylinder Electronic Distributor
Chevy 235-261 Six Cylinder Electronic Distributor
Chevy 235-261 Six Cylinder Electronic Distributor

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

  •  Billet 6061-T6 aluminum housing
  •  Hardened steel shaft
  •  Sealed ball bearing & sintered busing
  •  Extremely accurate magnetic pickup
  •  Mechanical advance only (no vacuum advance)
  •  Comes with drive gear installed

This is a "ready to run" distributor. It does not require a multi spark box.

Use coil number 447-45001 (1.5 OHM). If using with a lower resistance coil than 1.5 OHM, you must use a ballast resistor to achieve the 1.5 OHM rating.



Notes

Wiring:

  • Red: 12 volts positive
  • Brown: Ground
  • Green: To coil negative

Customer Reviews

Rated 5 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
1
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

HiCarbs
Maiden Rock, WI 54750, USA

Fantastic distributor

November 24, 2012
Clean, easy install. Performs as advertised. Can't wait to get it on the street and see how it performs under load.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

3 questions : 3 answers

1 answers

Is this an HEI distributor? Hi, is this an HEI distributor with the coil built in or not? I'm confused, it says ready to run and then it is recommending a coil. And, I assume the green wire is for the tach, so then I assume the coil is built in?

buckroseau
mn
March 01, 2015

Is this an HEI distributor? Hi, is this an HEI distributor with the coil built in or not? I'm confused, it says ready to run and then it is recommending a coil. And, I assume the green wire is for the tach, so then I assume the coil is built in?

Answers

March 02, 2015
EricM
By ready to run it means this electronic distributor does not require an ignition box. You will need a separate coil for this distributor. The tach wire from the distributor will need to be used instead of connecting your tach to the coil.
1 answers

Will it fit 56 chevy 235 six I have a 1950 GMC truck with 56 chevy six engine which needs a new distributor, coil and electronic ignition

Foyth
Mesa, AZ, USA
December 31, 2014

Will it fit 56 chevy 235 six I have a 1950 GMC truck with 56 chevy six engine which needs a new distributor, coil and electronic ignition

Answers

December 31, 2014
EricM
Yes this distributor will fit your 1956 235 six cylinder Chevy engine. You will need a coil such as 44745001 to use with this electronic distributor. This is a ready to run type of distributor and all of the electronics are inside the distributor - no ignition box is required.
1 answers

Hi i have a 235ci but will it fit a '58?

FleetlineGeoff
November 27, 2014

Hi i have a 235ci but will it fit a '58?

Answers

November 28, 2014
EricM
This distributor will fit the inline 235 Cubic inch engines all the way to when they were discontinued in 1963 when the 230 and 250 engines came out. We also recommend the suggested coil number 44745001 for correct ohm resistance.
