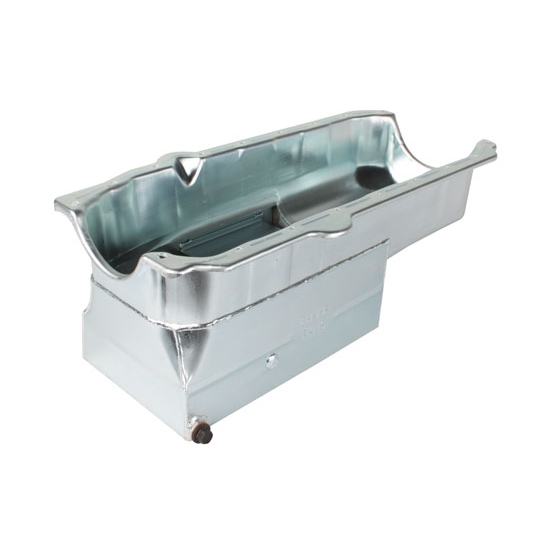

Champ Pans CP50 1957-79 Small Block Chevy Race Oil Pan, LH Dipstick

SAME DAY SHIPPING! Order within the next 12 hours 49 minutes and receive same day shipping

Specs
Material Type:
Steel
Sold in Quantity:
Each
Finish:
Zinc
Liquid Measurement:
7
Depth:
7.75
Dipstick Location:
Driver Side
Inside Width:
7.75
Inside Length:
12.00
MFG. Part #:
CP50
Oil Inspection Plug:
No
Pan Style:
2-Piece Rear Main
Garage Sale:
No
Sump Style:
Wet Sump
Champ Pans CP50 1957-79 Small Block Chevy Race Oil Pan, LH Dipstick
Champ Pans CP50 1957-79 Small Block Chevy Race Oil Pan, LH Dipstick
Champ Pans CP50 1957-79 Small Block Chevy Race Oil Pan, LH Dipstick

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

These small block Chevy oil pans work great for street, strip, road racing, and circle tracks. They feature a 7-3/4" deep pan with one large trap door, one crank scraper and two runners. The oil capacity is 7 quarts with a filter attached. Will work with stock size starters.

Specs

  • Dimensions: 7-3/4" deep x 7-3/4" wide x 12" long
  • Rear Sump: 8" deep x 12" long
  • Front Portion: 4-1/2" deep x 9" long

Customer Reviews

Rated 5 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
1
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Fast S-10
Verified Purchaser
pennsauken nj
Product Rating

Great Oil Pan

June 07, 2012
I found Speedway thru a friend... and Never looked back....Great parts inventory and ALL at a fair price...
Pros:
  • Increases Power
  • Easy To Install
  • Improves Engine Efficiency
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1
91015137

Product Q&A

2 questions : 2 answers

1 answers

what oil pump screen works with this pan?

modman
June 26, 2013

what oil pump screen works with this pan?

Answers

June 27, 2013
Jason
If using a 5/8" highvolume pump we offer oil pump pickup part #91715133 for this small block chevy race pan. If using a 3/4" high volume pump we offer pickup part #91715134
1 answers

will this pan fit a small block 400 chevy that is stroked

April 16, 2011

will this pan fit a small block 400 chevy that is stroked

Answers

April 19, 2011
Eric
This pan will work fine with a stock 400 using a stroke of 3.75” but I cannot confirm or deny if it will work for larger strokes. It is possible that it will fit, however with all the combinations and especially the different connecting rod and rod bolt designs it’s hard to tell before you try it.
Page 1 of 1

You may also be interested in:

Champ Pans CP50R 1979-86 Small Block Chevy Race Oil Pan, RH Dipstick
(Part #91015138)


These small block Chevy oil pans work great for street, strip, road racing, and circle tracks. They feature a 7-3/4" deep pan with one large trap door, one crank scraper and two runners. The oil capacity is 7 quarts with a filter attached. Will work with stock size starters.

Champ Pans 50SB Small Block Chevy High Volume 5/8 Inch Oil Pump Pickup
(Part #91715133)
                        These 5/8" high volume oil pickups are designed for use with 7-3/4" deep small block Chevy race oil pans and the Melling M55HV oil pump.

Oil Pan Gskt Set SBC 57-74
(Part #550190)
                        Precision die cut for a perfect fit. Gas and oil resistant, won't rip or shred.

Speedway Small Block Chevy Oil Pan Gasket, 1975-1985 One-Piece
(Part #91010223)


Small Block Chevy oil pan gasket by Speedway.

  • Left Hand side ('55-'79) and Right Hand side ('80-'85) dipstick
  • For 2-piece rear main seal blocks
  • Rubber gasket w/ steel bushings
  • '75-'85 w/ thick front seal
