Carrera 2254A Street Rod Rear Coil Over Shock Kit, 115 lbs. Rate

Specs
Material Type:
Steel
Sold in Quantity:
Kit
Finish:
Chrome
Inside Diameter:
2.625
Extended Length:
14.625
Compressed Length:
9.75
Mounted Length:
12.375
Spring Rate:
115
Body Diameter:
1.63
Upper Shock Mount:
5/8 Inch Eyelet
Lower Shock Mount:
5/8 Inch Eyelet
Shock Body Material:
Steel
Coil-Over Compatible:
Yes
Garage Sale:
No
Carrera 2254A Street Rod Rear Coil Over Shock Kit, 115 lbs. Rate

Click image to enlarge

Please NOTE the following about this product:

  • This item is sold as a kit.

Details

Reviews

Q & A

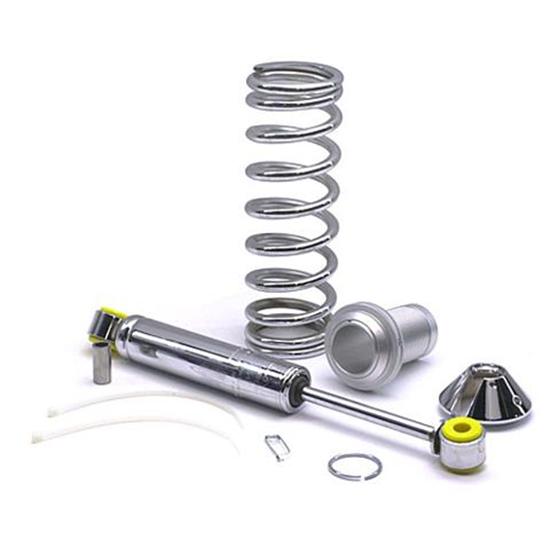

What's in the Box

Carrera Street Rod Series coilovers are ideal for use with rear suspensions. Features beautifully chrome plated shocks and springs. The non-adjustable, gas pressurized and radial tuned shocks provide an excellent ride.

Each kit includes:

  • (1) Chrome 1.63" steel body shock
  • (1) Chrome 10" spring
  • (1) Polished aluminum spring mounting kit
  • Mounted Length:  12-3/8"
  • Compressed Length:  9-3/4"
  • Extended Length:  14-5/8"
  • Shock accepts 7/16" or 5/8" bolt for top bushing and 5/8" bolt in bottom bushing

Coil-Over Mounting Guide (GIF)

Carrera Spring Rate Chart (GIF)

Coil-Over Illustration (Link)

Item Details

10" tall, 115 lb. spring

Customer Reviews

Rated 4.5 out of 5 by 2 reviewers.
RATING BREAKDOWN
2 reviews
5 Stars
1
4 Stars
1
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

ratbuild
Verified Purchaser
Georgetown, CA, USA
Product Rating

very impressive product!

March 08, 2015
These coilovers glow like jewels in the rear of my bare steel custom frame. The triangulated link bars are black, the axle is from a junkyard explorer so nothing is close to polished. Thanks for the accent! alan
Pros:
  • finish is super.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Henry1
Manitoba Canada
Product Rating

Looks good, instals easy.

September 29, 2013
I installed these shocks in the rear of my 29 street rod. They were easy to install requiring minimal bracket construction and welding. Good performance and good value for the price.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1
2552254A

Product Q&A

6 questions : 6 answers

1 answers

What spring rate to use. What springs should rate I use on a 1940 Ford truck with a Jag IRS (4 springs)

Kwasy
Okotoks, AB, Canada
February 28, 2014

What spring rate to use. What springs should rate I use on a 1940 Ford truck with a Jag IRS (4 springs)

Answers

March 03, 2014
EricM
Coil overs on the Jag rear ends has always been a big question mark. With the four shocks and springs and unknown weight of your 40 pickup in many cases it is a trial and error basis. If you are setting at about 2800 pounds vehicle weight Carrera suggests a 200 weight spring on all 4. If heavier such as 3100 pounds the rate goes up to 225# and so on. If for some reason you have an exceptionally heavy 40 in the 3650 range it may take up to a 275 spring and on the other end of the scale of course the rate would go down. Front to rear wight distribution also plays an important role and the pickups usually are on the lighter side in the rear.
1 answers

What is the best way to assemble these?

zfolse
April 28, 2013

What is the best way to assemble these?

Answers

April 30, 2013
Jason
Carrera coil over shock kit number 2552254A assembles simply with lighter weight springs but as the spring rate increases in some cases a spring compressor may be required. First the snap ring needs to be installed by sliding up from the bottom and taking care not to over extend the snap ring. Second slide the threaded sleeve dowon onto the snap ring with the chamfered non threaded portion seating down on the ring. Third turn the adjuster ring all the way to the bottom and slip the spring on till it seats on the adjuster ring. Compress the spring as needed and slip the upper cone onto the spring via the slot and release spring so that it seats on the upper shoulder under the shock eye mount. Although normally not needed for street rod use the safety pin can be installed on the upper cone and also the zip ties securing the spring to the cone. These are for extreme duty such as sand rails, etc. Install the shock on the car and adjust the adjuster ring ¼ to 1/3 up the threads and let the vehicle weight down on the shock. Bounce the suspension a few times and then check mount length of the shock. With all the weight on the shock as if the car was ready to go down the road the mount length needs to be 12 3/8 to 12 ½” eye to eye. Adjustment can be made on the adjuster ring to achieve this. If over half way up the threads the spring rate is too light and if towards the bottom of the threads the spring rate is too heavy and changing spring rates is suggested.
1 answers

what is the outside diameter measurement of the spring?

August 20, 2011

what is the outside diameter measurement of the spring?

Answers

August 22, 2011
Jason
This is a 115 pound spring that is 3-1/4" od
1 answers

i purchased the rear coil over spring kit. in the kit came a pin like clip and 2 zip ties, what are they for?

rau
gilbert az
March 18, 2011

i purchased the rear coil over spring kit. in the kit came a pin like clip and 2 zip ties, what are they for?

Answers

March 23, 2011
Michael
The pin goes in the top spring retainer. There are two small holes on each side of the slot at the top where the spring retainer fits over the shock rod. The cable ties are in case the pin comes out. Just go around one coil of the spring and through the eye of the pin.
1 answers

can I use this on a 52 chev truck ?

long hair
san jose ca
September 04, 2011

can I use this on a 52 chev truck ?

Answers

September 07, 2011
John
Carrera street rod coil overs can be used on almost any application and are available with numerous spring rates. Mount length is the most critical concern and is 123/8 to 12 ½” which allows 50% of the stroke available for compression during suspension travel. Adjuster ring should be ¼ to 3/8 up the threaded portion to achieve mount length and is achieved by choosing the correct spring rate.
1 answers

is a 2254 at 20% good enought for a 31 ford coupe

January 11, 2011

is a 2254 at 20% good enought for a 31 ford coupe

Answers

February 10, 2011
Shane
To determine the correct spring rate. First you need to know a couple of things. · Mounted Length: 12-3/8" · Compressed Length: 9-3/4" · Extended Length: 14-5/8" · Engine type and size · Fenders or not It is best to call Speedway Motors and speak with one of our street rod techs for picking spring rates.
Page 1 of 1
