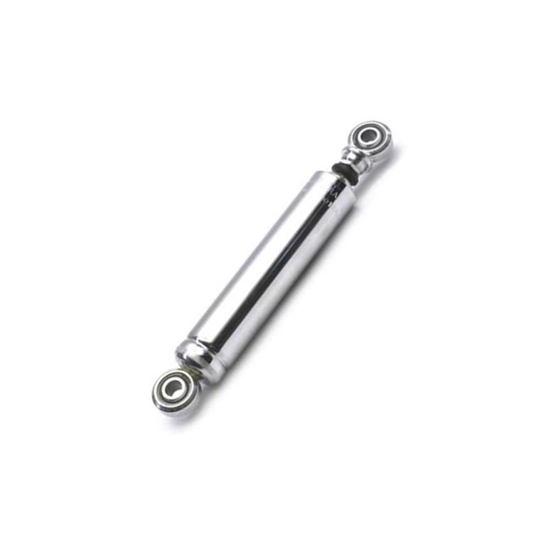

Carrera 7535 Small Body Gas Cell Hyper Shock-3 In Stroke, Comp 5/Reb 5

Specs
Sold in Quantity:
Each
Finish:
Chrome
Shock Type:
Twin Tube
Upper Shock Mount:
1/2 Inch Eyelet
Lower Shock Mount:
1/2 Inch Eyelet
Shock Body Material:
Steel
Bushing Material:
Steel
Shock Stroke:
3
Shock Body Type:
Smooth
Shock Body Size:
Small Body
MFG. Part #:
7535
Valve Positions:
5 compression - 5 rebound
Hardware Included:
No
Coil-Over Compatible:
Yes
Extended Length:
11.53
Compressed Length:
8.43
Shock Eyelet Width:
.625
Body Diameter:
1.63
Bolt Hole Circle:
.500
Carrera 7535 Small Body Gas Cell Hyper Shock-3 In Stroke, Comp 5/Reb 5
Carrera 7535 Small Body Gas Cell Hyper Shock-3 In Stroke, Comp 5/Reb 5
Carrera 7535 Small Body Gas Cell Hyper Shock-3 In Stroke, Comp 5/Reb 5
Carrera 7535 Small Body Gas Cell Hyper Shock-3 In Stroke, Comp 5/Reb 5

Click image to enlarge

Details

Reviews (1)

Q & A (4)

What's in the Box

Info

A gas cell Hypershock™ with a chrome plated steel body. This shock will not fade no matter how long the race. It can be run in any position, including upside down. This is desireable because it reduces unsprung weight by having only the shaft move with the suspension (instead of the shaft standing still and the whole shock body moving).

Shocks now include 1/2" bearing ends. Accepts coil-over mount kits shown on this page.

Hyper Shock Application Chart (GIF)

  • QA1 75 Series (Previously Carrera Shocks 32/33 Series)
  • 1-3/16" Piston
  • 1/2" Hard Chrome Plated, Polished Piston Rod
  • Twin Tube Design
  • 1-5/8" O.D. Chrome Plated Steel Body
  • Can Be Run Upside Down
  • 1/2" bearing ends

Coil-Over Illustration (GIF)



Customer Reviews

Rated 5 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
1
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

TN Turtle back T
Verified Purchaser
Verified Reviewer
Burns, TN

Good Quality Part

July 15, 2015
Wish I could have ordered with the 5/8" bearing ends rather than having to order seperately.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

4 questions : 4 answers

1 answers

Does this shock have 5/8 I.D. ? Wanting to use it with this item: http://www.speedwaymotors.com/1948-52-Ford-F1-Forged-Upper-Shock-Mounts-6-1-2-Inch,33278.html For my T-Bucket

Keith
Puyallup, WA
May 19, 2015

Does this shock have 5/8 I.D. ? Wanting to use it with this item: http://www.speedwaymotors.com/1948-52-Ford-F1-Forged-Upper-Shock-Mounts-6-1-2-Inch,33278.html For my T-Bucket

Answers

May 20, 2015
Zach
Expert
These shocks have 1/2" eyes on both ends
1 answers

Do they measure this shock at center of eye or end to end?

Exlaxracer
Wichita
July 27, 2015

Do they measure this shock at center of eye or end to end?

Answers

July 29, 2015
Zach
Expert
These are measured eye to eye
1 answers

Do they measure this shock at center of eye or end to end?

Exlaxracer
Wichita
July 28, 2015

Do they measure this shock at center of eye or end to end?

Answers

July 29, 2015
Zach
Expert
These are measured eye to eye
1 answers

Is the top Eye Removable?

subietech
Bend, Oregeon
November 19, 2015

Is the top Eye Removable?

Answers

November 24, 2015
Eric
Expert
The heim end on the shaft is removable and has a jam nut to retain in place when in use. The eyelet on the body end is welded on but the spherical bearing could be removed and replaced with bushings 2551867A.
