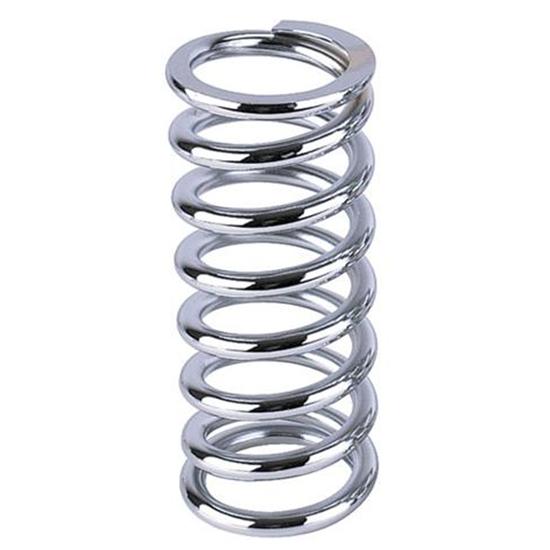

QA1 Coil-Over Springs, 2-1/2 I.D., 8 Inch

Specs
Material Type:
Steel
Sold in Quantity:
Each
Finish:
Chrome
Coil Spring End (A):
Square
Coil Spring End (B):
Square
Progressive Rate Spring:
No
Inside Diameter:
2.50
Free Height:
8.00
Spring Rate:
-
QA1 Coil-Over Springs, 2-1/2 I.D., 8 Inch

Click image to enlarge

Details

Reviews (1)

Q & A (2)

What's in the Box

Info

QA1 coil-over racing springs are guaranteed to remain within 2% of rate and length - forever! Springs are coil wound of chrome-silicon wire, the strongest spring steel known. This gives more travel and lighter weight. Heat treated and chrome plated.

Available in a variety of rates.

QA1 Spring Rate Chart

Coil-Over Mounting Guide (GIF)

Customer Reviews

Rated 5 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
1
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Medicine Man
Verified Purchaser
Verified Reviewer
Fayetteville, NC

These coils add a strikingly beautiful effect to any car

April 15, 2016
Use to raise my 1954 MG-TD front end Perfect fit Beautiful finish
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

2 questions : 2 answers

1 answers

How do I determine the spring rate that is right for my vehical? I found a section in the current street rod catalog I recieved from SpeedWay Motors how ever I am unsure if the weights/rates are per spring? The vehical I am working on has a single coil ov

Mike S.
Manchester NH
June 15, 2011

How do I determine the spring rate that is right for my vehical? I found a section in the current street rod catalog I recieved from SpeedWay Motors how ever I am unsure if the weights/rates are per spring? The vehical I am working on has a single coil ov

Answers

June 16, 2011
John
Coil over spring rate is calculated from the vehicle weight and the assumption that the vehicle will have two coil overs on the rear and two on the front if so engineered. The rates in our catalog relate to this formula. Thus a T bucket for example weighing in at 1700 pounds with even weight distribution front to rear calculates in at a 140 spring on each side in the rear and the maximum lean in of the shock at 20 Degrees. This is an average and in many cases individual desires or drive train variances dictate either a heavier or softer spring. If we were somehow to support the entire rear weight of same car with one spring the spring rate would need to be doubled and from an engineering standpoint there could be some variance. On spring rate there is nothing carved in stone. Horsepower, weight transfer during acceleration or braking, and particular driving habits all have an influence on spring rate to use.
1 answers

What is the best spring rate for a t-bucket with carrera's on the back?

Dave
Washington
May 19, 2015

What is the best spring rate for a t-bucket with carrera's on the back?

Answers

May 20, 2015
Zach
Expert
There are several variables that come into play when picking springs, including the angle the coil over is at, the installed length, and the weight of the back of the vehicle. Please have that information available and give us a call and ask for one the Rod Techs, 800-979-0122
Page 1 of 1
