Add to Cart
$368.99
COMP Cams K12-560-4 Nitrous HP Hydraulic Camshaft Kit, Chevy S/B
COMP Cams K12-560-4 Nitrous HP Hydraulic Camshaft Kit, Chevy S/B

COMP Cams K12-560-4 Nitrous HP Hydraulic Camshaft Kit, Chevy S/B

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
COMP Cams K12-560-4 Nitrous HP Hydraulic Camshaft Kit, Chevy S/B
Image Gallery
COMP Cams K12-560-4 Nitrous HP Hydraulic Camshaft Kit, Chevy S/B
COMP Cams K12-560-4 Nitrous HP Hydraulic Camshaft Kit, Chevy S/B
Zoomed In Image
We estimate this item will ship on or before October 6th.
Part # 282K125604
$368.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 10 business days for COMP Cams to ship this item.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Camshaft Type:
Hydraulic Flat Tappet
Intake Duration:
268
Exhaust Duration:
286
RPM Range:
2000 to 6200
Lobe Separation:
113 °
Intake Duration @ .050" Lift:
224
Exhaust Duration @ .050" Lift:
236
GTIN Code:
036584024200
MFG. Part #:
K12-560-4
Grind Number:
CS NX268H-13
Intake Valve Lift w/ Rocker Arm Ratio:
0.477"
Exhaust Valve Lift w/ Rocker Arm Ratio:
0.49"
Computer-Controlled Compatible:
No
Valve Springs Required:
No
Valve Spring Included:
Yes
Lifter Type:
Hydraulic Flat Tappet
Lifters Included:
Yes
Retainers Included:
Yes
Locks Included:
Yes
Valve Stem Seals Included:
Yes
Timing Chain and Gears Included:
Yes
Assembly Lubricant Included:
Yes
Pushrods Included:
No
Rocker Arms Included:
No
Gaskets Included:
No
Sold in Quantity:
Kit

Info

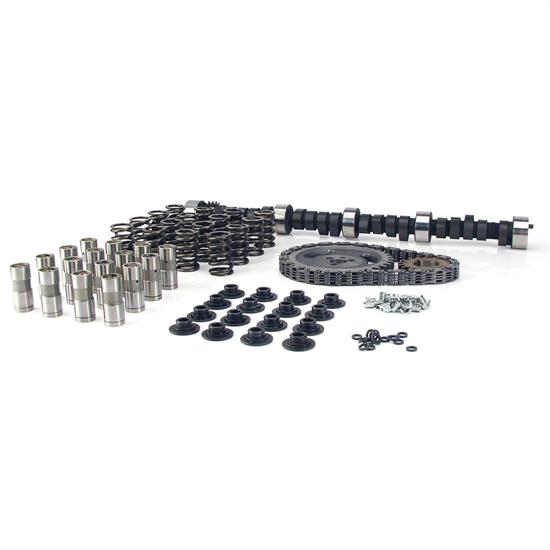

K12-560-4 - Camshaft Kit, CS NX268H-13.

Chevrolet 262-400 c.i. 8 cyl. 1958-1998. Street Machines with 125+ HP kit, needs 2200+ stall, gears, choppy idle. All COMP Cams Camshafts are manufactured to the strictest tolerances. Rigorously tested and checked for quality.

  • Wider lobe separation & added exhaust duration from base XE series help shift the power to higher RPM to allow use in nitrous applications
  • Early exhaust opening helps scavenge the extra spent gasses from nitrous or forced induction
  • Better time slips for nitrous passes at the strip

Application

1958-98 Chevy 262-400
Some parts are not legal for use in California or other states with similar laws/regulations
