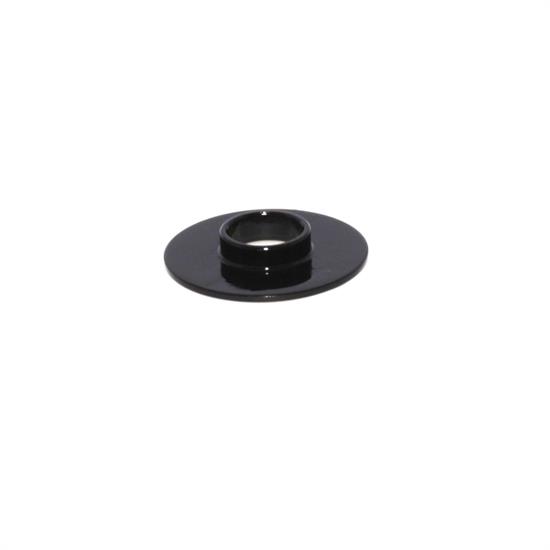

COMP Cams 4774-1 Valve Spring Locator, 0.570 ID, 1.625 OD, Each
COMP Cams 4774-1 Valve Spring Locator, 0.570 ID, 1.625 OD, Each

COMP Cams 4774-1 Valve Spring Locator, 0.570 ID, 1.625 OD, Each

0 Reviews | 0 Answered Questions
Factory Shipped
COMP Cams 4774-1 Valve Spring Locator, 0.570 ID, 1.625 OD, Each
Image Gallery
COMP Cams 4774-1 Valve Spring Locator, 0.570 ID, 1.625 OD, Each
COMP Cams 4774-1 Valve Spring Locator, 0.570 ID, 1.625 OD, Each
Zoomed In Image
COMP Cams estimates this item will ship on or before August 22nd.
Part # 28247741
Save 40%
$2.99
$4.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 2 business days for COMP Cams to ship this item.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

MFG. Part #:
4774-1
Inside Diameter:
0.57"
Outside Diameter:
1.625"
Material Type:
Steel
Locating Shoulder Type:
Inside
Overall Thickness:
0.06"
Sold in Quantity:
Each
GTIN Code:
036584391401
Inner Spring I.D.:
0.765"

Info

4774-1 - ID Spring Seat, 1.625 X 570 X 765.

The old standard shims will not hold up to the extreme spring pressures and high RPM in today’s race engines. COMP Cams offers a simple but effective solution to this problem. These Valve Spring Locators provide a thin, hardened steel alloy seat that will not only protect the head and shim, but also locate and hold the spring in place. Previously, this part has been available only in a cup form with the retaining portion being on the outside of the part. This required that the head be machined a great deal to accept this cup so COMP now offers an I.D. locator with the locating shoulder on the inside, as well as the spring cup.
