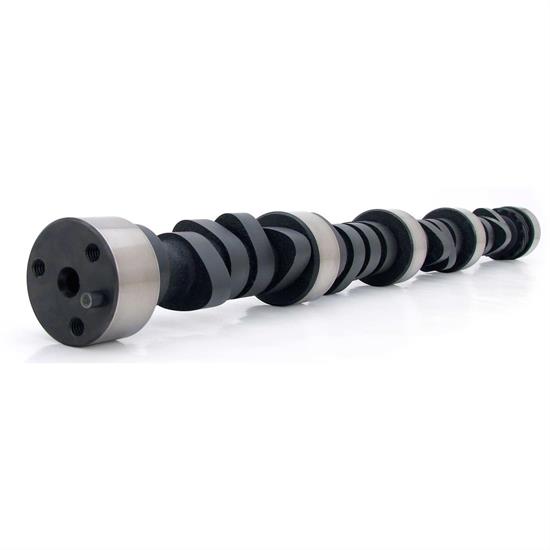

COMP Cams 12-254-20 Xtreme Energy Hydraulic Camshaft, Chevy S/B
COMP Cams 12-254-20 Xtreme Energy Hydraulic Camshaft, Chevy S/B

COMP Cams 12-254-20 Xtreme Energy Hydraulic Camshaft, Chevy S/B

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
COMP Cams 12-254-20 Xtreme Energy Hydraulic Camshaft, Chevy S/B
Image Gallery
COMP Cams 12-254-20 Xtreme Energy Hydraulic Camshaft, Chevy S/B
COMP Cams 12-254-20 Xtreme Energy Hydraulic Camshaft, Chevy S/B
Zoomed In Image
COMP Cams estimates this item will ship on or before August 23rd.
Part # 2821225420
$298.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 2 business days for COMP Cams to ship this item.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Camshaft Type:
Hydraulic Flat Tappet
RPM Range:
2800 to 7000
Intake Duration:
294
Exhaust Duration:
306
Lobe Separation:
110 °
Grind Number:
CS XE294H-10
Intake Duration @ .050" Lift:
250
Exhaust Duration @ .050" Lift:
256
Intake Valve Lift w/ Rocker Arm Ratio:
0.519"
Exhaust Valve Lift w/ Rocker Arm Ratio:
0.523"
MFG. Part #:
12-254-20
GTIN Code:
036584177913
Computer-Controlled Compatible:
No
Valve Springs Required:
Yes
Sold in Quantity:
Each

Info

COMP Cams Xtreme Energy XE294H-10 Nitrided Hydraulic Camshaft for Small Block Chevy.

All COMP Cams Camshafts are manufactured to the strictest tolerances. Rigorously tested and checked for quality.

  • Quicker opening lobe profiles deliver increased responsiveness & more area under the lift curve
  • More vacuum allows an increase in duration for improved performance & assists power brakes
  • Excellent performance in street carbureted applications
  • Best performance with aftermarket intake manifolds, headers, lower gear ratios, etc.
