Add to Cart
$296.99

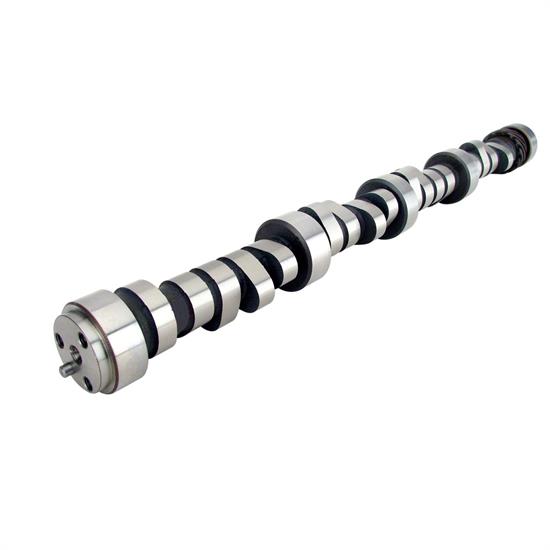

COMP Cams 01-456-8 Xtreme Marine Hyd. Roller Camshaft, Chevy 454/502
COMP Cams 01-456-8 Xtreme Marine Hyd. Roller Camshaft, Chevy 454/502

COMP Cams 01-456-8 Xtreme Marine Hyd. Roller Camshaft, Chevy 454/502

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
COMP Cams 01-456-8 Xtreme Marine Hyd. Roller Camshaft, Chevy 454/502
Image Gallery
COMP Cams 01-456-8 Xtreme Marine Hyd. Roller Camshaft, Chevy 454/502
COMP Cams 01-456-8 Xtreme Marine Hyd. Roller Camshaft, Chevy 454/502
Zoomed In Image
COMP Cams estimates this item will ship on or before August 22nd.
Part # 282014568
$296.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 2 business days for COMP Cams to ship this item.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Camshaft Type:
Hydraulic Roller Tappet
RPM Range:
2800 to 6200
Intake Duration:
296
Exhaust Duration:
302
Lobe Separation:
112 °
Grind Number:
CBVI XM296HR-12
Intake Duration @ .050" Lift:
242
Exhaust Duration @ .050" Lift:
248
Intake Valve Lift w/ Rocker Arm Ratio:
0.566"
Exhaust Valve Lift w/ Rocker Arm Ratio:
0.566"
MFG. Part #:
01-456-8
GTIN Code:
036584082361
Computer-Controlled Compatible:
No
Valve Springs Required:
Yes
Sold in Quantity:
Each

Info

COMP Cams Xtreme Marine XM296HR-12 Camshaft for Gen VI Big Block Chevy.

Xtreme Marine Hydraulic Roller Camshafts. Hydraulic Roller-Good for jet boat with A or B impeller in Bracket Racing or performance use. Hydraulic Roller - Xtreme Marine: Good for jet boat with A or B impeller in bracket racing or performance use.

  • Extremely wide powerband helps get boat on plane while making maximum horsepower
  • Work against exhaust systems with restrictive back pressure
  • Power enhancement helps maintain top-end speed for longer distances
  • Intended for applications where low idle speeds are required

Application

1996-99 Chevy 454
