Braille B3121C Carbon Fiber Battery, 550 CCA

Specs
Sold in Quantity:
Each
Battery Usage:
Starting
Battery Terminals:
Top & Side
MFG. Part #:
B3121C
Cranking Amps @ 0 deg. F:
550
Cranking Amps @ 32 deg. F:
742
Battery Reserve Capacity:
75 minutes
Overall Height:
6.80
Overall Width:
5.20
Overall Length:
6.60
Weight:
21.00
Voltage:
12

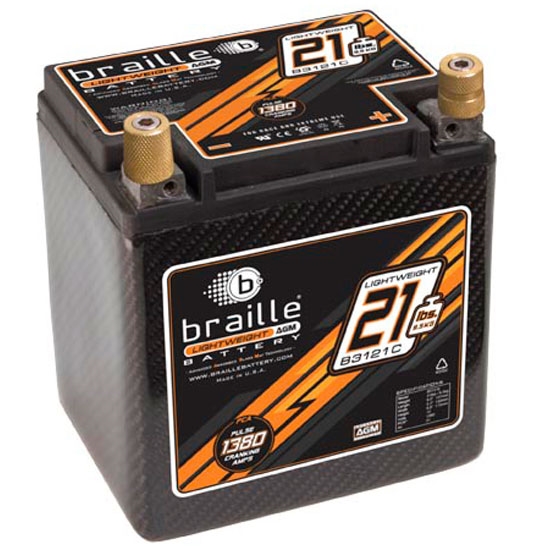

Braille B3121C Carbon Fiber Battery, 550 CCA

Click image to enlarge

Please note the following about this product:

  • Ground Shipping Only - Can't Ship Air.

Details

Reviews (1)

Q & A (1)

What's in the Box

Info

Face it guys, there are times that size and weight do make a difference. The Braille AGM battery is a no-spill, no-corrosion design and its small size and weight allows you to put it where you need to. The carbon fiber case is the ultimate for protecting the internals from heat and abuse.

  • Carbon fiber case insulates battery from severe engine heat
  • Provides longer service life with lighter weight
  • No corrosion, no spill, no maitenance AGM design
  • Dual terminal design allows flexible mounting options
  • Heli-coil stainless steel threads allow higher bolt torque for a secure cable connection under extreme vibration
  • Comes fully charged and ready to install

Item Details

6.6" x 5.2" x 6.8", 21 lbs.

Specs

  • BCI Group:  Useable for all Group Sizes
  • Length:  6.6"
  • Width:  5.2"
  • Height (without posts):  6.8"
  • Minimum Weight:  21 lbs.
  • Voltage:  12 Volts
  • Full Charge Voltage:  13.8 Volts
  • Pulse Cranking Amps:  1380
  • Cranking Amps:  742
  • Cold Cranking Amps:  550
  • Amp Hour - Electrical Capacity:  31 amp hr
  • Reserve Capacity:  1 hr 15 mins

Customer Reviews

Rated 5 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
1
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Lew
Verified Purchaser
Rohnert Park, CA

Perfect sized battery

October 28, 2011
Very pleased with size, weight and capability of battery. Not many places to mount a normal size battery in a Model A street rod. Size enabled me to choose between several mounting locations. The one thing that did not please me was the manufacture date of the battery-it was 1 1/2 years old when I received it.
Pros:
  • Small lightweight
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

1 questions : 1 answers

1 answers

Can you tell the size of the battery and can the battery be mounted on its side

August 26, 2011

Can you tell the size of the battery and can the battery be mounted on its side

Answers

August 26, 2011
Jason
This is a sealed AGM battery and can be mounted in any direction. Speedway does not offer a side mount.
