Braided Pressure Gauge Line Kit

SAME DAY SHIPPING! Most orders ship within 24 hours.

Braided Pressure Gauge Line Kit

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

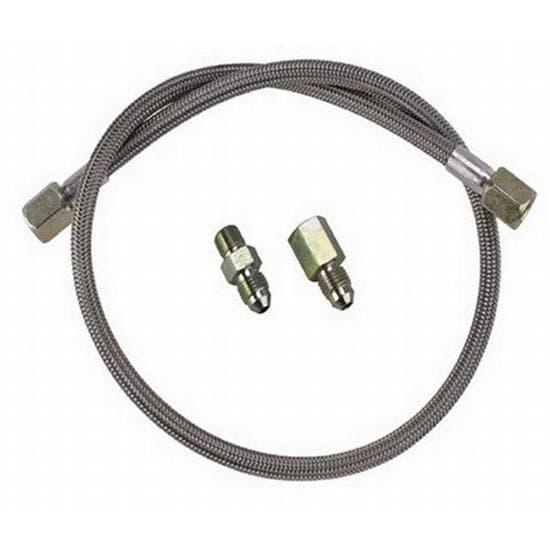

This braided pressure gauge line kit makes it a snap to hook up your pressure gauge. Can be used with oil, water, fuel or air. Includes AN 4 braided line, AN4 to 1/8" NPT male and AN4 to 1/8" NPT female. Choose from lengths of 25", 36" or 48".

Item Details

AN4 to 1/8" NPT male and AN4 to 1/8" NPT female.

Customer Reviews

Rated 4.6 out of 5 by 18 reviewers.
RATING BREAKDOWN
18 reviews
5 Stars
12
4 Stars
5
3 Stars
1
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Toxic SS
Verified Purchaser
Verified Reviewer
Lincoln,Ne

I would buy product again

June 23, 2015
Would recommend to others,it fit just like it came with the vehicle.
Pros:
  • Used For Fuel Pressure
  • Was In Stock
  • Fit like it should
  • Product Is Well Made
Cons:
  • None
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Bob
Verified Purchaser
Verified Reviewer
Apalachin, New York

Just what I needed

May 27, 2015
I was impressed with the quality of the product. I needed to relocate an oil pressure sending unit and this kit made it a snap.
Pros:
  • Easy To Use
  • Kit Was Complete
  • High quality material
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Dave
Verified Purchaser
Verified Reviewer
Apache Junction AZ.

Great quality product with great price

May 26, 2015
It was exactly what I ordered, considerably less expensive than Summit.
Pros:
  • Packaged Good
  • quick shipping
  • Easy To Use
  • excellent service
Cons:
  • None
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Scart340
Verified Purchaser

Excellent quality

November 01, 2014
Everything is included with this kit. All the fittings to hook it up. No separate fittings to buy.
Pros:
  • all fittings included nothing else to buy.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

m3bs
Verified Purchaser

Thumbs Up!

October 12, 2014
Good product, reasonably priced compared to others on the market. Just what I needed to relocate my oil pressure sensor away from the vibration of the engine. Fast delivery.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

topdog
Verified Purchaser
Michigan

Great replacement for the old plastic li

November 02, 2013
I was putting in a new engine, so it was a great time to replace the old plastic line that had failed in the past. Not only is it a more reliable part, it also looks great under the hood and under the dash. Fittings supplied with the kit matched up to the oil pressure gauge and the threaded hole in the back of the SBC.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Whatsthedeal
Verified Purchaser
Idaho, USA

Requested review

August 10, 2013
It's a little spendy for use as an oil and vacuum line, but it beats plastic and looks better. It's also, better than making your own.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Bruce T
Verified Purchaser
Landenberg, PA

Excellent kit

April 14, 2012
Thes guage hose kits work perfectly every time. They are priced right and the quality is great as well.
Pros:
  • Versatile
  • High-Performance
  • Easy To Use
  • Durable
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

The Hammer
Verified Purchaser
New Bern , NC

Great product

October 13, 2011
I used it as an oil pressure line to my gauge but would also serve as a great oil supply line to a turbo or supercharger
Pros:
  • High-Performance
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

dominoeflux
Verified Purchaser
miami, fl

great product, what i was looking for!

September 29, 2011
i use this to make a custom stainless steel clutch line from the clutch master cylinder to the clutch slave cylinder, product was the exact length i needed plus it also comes with the required adapters!
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 2

Product Q&A

3 questions : 7 answers

1 answers

will. this connect to my gauge Hi , just bought a mechanical auto meter oil pressure gauge and wanted to know if this will connect to my gauge using the fittings provided with the gauge and the ones that come with braided lines ?

ceez
Redondo Beach, CA, USA
October 28, 2014

will. this connect to my gauge Hi , just bought a mechanical auto meter oil pressure gauge and wanted to know if this will connect to my gauge using the fittings provided with the gauge and the ones that come with braided lines ?

Answers

October 28, 2014
EricM
Yes this braided line will connect to your oil pressure gauge with the female adapter fitting. An 1/8" NPT male adapter is supplied to connect to the engine as well.
4 answers

is some kind of sealant needed on fittings

tara
April 29, 2013

is some kind of sealant needed on fittings

Answers

November 03, 2013
topdog
Put sealant on the pipe thread into the block
August 11, 2013
Whatsthedeal
Do to it being an AN fitting, none would be required at the connection, you might want to put some where the fitting is mounted.
June 25, 2013
USMCord1
No sealant is needed as the ends are machined for a tight fit.
April 30, 2013
Jason
Screwing the fittings into the braided line, no sealant is needed or recommended. The 1/8" NPT side of fittings a teflon tape or plumbers paste sealant is recommended.
2 answers

Would this work well using it as an oil pressure line going into a GT3071R? Just wanted to see if this line would hold up if it was bolted into the turbo for the oil pressure line.

240sxgurl
Clearwater, FL, USA
November 12, 2012

Would this work well using it as an oil pressure line going into a GT3071R? Just wanted to see if this line would hold up if it was bolted into the turbo for the oil pressure line.

Answers

August 11, 2013
Whatsthedeal
I would not hessitate to try. It appears to be a solid fitting at the ends
November 13, 2012
Jason
This kit is commonly used for oil gauges and the braided line is rated at 2100 PSI maximum working pressure
Page 1 of 1
