Bolt-On Universal Shock-Headlight Mounts

Bolt-On Universal Shock-Headlight Mounts
Bolt-On Universal Shock-Headlight Mounts
Bolt-On Universal Shock-Headlight Mounts

Click image to enlarge

Please NOTE the following about this product:

  • This item is sold as a pair.

Details

Reviews

Q & A

What's in the Box

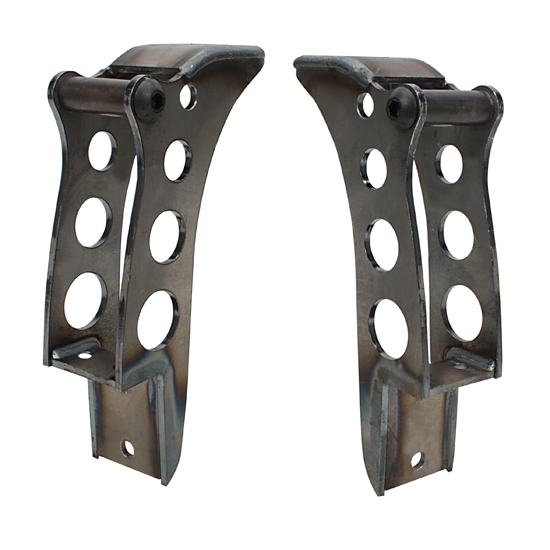

These plain steel headlight and shock mounts were designed  for our T-buckets, but they can be used for a variety of projects. Can be easily bolted onto the outside edge of your frame rail.
  • Mounts have 1/2" holes for Dietz style or other headlights
  • Has two different 1/2" hole locations for upper shock mounting
  • Measures 6" from the upper shock mount hole to the top of the frame rail
  • Provided in a plain steel finish

Customer Reviews

Rated 4 out of 5 by 2 reviewers.
RATING BREAKDOWN
2 reviews
5 Stars
1
4 Stars
0
3 Stars
1
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Cat Killers CC
Verified Purchaser
Riverside, Ca
Product Rating

Sweet Shock Mounts

February 03, 2012
They work awesome and look good.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

preacherman
Verified Purchaser
boyds tx
Product Rating

best of the styles available

November 12, 2011
Having an ideal about which shocks work with thisin discription would be really nice. I ended up at the local parts house searching shock boxes. Found some pretty blue ones I will have to paint.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1
91036004

Product Q&A

3 questions : 3 answers

1 answers

Will shocks fit between the legs of the mount? I would like to put a Short Shock between the legs of the mount. Will it fit? Thanks JEB

slick
July 07, 2013

Will shocks fit between the legs of the mount? I would like to put a Short Shock between the legs of the mount. Will it fit? Thanks JEB

Answers

July 09, 2013
Jason
Between the legs on part number 715150 or 715151 is 2.010 so most shocks would fit between the legs. Variation in shock eye width would make it necessary to space the shock as needed to keep it centered. The only hole that is on the mount that would accept a shock is the hole on the ear sticking out from the main body The other shock hole is too close to the top plate and modification to the mount would be required.
1 answers

Available in polished SS ? Could the shock holes be ground off and then repolished for headlights only ?

33Chuck
December 17, 2012

Available in polished SS ? Could the shock holes be ground off and then repolished for headlights only ?

Answers

December 18, 2012
Jason
Part #91636005 is the stainless version of this shock mount. This is a shock mount only. We do offer part #715151-SS that is a headlight/shock mount. Any modification would be upto end user judgement
1 answers

Hey THere How tall are these from the top of the frame ? Thanks

August 23, 2011

Hey THere How tall are these from the top of the frame ? Thanks

Answers

August 23, 2011
Jason
These measure 7-1/2" from top of frame rail to top of bracket. It is 6" from frame rail to shock mount hole
Page 1 of 1
