Bolt-On Radius Rod Bracket

Specs
Material Type:
Steel
Sold in Quantity:
Pair
Finish:
Painted
Degree of Taper:
7 degree
Bolt Hole Pattern:
2.25 x 2.00
Overall Height:
7.00
Overall Width:
3.50
Overall Thickness:
.25

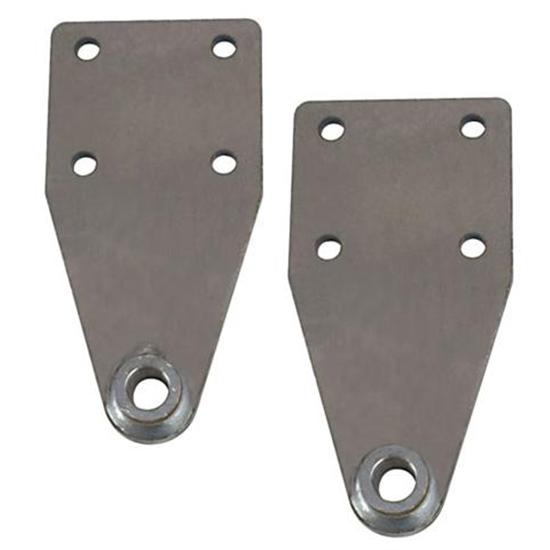

Bolt-On Radius Rod Bracket

Click image to enlarge

Please note the following about this product:

  • This item is sold as a pair.

Details

Reviews (19)

Q & A (3)

What's in the Box

Info

These brackets bolt to the side of 1928 and up Ford frame rails. They also extend further down for cars with a spring-over-axle, or moderately dropped front suspension. Holes have a 7 degree taper for Ford 11/16" tie rods.

Customer Reviews

Rated 4.7 out of 5 by 19 reviewers.
RATING BREAKDOWN
19 reviews
5 Stars
16
4 Stars
1
3 Stars
2
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Phil
Verified Purchaser
Verified Reviewer
Wilmington, CA

good strong hardware, easy to install, easy to fit on frame,

August 27, 2016
Installation not requiring welding is good option
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

O Carnut
Verified Purchaser
Verified Reviewer
RBC Al

I just keep buying and using these.

August 05, 2016
Simple bolt on with oschool looks.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Shag
Verified Purchaser
Verified Reviewer
Scottsdale, AZ

neat, clean and straight forward- can be located as needed

July 10, 2016
They allow the builder to locate them where needed/wanted---strong and look great. what more could a builder want?
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

El Guapo
Verified Purchaser
Verified Reviewer
Globe, AZ

Good and simple

June 04, 2016
These are good, simple pieces for those looking for some old school flavor. They are remarkably similar to the ones that I cut off my A-bone (built in the mid fifties) when I started stripping it. The holes are just enough oversize to allow about .015" wiggle for fine tuning the alignment. I would have preferred a bare/bead blasted finish as it would have saved me the step of stripping them to ensure that there weren't any compatibility issues with my finish.
Pros:
  • Quality
  • Traditional
  • Simple
Cons:
  • Finished
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

outlaw
Verified Purchaser
Verified Reviewer
Villa Park ILL

great product

January 19, 2016
heavy dutie. drill holes bolt and your on your way.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Model a milo
Verified Purchaser
Arcata , CA

It worked perfect will tell my friends about it

January 18, 2016
Use them on my 30 model a coupe Works fine had no cons on it
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

sissyboy
Verified Purchaser
Verified Reviewer
springville pa

Quick Solution

December 20, 2015
Bolts on after drilling to stock "C" channel frame. Description says extends further down but is the same as weld on brackets that go under frame. Good piece out of the box for a quick install.
Pros:
  • Bolt On Out Of The Box
Cons:
  • Misleading Description
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

28tudor
Verified Reviewer
springville pa

do not hang lower

December 04, 2015
Wanted to recreate the look that was on frame already with spring over axle. As stated in discription that this works,, and it does, however the other style hanges just as low under frame. Thought this was a little different, it is in only that can gets bolted on.
No, I would not recommend this product.
Full Size Image

Was this review helpful? 0 0

28tudor
Verified Reviewer
springville pa

DO NOT extend further down than other bracket

December 04, 2015
simple part needs no welding. Old school look. Does NOT hang lower than other style as implied in discription.
Pros:
  • Plain And Simple
Cons:
  • Worded As If Hangs Lower
No, I would not recommend this product.
Full Size Image

Was this review helpful? 0 0

s
Verified Purchaser
iowa

works great

October 13, 2015
works great
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 2

Product Q&A

3 questions : 3 answers

1 answers

Do these brackets come as a weld on bracket without the 4 drilled holes.

Stick
La Crescenta CA.
September 12, 2011

Do these brackets come as a weld on bracket without the 4 drilled holes.

Answers

September 13, 2011
John
These brackets are only available with the drilled 4 holes for bolt on applications but the brackets could be plug welded using the 4 drilled holes and then perimeter welded if desired. We also offer part number 91635052 in a strictly weld on version with brakes front and rear in the metal for additional strength. If a straight hole is desired we also offer brackets to accept ½” or 5/8” bolts when using heim ends.
1 answers

When I've drilled the brackets out for use with your 5/8 heim ends, does it matter which side of the bracket faces the outside of the frame??

olguy
Branch, Mi
June 25, 2011

When I've drilled the brackets out for use with your 5/8 heim ends, does it matter which side of the bracket faces the outside of the frame??

Answers

June 28, 2011
John
If these brackets are drilled straight through to accept a 5/8” bolt for heim end applications the customer has the option to mount them with the roid on the outside of the frame or on the inside. This may be beneficial to work with different frame widths to keep bind off the clevis at the front without having to bend or alter the welded on brackets on the axle. If using heim ends we recommend the use of a cone spacer between the heim and the bracket. The other option would simply be personal preference.
1 answers

Please give dimensions. i.e. center of radius rod hole to top of bracket.

Peter
United States
June 19, 2016

Please give dimensions. i.e. center of radius rod hole to top of bracket.

Answers

June 23, 2016
Zach
Expert
6 1/4"
