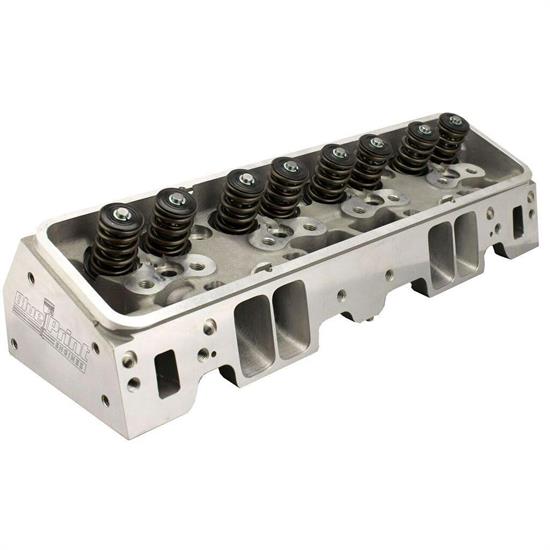

BluePrint PS8002 Muscle Series 210cc SB Chevy Head, Assembled
BluePrint PS8002 Muscle Series 210cc SB Chevy Head, Assembled

BluePrint PS8002 Muscle Series 210cc SB Chevy Head, Assembled

0 Reviews | 1 Answered Question
Factory Shipped
Ships FREE
BluePrint PS8002 Muscle Series 210cc SB Chevy Head, Assembled
Image Gallery
BluePrint PS8002 Muscle Series 210cc SB Chevy Head, Assembled
BluePrint PS8002 Muscle Series 210cc SB Chevy Head, Assembled
Zoomed In Image
We estimate this item will ship on or before November 2nd.
Part # 227PS8002
$969.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 30 business days for BluePrint Engines to ship this item.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Cylinder Head Style:
Assembled
Material Type:
Aluminum
Intake Runners:
210cc
Exhaust Runners:
74cc
Intake Valve Diameter:
2.08"
Exhaust Valve Diameter:
1.6"
Spark Plug Style:
Straight
Finish:
Natural
Sold in Quantity:
Each
MFG. Part #:
PS8002
CNC-Machined Combustion Chamber:
Yes
CNC- Machined Intake Runner:
Yes
CNC-Machined Exhause Runner:
Yes
Intake Port Location:
Standard
Exhaust Port Location:
Standard
Exhaust Port Shape:
Square
Intake Valves Included:
Yes
Exhaust Valves Included:
Yes
Valve Spring Included:
Yes
Maximum Lift:
0.575"
Outside Diameter of Outer Spring:
1.437"
Damper Spring Included:
Yes
Number of Springs Per Valve:
Dual
Retainers Included:
Yes
Retainer Material:
Chromoly Steel
Locks Included:
Yes
Lock Style:
7 Degree
Rocker Arm Studs Included:
Yes
Rocker Arms Included:
No
Rocker Arm Nuts Included:
No
Guideplates Included:
Yes
Valve Guide Material:
Manganese bronze
Valve Seats Machined:
Yes
Valve Seat Machine Style:
5 Angle
Valve Seat Material:
Chrome Nickel
Steam Holes Drilled:
No
Oiling Style:
Through Pushrod
Machined for O-Ring:
No
Heat Crossover:
No
Valve Stem Seals Included:
Yes
Accessory Bolt Holes Drilled:
Yes
Valve Guides Included:
Yes

Info

Get big power on a small budget with BluePrint Muscle Series cylinder heads! These lightweight aluminum heads bolt up to your small block Chevy and feature precision CNC-machined 210cc intake/66cc exhaust runners, 64cc combustion chambers, and 2.08" intake/1.60" exhaust valves. They're fully assembled with valve springs, retainers, locks, guideplates, studs, and seals.
  • Maximum output for less money!
  • Designed and produced by BluePrint Engines
  • CNC-machined combustion chambers and intake runners
  • Fully assembled with heavy duty components
  • Backed by our full 12-month limited warranty

Features

Intake

Intake Runner Volume (cc): 210cc
Intake Port Location: Standard
Intake Valves Included: Yes
Intake Valve Diameter (in): 2.08 in.
Machined Intake Runner: CNC-Yes

CFM Port Flow Average @ 28"
.100" - 115
.200" - 179
.300" - 224
.400" - 261
.500" - 288
.600" - 304

Exhaust

Runner Volume (cc): CNC- 66cc
Exhaust Valve Diameter (in): 1.600 in.
Exhaust Valves Included: Yes
Port Shape: Square-Port
Exhaust Port Location: Standard

CFM Port Flow Average @ 28"
.100" - 78
.200" - 117
.300" - 157
.400" - 192
.500" - 218
.600" - 232

Combustion Chamber

Combustion Chamber Volume (cc): 66cc
CNC-Machined Combustion Chamber: Yes

Valve Specs

Maximum Valve Lift (in): .575 in.
Intake Valve Angle: 23 Degrees
Exhaust Valve Angle: 23 Degrees
Valve Guides Included: Yes
Valve Guide Material: Manganese Bronze
Valve Seats Machined: Yes
Valve Seat Machine Style: 5-Angle
Valve Seat Material: Chrome Nickle
Valve Stem Seals Included: Yes
Valve Stem Seal Style: Viton® Fluoroelastomer

Springs

Valve Springs Included: Yes
Spring Pressure Open: 295 - 305 @ 1.225
Spring Pressure Closed: 115-125 @ 1.800
Outside Diameter of Outer Spring (in): 1.437 in.
Damper Spring Included: Yes
Number of Springs per Valve: Dual
Retainers Included: Yes
Retainer Material: Chromemoly Steel
Locks Included: Yes
Lock Style: 7 Degree

Pushrods

Pushrods Included: No

Guide Plates Included: Yes
Guide Plate Pushrod Size (in): 5/16 in.

Rocker Arms

Rocker Arm Studs Included: Yes
Rocker Arm Stud Size (in): 3/8 in.
Rocker Arms Included: No
Rocker Arm Nuts Included: No

Misc.

Head Style: Assembled

Cylinder Head Material: Aluminum
Cylinder Head Finish: Natural

Spark Plug Style: Straight – .750 Reach Gasket
Cover Mounting Style: Perimeter & Centert Bolt
Accessory Bolt Holes Drilled: Yes
Steam Holes Drilled: No
Oiling Style: Through Pushrod
Machined for O-Ring: No
Heat Crossover: No

Qty.

Sold individually

Some parts are not legal for use in California or other states with similar laws/regulations
