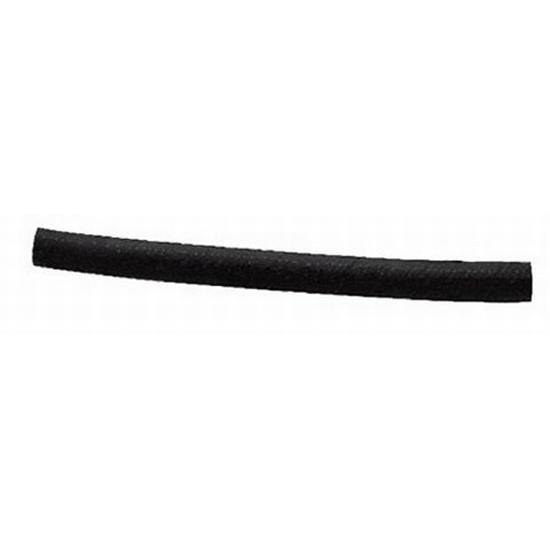

Black Push-On Hose, -10 AN




Textile braid reinforcement
Low pressure design for use with socketless reuseable fittings only
No hose clamp necessary
Ideal hose for fuel line applications
50,000 ft of hose in stock!
Construction: AQP elastomer tube, textile braid reinforcement, blue AQP elastomer cover.
Application: For gasoline, fuel and lubricating oils, air and water. Not recommended for hydraulic impulse applications and is not approved for air brake, hydraulic brake or power steering applications.
Operating Range: Max Operating pressure: 250 PSI. Minimum burst pressure: 1000 PSI. Operating Temperature Range -40°F to 300°F. Air not to exceed +250°F and water not to exceed +180°F. Reduced pressure operation allows for temperatures up to 300°F.
Aeroquip Hose Sizing Guide (GIF)
Hose Fitting Sizing Chart (GIF)







Aeroquip AQP stainless steel braided Racing Hose is one of the finest low pressure fluid transfer hoses available today. The stainless steel braided cover provides excellent abrasion resistance and additional burst strength to the elastomer inner tubing. AQP Racing Hose is compatible with petroleum and synthetic lubricants, hydrocarbon fuels and liquid engine coolants. These hoses provide maximum flexibility and complete reliability, which makes them ideal for both street and race applications.
Applications include fuel, lube, coolant, air
750 PSI operating pressure
-45° to +300° F temperature rating
Made in the U.S.A.
Use with Aeroquip full flow hose ends
Available in several pre-cut lengths for added savings. Cut-to-length also available. When ordering cut-to-length hose, select CUT and in the quantity box leave the number of feet of hose you want. Order number of feet rounded up to next foot. There are no returns or exchanges on cut-to-length hose.
Fitting Thread Application Chart (GIF)








Blue push-on hose available in AN6, 8, 10 and 12 sizes
Working temperature of -40 to +200 deg
300 psi max pressure
Ideal for fuel line applications only
Not suited for oil or water applications exceeding temperatures of 200 degrees
Hose Fitting Sizing Chart (GIF)







AN6 black push-on hose. Ideal for fuel line applications only - NOT suited for oil or water use exceeding temperatures of 200° F.
Working Temp:  -40 to +200 degrees F
Max Pressure:  300 psi
Compatible with gasoline, alcohol, & diesel fuels
Choose lengths of 3, 6, 10, 15, or 20 feet.
Hose Fitting Sizing Chart (GIF)







Blue push-on hose, AN10 (also available in AN6, 8 and 12 sizes below)
Working temperature of -40 to +200 deg
300 psi max pressure
Ideal for fuel line applications only
Not suited for oil or water applications exceeding temperatures of 200 degrees
Hose Fitting Sizing Chart (GIF)







AN12 black push-on hose. Ideal for fuel line applications only - NOT suited for oil or water use exceeding temperatures of 200° F.
Working Temp:  -40 to +200 degrees F
Max Pressure:  300 psi
Compatible with gasoline, alcohol, & diesel fuels
Choose lengths of 3, 6, 10, 15, or 20 feet.
Hose Fitting Sizing Chart (GIF)







AN8 black push-on hose. Ideal for fuel line applications only - NOT suited for oil or water use exceeding temperatures of 200° F.
Working Temp:  -40 to +200 degrees F
Max Pressure:  300 psi
Compatible with gasoline, alcohol, & diesel fuels
Choose lengths of 3, 6, 10, 15, or 20 feet.
Hose Fitting Sizing Chart (GIF)







Aeroquip AQP stainless steel braided Racing Hose is one of the finest low pressure fluid transfer hoses available today. The stainless steel braided cover provides excellent abrasion resistance and additional burst strength to the elastomer inner tubing. AQP Racing Hose is compatible with petroleum and synthetic lubricants, hydrocarbon fuels and liquid engine coolants. These hoses provide maximum flexibility and complete reliability, which makes them ideal for both street and race fuel line applications.
Applications include fuel, lube, coolant, air
750 PSI operating pressure
-45° to +300° F temperature rating
Made in the U.S.A.
Use with Aeroquip full flow hose ends
Available in several pre-cut lengths for added savings. Cut-to-length also available. When ordering cut-to-length hose, select CUT and in the quantity box leave the number of feet of hose you want. Order number of feet rounded up to next foot. There are no returns or exchanges on cut-to-length hose.
Fitting Thread Application Chart (GIF)
