Rod End Supply AML8-10 BLK Aluminum Heim Joint 5/8-18 LH Male 1/2 Hole

SAME DAY SHIPPING! Order within the next 14 hours 43 minutes and receive same day shipping

Specs
Material Type:
Aluminum
Color:
Black
Finish:
Anodized
Hole Diameter:
0.5000
Thread Pitch:
5/8"-18
Threads:
LH Male

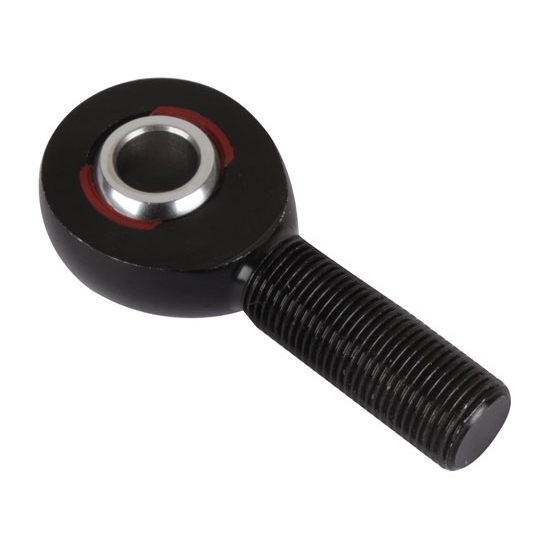

Rod End Supply AML8-10 BLK Aluminum Heim Joint 5/8-18 LH Male 1/2 Hole

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

  • 1/2"x 5/8"-18
  • Self lubricating & self sealing
  • 7075-T6 Aluminum
  • Black anodized
  • Precision ground
  • Heat treated
  • Hard chrome plated

Customer Reviews

Rated 5 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
1
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

SpeedSTR0
Verified Purchaser

Great quality

May 25, 2014
Great quality rod ends. They stay nice and tight even after some hard crashes LOL, as I tested them pretty good. Can't beat the price.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

1 questions : 1 answers

1 answers

What is the load capacity?

Brianjt2000
August 08, 2014

What is the load capacity?

Answers

August 08, 2014
EricM
The ultimate static radial load rating is 15,000 lbs.
Page 1 of 1
