Rod End Supply AML8 BLK Aluminum Heim Joint, 1/2-20 LH Male

Specs
Material Type:
Aluminum
Overall Width:
1.31
Overall Length:
3.12
Color:
Black
Sold in Quantity:
Each
Overall Thickness:
.62
Finish:
Anodized
Hole Diameter:
0.5000
Inside Diameter:
.50
Thread Length:
1.38
Thread Pitch:
1/2"-20
Center Hole to End of Shank:
2.45
Threads:
LH Male

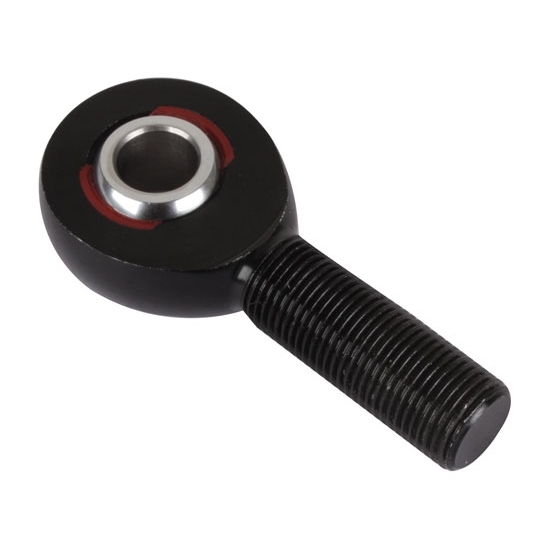

Rod End Supply AML8 BLK Aluminum Heim Joint, 1/2-20 LH Male
Rod End Supply AML8 BLK Aluminum Heim Joint, 1/2-20 LH Male

Click image to enlarge

Speeday Motors Logo
X
Rod End Supply AML8 BLK Aluminum Heim Joint, 1/2-20 LH Male

Details

Reviews

Q & A

What's in the Box

  • 1/2"-20 shank, 1/2" hole
  • Self-lubricating, self-sealing nylafiber race
  • Black anodized 7075-T6 aluminum body
  • 52100 steel ball, heat treated and hard chrome plated
