Bilstein XVS Series Non-Base Valve Linear Shock Absorbers

Free Shipping Free Shipping
Specs
Sold in Quantity:
Each
Shock Type:
Mono Tube
Finish:
Zinc
Upper Shock Mount:
1/2 Inch Eyelet
Lower Shock Mount:
1/2 Inch Eyelet
Shock Body Material:
Steel
Adjustability:
Non-Adjustable
Shock Stroke:
-
Shock Body Type:
Smooth
Shock Body Size:
Large Body
MFG. Part #:
-
Hardware Included:
No
Coil-Over Compatible:
Yes
Inside Diameter:
46
Extended Length:
-
Compressed Length:
-
Shock Eyelet Width:
.630
Body Diameter:
2.00
Bulb Diameter:
-
Bilstein XVS Series Non-Base Valve Linear Shock Absorbers

Click image to enlarge

Details

Reviews (0)

Q & A (0)

What's in the Box

Info

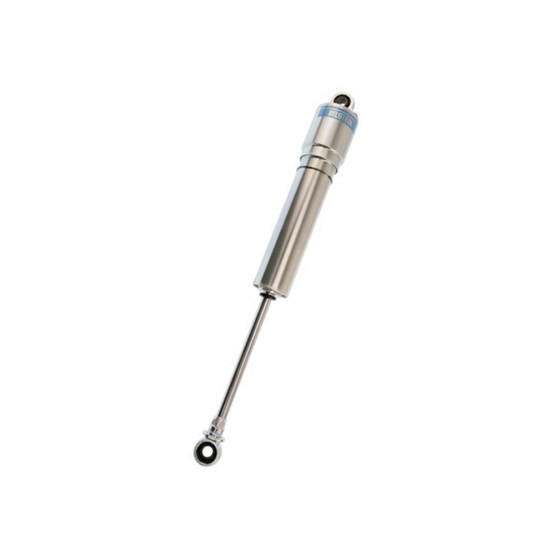

These new Bilstein XVS Series non-base valve linear shocks feature a 46mm steel body and are designed for Late Models and Modifieds.  They are completely racer rebuildable and revalvable.  These shocks are available with a soft or medium piston bleed, which allows the shock to react quicker or slower at low speeds.
  • 46mm steel body monotube shocks designed for, but not limited to, Late Models and Modifieds
  • Extreme volume nitrogen bulb minimizes rod pressure gain
  • Zinc plated for rapid heat dissipation
  • Linear valving without base valve
  • Completely racer rebuildable and revalvable
  • Coil over compatible

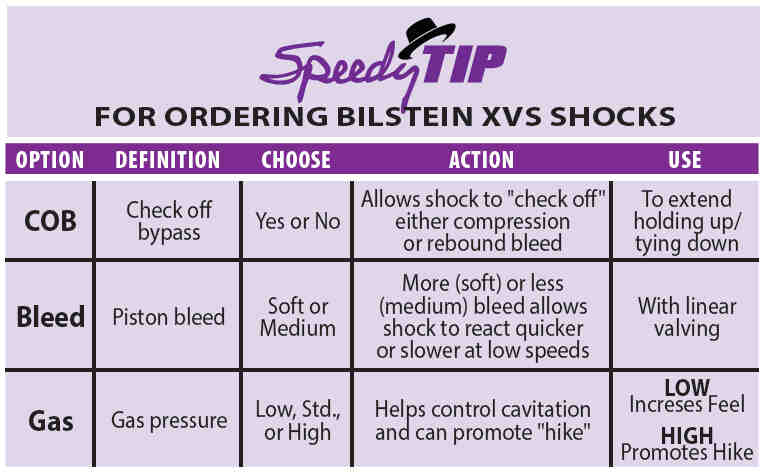

  • Specify stroke, rebound, compression, and soft (S) or medium (M) piston bleed
  • Bilstein XVS Shock Options
Note:  Bleed - Piston bleed

Soft or Medium - More (soft) or less (medium) bleed allows shock to react quicker or slower at low speeds
