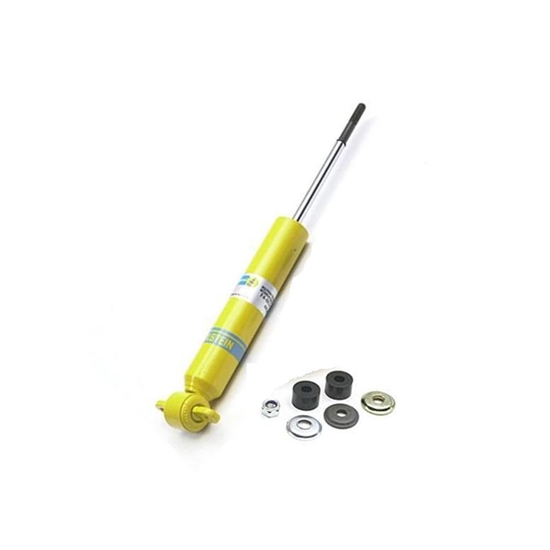

Bilstein F4BE3E249MO 73-88 AG Body Front Street Shock Comp 219/Reb 358

Specs
Material Type:
Steel
Sold in Quantity:
Each
Finish:
Painted
Shock Type:
Mono Tube
Upper Shock Mount:
Stud
Lower Shock Mount:
Tie Bar
Shock Body Material:
Steel
Bushing Material:
Rubber
Shock Body Type:
Smooth
Shock Body Size:
Small Body
MFG. Part #:
F4-BE3-E249-MO
Hardware Included:
Yes
Centerline of Holes:
2.53
Extended Length:
13.48
Compressed Length:
8.60
Thread Length:
1.25
Arm Length:
4.88
Body Diameter:
1.56
Notes
Upper bushing included.
Bilstein F4BE3E249MO 73-88 AG Body Front Street Shock Comp 219/Reb 358
Bilstein F4BE3E249MO 73-88 AG Body Front Street Shock Comp 219/Reb 358
Bilstein F4BE3E249MO 73-88 AG Body Front Street Shock Comp 219/Reb 358
Bilstein F4BE3E249MO 73-88 AG Body Front Street Shock Comp 219/Reb 358
Bilstein F4BE3E249MO 73-88 AG Body Front Street Shock Comp 219/Reb 358

Click image to enlarge

Details

Reviews (0)

Q & A (4)

What's in the Box

Info

The technology that has made Bilstein a winner in Winston Cup, Indy Car and Formula 1 is now available to the grassroots level hobby stock and street stock racer. Bilstein monotube gas shocks use deflective disc valving to give more precise and consistent valving. Plus, their rugged construction and precisely machined finishes ensure a long performance life. These shocks may cost more initially but they pay off in the winners circle!

  • Monotube body dissipates heat more effectively than twin-tube designs
  • Nitrogen gas puts shock oil under pressure to totally prevent shock fade
  • Allows for more precise, consistent set-ups
  • Weight transfer when you need it
  • Tires will stay on the track through the rough spots
  • Better control under braking
  • 1973-83 GM A-Body (Chevelle, Malibu, Monte Carlo, etc.)
  • 1978-88 GM G-Body (Monte Carlo, Regal, Cutlass, Grand Prix)

Bilstein Street Stock Shock Chart (GIF)

Item Details

Valving: 358#/219# Linear
Mounting Type: T-Bar to Pin
Extended Length: 13.48" Collapsed Length: 8.60"
