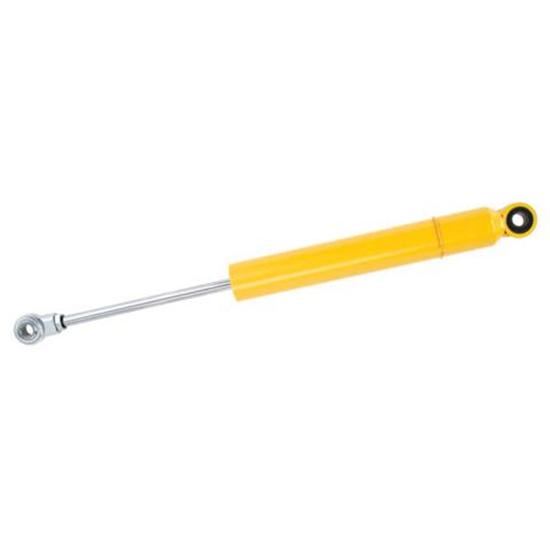

Bilstein F4-BE3-C231-H1 Small Steel Shock w Ends, 7 Inch, Comp 9/Reb 1

Specs
Sold in Quantity:
Each
Shock Type:
Mono Tube
Finish:
Powder Coated
Upper Shock Mount:
1/2 Inch Eyelet
Lower Shock Mount:
1/2 Inch Eyelet
Shock Body Material:
Steel
Bushing Material:
Steel
Shock Stroke:
7
Shock Body Type:
Smooth
Shock Body Size:
Small Body
MFG. Part #:
S7G1090
Valve Positions:
90 compression - 10 rebound
Hardware Included:
No
Coil-Over Compatible:
Yes
Inside Diameter:
36
Extended Length:
20.00
Compressed Length:
13.00
Shock Eyelet Width:
.625
Body Diameter:
1.55
Bolt Hole Circle:
.500
GTIN Code:
651860624686
Bilstein F4-BE3-C231-H1 Small Steel Shock w Ends, 7 Inch, Comp 9/Reb 1

Click image to enlarge

Details

Reviews (0)

Q & A (2)

What's in the Box

Info

Bilstein SG Series S7G mono-tube gas shocks feature the latest development in shock valving technology; digressive valving. This delivers a new level of control by damping slow suspension movements more effectively while not allowing the chassis to be upset by sharp bumps. Bilstein has set the standard for years in Winston Cup, Indy Car and Formula 1. Now it's setting the standard for Modifieds, Late Models and Open Wheel.

  • Use on the front of Modifieds and Sprints
  • Also suitable for Midgets, TQ's, Dwarf Cars, etc.
  • Monotube gas pressure construction
  • Economy price
  • Lightweight
  • Low rod pressure
  • Bilstein's famous consistent, fade-free performance
  • Features one bearing end and one welded end
  • 1-5/8" steel body
  • 7" stroke
  • Comp. Length:  12"
  • Extended Length:  20"

Customer Reviews

This product has no reviews.

Product Q&A

2 questions : 3 answers

2 answers

Do I use a 1 5/8" x10" spring for this shock?

May 29, 2011

Do I use a 1 5/8" x10" spring for this shock?

Answers

July 03, 2015
Eric
Expert
If using coliover kit #213193103, this requires a 1-7/8 spring. Height would depend on application
June 01, 2011
Jason
If using coliover kit #213193103, this requires a 1-7/8 spring. Height would depend on application
1 answers

will these work fine on the front of a 3200 pound super stock car?

December 31, 2011

will these work fine on the front of a 3200 pound super stock car?

Answers

January 02, 2012
Eric
The small body shocks are best suited for lighter cars and/or smooth tracks due to overheating issues. For your application they would probably be ok as long as the track is fairly smooth, however I would suggest going with the large body version like part number 213-S7Z5050. We offer that shock in several different on-the-shelf valvings and can also custom valve them to your specs if needed.
