Bilstein F4-B46-0207-ZX Steel 2 Inch Shock 9 Inch Stroke, Reb 4/Comp 4

Free Shipping Free Shipping
Specs
Sold in Quantity:
Each
Shock Type:
Mono Tube
Finish:
Zinc
Upper Shock Mount:
1/2 Inch Eyelet
Lower Shock Mount:
1/2 Inch Eyelet
Shock Body Material:
Steel
Bushing Material:
Steel
Shock Stroke:
9
Shock Body Type:
Smooth
Shock Body Size:
Large Body
MFG. Part #:
S9Z4040
Valve Positions:
40 compression - 40 rebound
Hardware Included:
No
Coil-Over Compatible:
Yes
Inside Diameter:
46
Extended Length:
23.44
Compressed Length:
14.94
Shock Eyelet Width:
.630
Body Diameter:
2.00
Bolt Hole Circle:
.500
GTIN Code:
651860423081
Bilstein F4-B46-0207-ZX Steel 2 Inch Shock 9 Inch Stroke, Reb 4/Comp 4

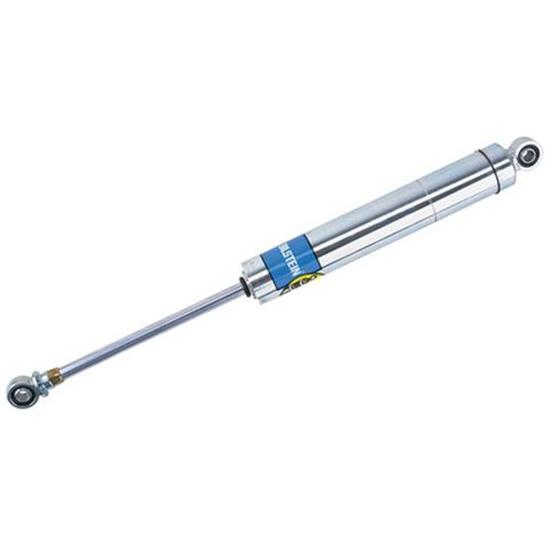

Click image to enlarge

Details

Reviews (0)

Q & A (1)

What's in the Box

Info

These Bilstein mono tube gas shocks feature the latest development in shock valving technology; digressive valving. This delivers a new level of control by damping slow suspension movements more effectively while not allowing the chassis to be upset by sharp bumps.

Bilstein has set the standard for years in Indy Car, NASCAR, and Formula 1. Now it is setting the standard for Modifieds, Late Models and Open Wheel

23.44" extended, 14.94" collapsed, 19.75" mounting, 8.5" travel.

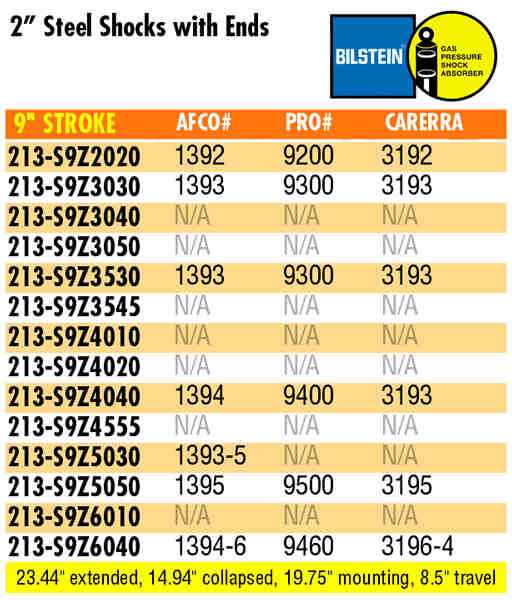

Bilstein Shock Application Chart (GIF)

Customer Reviews

This product has no reviews.

Product Q&A

1 questions : 1 answers

1 answers

What is the gas psi set at on these "off the shelf" standard valvings compared to an Afco 24 series or QA1 26 series?

Fly51
September 09, 2014

What is the gas psi set at on these "off the shelf" standard valvings compared to an Afco 24 series or QA1 26 series?

Answers

September 09, 2014
EricM
The Bilstein shocks will have more gas pressure in the off the shelf form than QA1 or Afco will. We offer custom valving of these Bilstein shocks where I would suggest that you choose low gas pressure for most applications. The left rear shocks on Late Models, Modifieds, and some street stocks we will typically use high gas pressure to aid in hike up.
