$244.99

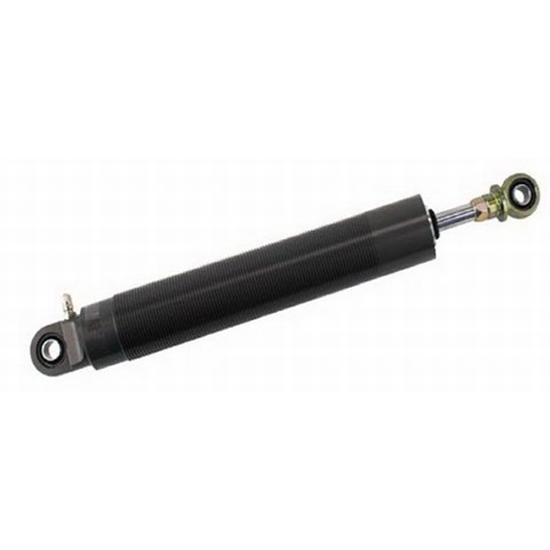

Bilstein Alum. Threaded Body Gas Shock, 7 In Stroke, Comp/Rebound: 3/7
Bilstein Alum. Threaded Body Gas Shock, 7 In Stroke, Comp/Rebound: 3/7

Bilstein Alum. Threaded Body Gas Shock, 7 In Stroke, Comp/Rebound: 3/7

0 Reviews | 0 Answered Questions
In Stock
Ships FREE
Bilstein Alum. Threaded Body Gas Shock, 7 In Stroke, Comp/Rebound: 3/7
Image Gallery
Bilstein Alum. Threaded Body Gas Shock, 7 In Stroke, Comp/Rebound: 3/7
Bilstein Alum. Threaded Body Gas Shock, 7 In Stroke, Comp/Rebound: 3/7
Zoomed In Image
Part # 213SN7A7030
$244.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
What's In The Kit
Reviews
Q&A
Articles

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

Build Your Kit

You're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.
Next
Add to Cart

Details

MFG. Part #:
SN7A7030
Shock Type:
Mono Tube
Adjustability:
Non-Adjustable
Coil-Over Compatible:
Yes
Shock Body Material:
Aluminum
Shock Body Size:
Large Body
Shock Body Type:
Threaded
Gas Pressure Adjustable:
Yes
Shock Stroke:
7
Upper Shock Mount:
1/2 Inch Eyelet
Lower Shock Mount:
1/2 Inch Eyelet
Extended Length:
20.23"
Compressed Length:
13.35"
Body Diameter:
2.05"
Valve Positions:
30 compression - 70 rebound
Finish:
Anodized
Bushing Material:
Steel
Rebuildable:
Yes
Sold in Quantity:
Each
Notes:
MADE TO ORDER
Inside Diameter:
46 mm
Thread Length:
7"
Shock Eyelet Width:
6.30"
Bolt Hole Circle:
.500"
Hardware Included:
No

Info

  • 46mm (1.81") diameter threaded aluminum body
  • Includes Schrader valve and circlip rod guide
  • Rebuildable; shock can be assembled and disassembled for rapid repair or valving change
  • Hard anodized for durability
  • Valve stacks and valving kits available separately
  • Available with linear or digressive piston
  • Every part of the ASN shock is available separately for economical repair
  • World class performance in an aluminum shock at an economy price
  • Bilstein's famous consistent, fade-free performance
  • Designed for, but not limited to Modifieds, Late Models, & Sprint Cars

Note: With mono tube gas shocks, you have a longer compressed length. So if you've been running a 9" Pro, Carrera, etc., you need to go to an 8" Bilstein.

Notes

Bilstein Shock Numbering System

Example: SN 7 A 20 40

  • 7 - Stroke in inches (Comp. length subtracted from Ext. length)
  • A - Aluminum threaded body shock
  • 20 - # Rebound damping (first # in sequence)
  • 40 - # Compression damping (second # in sequence)

Note: Rebound and Compression are expressed in the industry standard, 4, 5, 6 etc. with a 2nd digit to allow for a degree of dampening between whole numbers. For example: 50 means 5, 55 means 5-1/2

Specs

  • Compressed Length: 13.35"
  • Extended Length: 20.23"
Some parts are not legal for use in California or other states with similar laws/regulations

Related Products

What's In The Kit

Each kit from Speedway Motors is carefully packaged and delivered right to your door. Below is a list of all the items you should expect to receive when you order this kit. Some of these items may also be available for sale individually if you're here looking for replacement parts.
  • Bilstein ASN Base Shock
