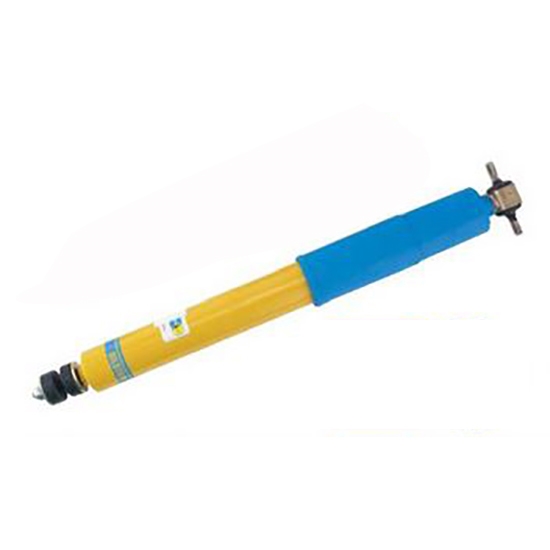

Bilstein AK1054 Rear Street Stock Shock, 1970-81 Camaro

Specs
Sold in Quantity:
Each
Finish:
Painted
Shock Type:
Mono Tube
Upper Shock Mount:
Tie Bar
Lower Shock Mount:
Stud
Shock Body Material:
Steel
Bushing Material:
Rubber
Shock Body Type:
Smooth
Shock Body Size:
Small Body
MFG. Part #:
AK1054
Coil-Over Compatible:
No
Centerline of Holes:
2.86
Extended Length:
20.39
Compressed Length:
12.72
Arm Length:
7.67
Body Diameter:
2.00
Notes
Includes bushing.
Bilstein AK1054 Rear Street Stock Shock, 1970-81 Camaro

Click image to enlarge

Details

Reviews (0)

Q & A (1)

What's in the Box

Info

The technology that has made Bilstein a winner in Winston Cup, Indy Car and Formula 1 is now available to the grassroots level racer. Bilstein mono tube gas shocks use deflective disk valving to give more precise and consistent valving. Plus, their rugged construction and precisely machined finishes ensure a long performance life. These shocks may cost more initially but they pay off in the winners circle!

  • 46mm diameter steel body
  • Monotube body dissipates heat more effectively than twin-tube designs
  • Nitrogen gas puts shock oil under pressure to totally prevent shock fade
  • Allows for more precise, consistent set-ups
  • Weight transfer when you need it
  • Tires will stay on the track through the rough spots
  • Better control under braking

Fits stock factory mounts in 1970-1981 Camaro.

Item Details

Valving: 165#/67# Linear
Mounting Type: T-Bar to Pin

Customer Reviews

This product has no reviews.

Product Q&A

1 questions : 1 answers

1 answers

Good afternoon, I was just a little confused on the valving number on this shock. debating between these and the Afco 1030. The Afco and others have a valving of say 5/5 but these are a totally different number all together. Thanks, Pete

Pete
Niagara Falls, Ontario Canada
June 06, 2016

Good afternoon, I was just a little confused on the valving number on this shock. debating between these and the Afco 1030. The Afco and others have a valving of say 5/5 but these are a totally different number all together. Thanks, Pete

Answers

June 06, 2016
Eric
Expert
This shock is approximately 3 rebound and 1 compression.
