Billet Specialties 68120 Alum Hose Separator Clamp, .500 x .500 Inch

Specs
Material Type:
Aluminum
Sold in Quantity:
Each
Finish:
Polished
MFG. Part #:
68120
Hole Count:
2
Overall Width:
.78
Overall Length:
1.60
Overall Thickness:
.38
Hole Diameter:
.50
Hole Diameter (2):
.50

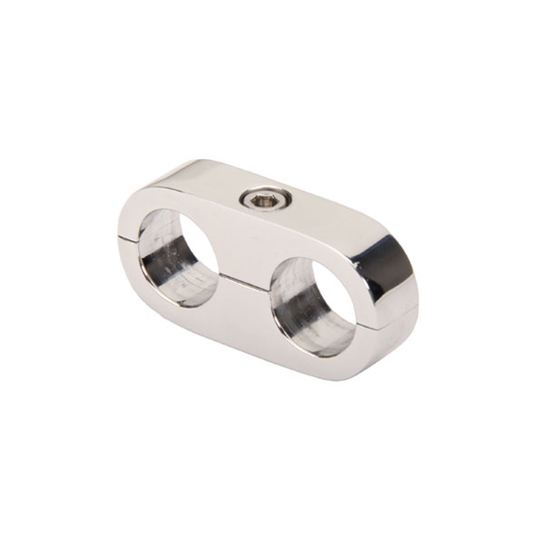

Billet Specialties 68120 Alum Hose Separator Clamp, .500 x .500 Inch

Click image to enlarge

Details

Reviews (1)

Q & A (0)

What's in the Box

Info

These Billet Specialties engine dress-up hose separators are designed to separate two hoses and mount them directly to the frame or firewall. They are machined from 6061-T6 billet aluminum and fully polished for a detailed touch.

  • Precision machined from 6061-T6 billet aluminum
  • Mirror polished finish
  • For .500" x .500" O.D. hoses
  • Stainless bolts
  • Sold individually

Tech Tip: A hose’s listed size is always in reference to the inside diameter of that hose. Example, a 5/8” heater hose has an inside diameter (I.D.) of 5/8” while the outside diameter (O.D.) is 29/32” or .906. The O.D. is the dimension needed when purchasing hose separators.

Hose Separator Size Guide:

Braided AC Hose Diameter:

             Hose #       Decimal      Fraction

  • #6            .440"         7/16"
  • #8            .540"        35/64"
  • #10           .630"          5/8"

AC Hose Diameter:

             Hose #       Decimal      Fraction

  • #6            .734"         47/64"
  • #8            .890"         57/64"
  • #10           .969"         31/32"

Braided AN Line Diameter:

             Size       Decimal      Fraction

  • -6         .562"         9/16"
  • -8         .625"          5/8"
  • -10       .781"        25/32"
  • -12       .906"        29/32"
  • -16      1.125"       1-1/8"

Heater Hose Diameter:

             Size       Decimal      Fraction

  • 5/8"      .906"       29/32"
  • 3/4"     1.015"     1-1/64"
