Billet FM2222PC B/B Chevy Mid Mount Serpentine Conversion Kit Press-On

SAME DAY SHIPPING!

Share by Email

From
To

Click image to enlarge

X

Please NOTE the following about this product:

  • This item is sold as a kit.

Details

Reviews

Q & A

What's in the Box

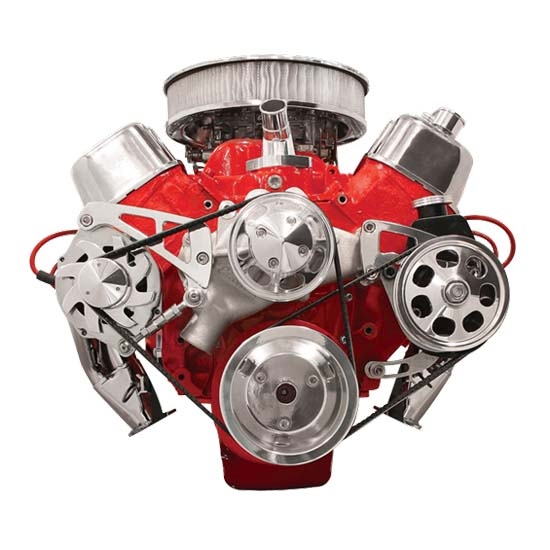

Genuine Billet Specialties style, quality, fit and finish are engineered into these serpentine conversion kits. All brackets and pulleys are machined from 6061-T6 billet aluminum & polished to a mirror finish. Designed to bolt right on and align correctly the first time. Includes stainless steel hardware.

Designed for use with:

  • 396-454 Big Block Chevy (not 572, not tall deck heads)
  • Long water pump (standard rotation)
  • GM 60 to 80 amp alternator (passenger side)
  • Saginaw power steering pump ('75-'77 Chevelle with V8)

Kit Includes:

  • Polished billet aluminum mid mount alternator bracket
  • Polished billet aluminum mid mount power steering bracket
  • Polished billet aluminum alternator pulley with fan & nose cone
  • Polished billet aluminum water pump pulley with nose cone
  • Polished billet aluminum crankshaft pulley
  • Polished stainless steel turnbuckles
  • Stainless steel mounting hardware

Note:  Serpentine belts are not provided in kit.  Recommended Alternator Belt:  Goodyear 6 Rib #4060420 (42") or Dayco 6 Rib #5060420 (42").  Recommended Power Steering Belt:  Goodyear 6 Rib #4060385 (38.5") or Dayco #5060388 (38.8")

 910-13272 Instructions (PDF)

You may also be interested in:

Billet Specialties 14220 Tru Trac Serpentine Systems - B/B Chevy


Billet Specialties Tru Trac serpentine systems for Big Block Chevy come complete with all attaching hardware and a comprehensive installation manual.

  • Polished 105 amp Powermaster 1-wire alternator
  • Cast finish Edelbrock reverse rotation water pump
  • Polished Sanden SD-7 compressor
  • Cast finish Maval power steering pump w/ AN fittings
  • All pulleys and brackets completely polished
  • Polished ARP 12-point stainless steel hardware
  • Goodyear Gatorback 6-rib serpentine belt

Note: Requires the use of a remote power steering fluid reservoir. Vehicles that use front style motor mounts must be converted to side motor mounts when using the Tru Trac system.

910-13222 Instructions (PDF)

Billet FM2221PC BBC Mid Mount Serpentine Conversion Kit, Keyway Shaft


Genuine Billet Specialties style, quality, fit and finish are engineered into these serpentine conversion kits. All brackets and pulleys are machined from 6061-T6 billet aluminum & polished to a mirror finish. Designed to bolt right on and align correctly the first time. Includes stainless steel hardware.

Designed for use with:

  • 396-454 Big Block Chevy (not 572, not tall deck heads)
  • Long water pump (standard rotation)
  • GM 60 to 80 amp alternator (passenger side)
  • Saginaw power steering pump ('75-'77 Chevelle with V8)

Kit Includes:

  • Polished billet aluminum mid mount alternator bracket
  • Polished billet aluminum mid mount power steering bracket
  • Polished billet aluminum alternator pulley with fan & nose cone
  • Polished billet aluminum water pump pulley with nose cone
  • Polished billet aluminum crankshaft pulley
  • Polished stainless steel turnbuckles
  • Stainless steel mounting hardware

Note:  Serpentine belts are not provided in kit.  Recommended Alternator Belt:  Goodyear 6 Rib # 4060420 (42") or Dayco 6 Rib #5060420 (42")   Recommended Power Steering Belt:  Goodyear 6 Rib #4060385 (38.5") or Dayco #5060388 (38.8").

 910-13272 Instructions (PDF)
