Billet Aluminum Throttle Pedal

Specs
Centerline of Holes:
1.55
Material Type:
Aluminum
Overall Width:
2.38
Overall Length:
12.75
Color:
Silver
Sold in Quantity:
Each
Finish:
Polished
Hole Diameter:
.25
Pedal Length:
4.50
MFG. Part #:
916-55013
Garage Sale:
No
Pedal Width:
1.75
Notes
Length from pivot to throttle cable hole is 5.13". From pivot to absolute bottom is 7.63". Has a 360 degree adjustable pivot angle.
Billet Aluminum Throttle PedalBillet Aluminum Throttle PedalBillet Aluminum Throttle PedalBillet Aluminum Throttle Pedal

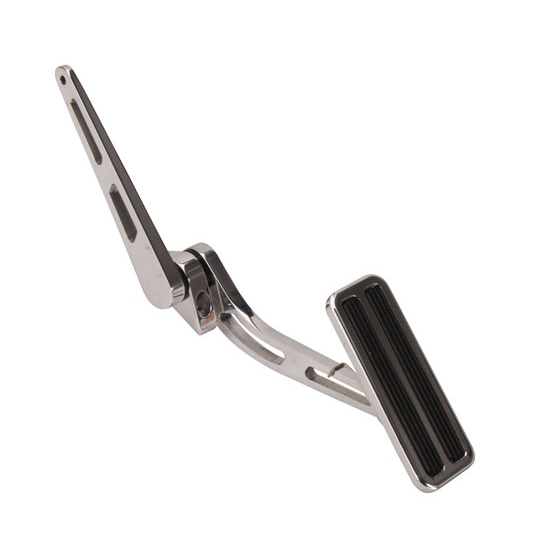

Billet Aluminum Throttle Pedal

Click image to enlarge

Speeday Motors Logo
X
Billet Aluminum Throttle Pedal

Details

Reviews

Q & A

What's in the Box

  • Polished aluminum construction with a urethane bushing at the center
  • Pedal is spring loaded
  • Serrated shaft allows you to position arm as needed
  • Easily adjust the angle between the two arms a full 360°
  • Pad measures 4.5" x 1.75"
