Big Bore GM Metric 1978-88 Brake Caliper

Specs
Centerline of Holes:
5.50
Material Type:
Steel
Color:
Sold in Quantity:
Each
Finish:
Natural
Piston Diameter:
2.75
Caliper Pistons:
Single
MFG. Part #:
910-31040
Rotor Thickness:
1.00
Garage Sale:
No
Big Bore GM Metric 1978-88 Brake CaliperBig Bore GM Metric 1978-88 Brake Caliper
Big Bore GM Metric 1978-88 Brake Caliper

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

If you are using 1978-88 GM Metric style brake calipers your choices of piston sizes are pretty much limited to 2-1/2". This isn't bad unless you want to 'tune' your braking by using different size calipers front to rear. By using a larger 2-3/4" piston you will increase the braking force at a wheel over a wheel using a smaller piston.

Bleeder and inlet are both 10mm-1.5 inlet allowing the caliper to be used on either side. Plus, these calipers have been ground smooth to make them easier to paint.

Includes pads and hardware. Sold as EACH.

  • 20% increase in stopping power over stock calipers
  • Can used on the left and right sides
  • Extra ribs have been added internally while unnecessary weight was removed
  • Lighter, stronger, has more stopping power than OEM calipers

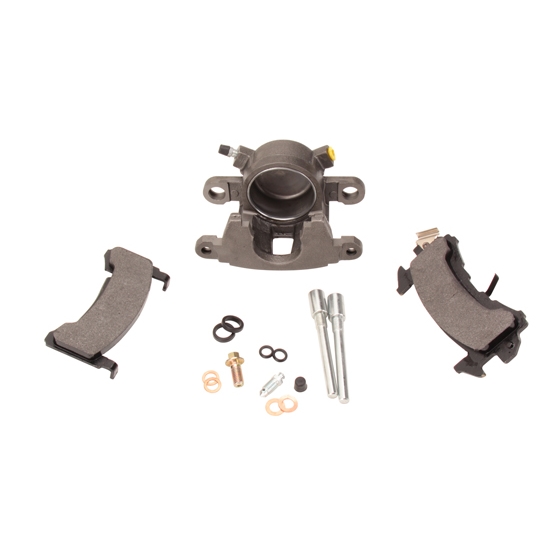

  • Each caliper includes:
    • brake pads
    • clips
    • slide pins
    • banjo bolt
    • washers
    • bleeder screw

Notes

  1. Can be configured to be used as left or right.
  2. Has a 2.75 inch bore.
  3. Uses the popular “154” (Chevrolet 78-88 mid size, 83-02 S10) brake pad.
  4. A direct replacement for the “4125/26” (Chevrolet 1978-88 mid size, 1983-02 S10) calipers.
  5. The slide bolt center to center spacing is 5.5"
