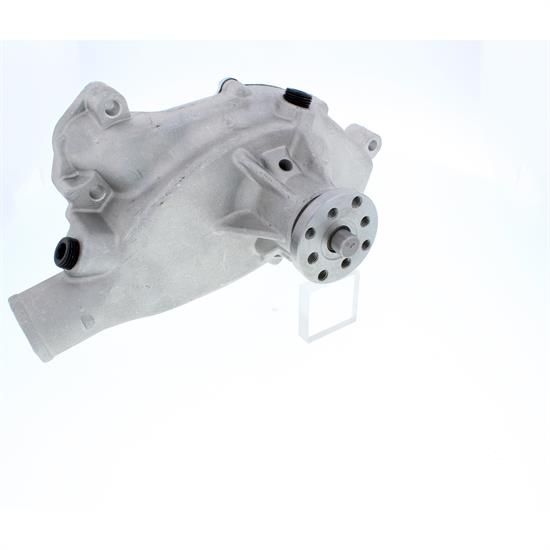

Big Block Chevy Short Aluminum Water Pump

SAME DAY SHIPPING! Order within the next 3 hours 55 minutes and receive same day shipping

Specs
Material Type:
Aluminum
Weight:
7.35
Sold in Quantity:
Each
Finish:
Natural
Shaft Diameter:
0.63
Mounted Length:
5.75
Shaft Length:
0.43
Hose ID:
1.81
Gasket(s) Included:
Yes
Hardware Included:
Yes
Heater Inlet Size:
1/2" NPT top and side
MFG. Part #:
910-15588
Garage Sale:
No
Water Pump Style:
Short
Notes
Clearance from back of pump to engine block mount is .75" May interfere with some 8" balancers. Fan hub drilled for 1-3/4" and 2-1/8" bolt patterns.

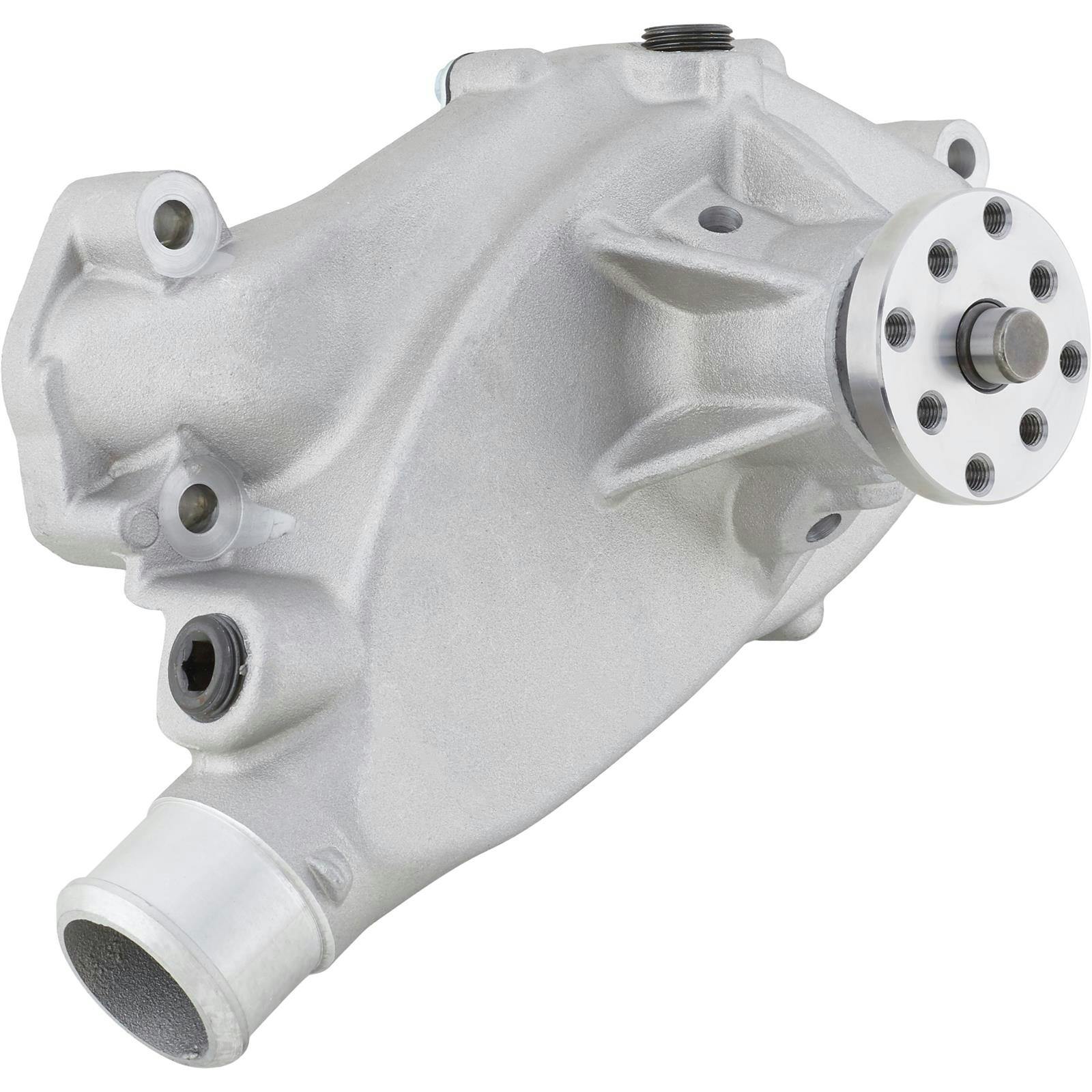

Big Block Chevy Short Aluminum Water Pump

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Our B/B Chevy water pumps feature a CNC machined iron impeller, ribbed aluminum housing, and a heavy duty bearing assembly. These mechanical pumps flow up to 35% more coolant than stock pumps. Plus, these aluminum pumps weigh less than half than the stock pump and require less power to operate.

  • T6 aluminum
  • Features an impeller with curved vanes for maximum flow, pressure, and equal distribution to both sides of the block
  • Unique seal assembly for leak proof operation
  • 3/4" bearing

910-15588 Instructions (PDF)

Note: Clearance from back of pump to engine block mount is .75" May interfere with some 8" balancers. Fan hub drilled for 1-3/4" and 2-1/8" bolt patterns.

Customer Reviews

Rated 4 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
0
4 Stars
1
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

MJCaboose
Verified Purchaser
Lebanon, MO 65536, USA
Product Rating

Well made and excellent price

August 25, 2014
I ordered this to put on my Chrysler 392 hemi which uses adapters to run this more modern and lighter pump. Speedway has the lowest price and when I got it, it looked perfect. It fits well and has a nice finish. The only problem I had was that the holes in the hub weren't threaded correctly so I had to run a tap through. 5 of repair minutes and it works great now!
Pros:
  • really good price
Cons:
  • poorly tapped threads
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

2 questions : 2 answers

bung holes for heater hoses Do the holes come plugged with steel plugs or open? If plugged, how does one remove the steel plugs without galling the housing?

1 answers
Marty48039
Detroit, MI, USA
March 19, 2015

bung holes for heater hoses Do the holes come plugged with steel plugs or open? If plugged, how does one remove the steel plugs without galling the housing?

Answers

March 19, 2015
EricM
This has 1/2" NPT ports on the top and side but plugs are not installed.

fit will this pump it an 85 454

1 answers
nitwit
October 19, 2014

fit will this pump it an 85 454

Answers

October 20, 2014
EricM
Yes this water pump will fit an 85 454 if you plan to change to a short water pump. Your engine had a long water pump originally.
