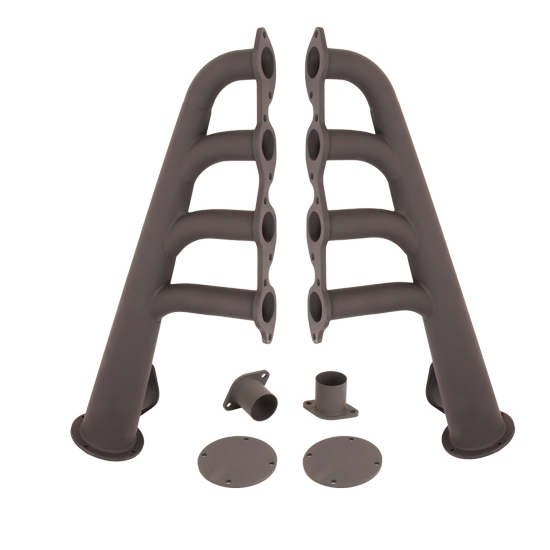

Big Block Chevy Lake Style Headers, Black Steel Finish

SAME DAY SHIPPING! Order within the next 12 hours 5 minutes and receive same day shipping

Free Shipping Free Shipping
Specs
Material Type:
Steel
Sold in Quantity:
Set
Finish:
Painted
Flange Style:
Round Port
Header Tube Type:
Lake Style
Gasket(s) Included:
Yes
Hardware Included:
Yes
Garage Sale:
No
Tube O.D.:
1.88
Tube Length:
24.00
Collector Diameter :
4.00
Header Dimension A:
14.00
Header Dimension B:
6.00
Header Dimension C:
27.00
Notes
2-1/2" O.D. street lead down tube diameter
Big Block Chevy Lake Style Headers, Black Steel Finish
Big Block Chevy Lake Style Headers, Black Steel Finish
Big Block Chevy Lake Style Headers, Black Steel Finish

Click image to enlarge

Please NOTE the following about this product:

  • This item is sold as a set.

Details

Reviews

Q & A

What's in the Box

Give your street rod a nostalgia look and help uncork its performance potential with these lakester headers for big-block Chevy V8s. The lakester header works great on early hoodless and fenderless rods like T-buckets, Model A's and 1932-1934 Fords. Vertical flanges allow you to connect the lake style headers to a muffled under-car exhaust when the end plates are on.

  • Fits 396-502 B/B Chevy
  • Hookups provided for under-chassis exhaust (2-1/2" O.D.)
  • Block-off plate allows you to easily uncork headers
  • 1-7/8" primaries, 4" collectors

Header Dimensions (GIF)

NOTE: Turn-outs NOT included. Headers come with end plates, but the turn outs are sold seperately.



Specs

  • 1-7/8" primary tube diameter
  • 4" collector cone diameter
  • 2-1/2" O.D. street lead down tube diameter

Use the illustration below with these measurements:

  • A = 4-1/2"
  • B = 2-1/2"
  • C = 27"
  • D = 12-1/2"
  • E = 6-1/2"
  • F = 9"

 Lake Style Headers Diagram (GIF)

Customer Reviews

Rated 4 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
0
4 Stars
1
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Dirty 30 Boyz
Verified Purchaser
Oceano, CA

measure width of cowl before you buy

March 25, 2012
I had to cut and extend the primary pipes to get them to fit the cowl of a 1939 chevy pickup (6in) having that said the quality was good make shure you ask questions measure twice!!!!
Pros:
  • Improves Performance
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

1 questions : 1 answers

1 answers

Do you carry this same set without the under car flanges?

28tudor
Houston tx
August 29, 2014

Do you carry this same set without the under car flanges?

Answers

September 02, 2014
EricM
Sorry I do not offer these without the under car connection. You could certainly build a set without them using kit number 9300561.
Page 1 of 1
