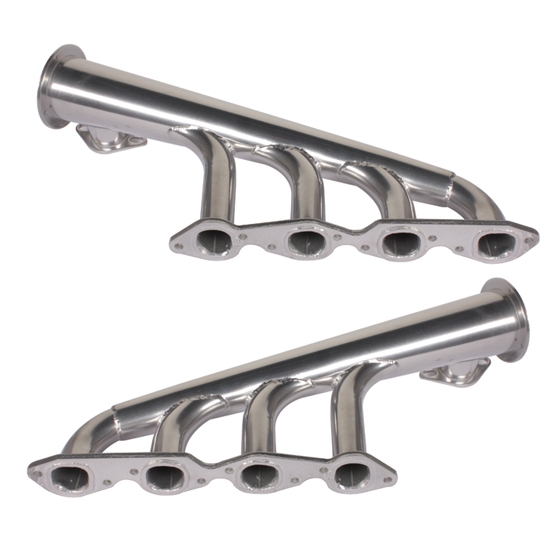

Garage Sale - Big Block Chevy Lake Style Headers, AHC Coated

SAME DAY SHIPPING! Order within the next 1 hour 46 minutes and receive same day shipping

Garage Sale - Big Block Chevy Lake Style Headers, AHC Coated
Product Video
Garage Sale - Big Block Chevy Lake Style Headers, AHC Coated

Click image to enlarge

Watch the video below to learn more about Speedway Motors Armor Hot Coat (AHC)

Details

Reviews

Q & A

What's in the Box

Give your street rod a nostalgia look and help uncork its performance potential with these Lakes Style Headers for big-block Chevy V8s. These headers work great on early hoodless and fenderless rods like T-buckets, Model A's and 1932-1934 Fords. Vertical flanges allow you to connect the headers to a muffled under-car exhaust when the end plates are on.

  • Fits 396-502 B/B Chevy
  • Hookups provided for under-chassis exhaust (2-1/2" O.D.)
  • Block-off plate allows you to easily uncork headers
  • 1-7/8" primaries, 4" collectors

Header Dimensions (GIF)



Clearance!



NO WARRANTY, NO RETURNS ON GARAGE SALE ITEMS

Notes

Armor Hot Coating (AHC) is a heat resistant, ceramic coating applied to the outside of the header. This coating will reflect heat, which helps retain more heat within the header tube while simultaneously speeding up the exhaust flow. Not only will this coating help you make more horsepower, it also keeps your headers rust-free, looking great, and lasting longer (when properly maintained).  If you are looking for a show-quality finish for your headers, this is it! Our AHC will withstand exhaust temperatures of up to 1300¢ª F.

Specs

  • 1-7/8" primary tube diameter
  • 4" collector cone diameter
  • 2-1/2" O.D. street lead down tube diameter

Use the illustration below with these measurements:

  • A = 4-1/2"
  • B = 2-1/2"
  • C = 27"
  • D = 12-1/2"
  • E = 6-1/2"
  • F = 9"

 Lake Style Headers Diagram (GIF)

Warranties

Warning: AHC coatings will burn and be damaged at exhaust temperatures over 1300 degrees. A lean fuel mixture can generate exhaust temperatures exceeding 1700-1900 degrees. If the coating is damaged due to a lean condition, the coating will not be warranted, but can be recoated for a fee.
