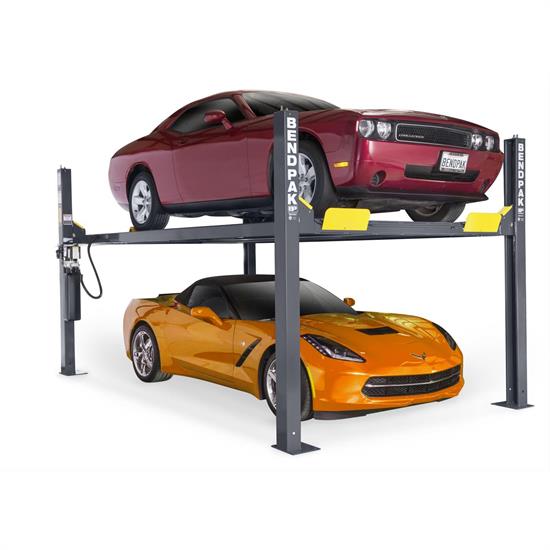

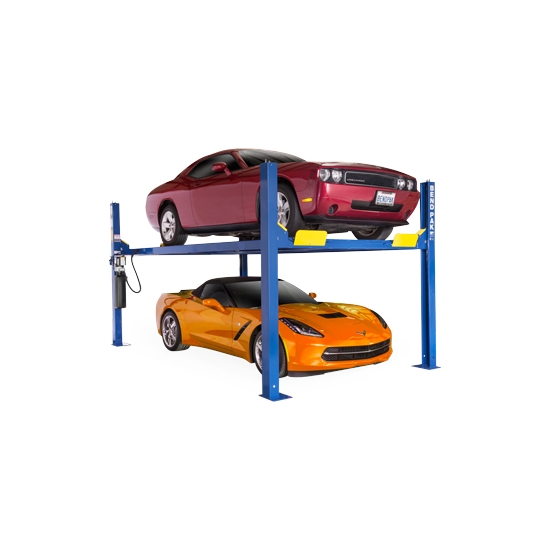

BendPak HD9 4 Post Lift, 9,000 Pound Lifting Capacity
BendPak HD9 4 Post Lift, 9,000 Pound Lifting Capacity

BendPak HD9 4 Post Lift, 9,000 Pound Lifting Capacity

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
BendPak HD9 4 Post Lift, 9,000 Pound Lifting Capacity
Image Gallery
BendPak HD9 4 Post Lift, 9,000 Pound Lifting Capacity BendPak HD9 4 Post Lift, 9,000 Pound Lifting Capacity BendPak HD9 4 Post Lift, 9,000 Pound Lifting Capacity BendPak HD9 4 Post Lift, 9,000 Pound Lifting Capacity BendPak HD9 4 Post Lift, 9,000 Pound Lifting Capacity BendPak HD9 4 Post Lift, 9,000 Pound Lifting Capacity BendPak HD9 4 Post Lift, 9,000 Pound Lifting Capacity
BendPak HD9 4 Post Lift, 9,000 Pound Lifting Capacity
Zoomed In Image
BendPak Automotive estimates this item will ship on or before August 29th.
Part # 9105175861
Save $50
$2,895.99
$2,945.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 3 business days for BendPak Automotive to ship this item.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Sold in Quantity:
Each
Lifting Capacity:
9,000 lbs.
Rise:
70"
Motor:
220 VAC / 60 Hz / 1 Ph
Time to Full Raise:
45 seconds
Overall Width:
110-1/4"
Overall Length:
200"
Outside Length:
174"
Height of Columns:
88"
Length of Runways:
164"
Runway Min Height:
4-1/2"
Runway Width:
19"
Width Between Runways:
37-1/2 to 44-3/8"
Max Lifting Height:
74-1/2
Width Between Posts:
100-1/4"
Min. Wheelbase @ 25% Capacity:
70"
Min. Wheelbase @ 50% Capacity:
85"
Min. Wheelbase @ 75% Capacity:
100"
Min. Wheelbase @ Rated Capacity:
115"
Locking Positions:
12
Lock Spacing:
Every 4"

Info

The space-saving design of the BendPak 9,000-lb. capacity HD-9 is ideal for vehicle storage in residential garages or commercial buildings. It also doubles as a great service lift for smaller shops who still want to do a big business. No special foundation is required and the installation is a cinch.

The BendPak HD-9 car lift is about the size of a typical parking space and will truly maximize your valuable floor area. Use the BendPak HD-9 for storing ATVs, snowmobiles, jet skis, golf carts, boats or just about anything else that needs to be off the ground. Now you can finally make use of that wasted vertical space above your car. If you’ve got at least standard 8-foot ceiling, this BendPak lift will work for you.

  • 9,000-lb. maximum lifting capacity
  • CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN 1493
  • Freestanding design
  • Perfect for parking, storage and service
  • Runways accommodate narrow and standard vehicles
  • Runways include rail-kit for optional accessories
  • Electric / hydraulic power system
  • Single hydraulic cylinder mounted underneath runway
  • Fully enclosed lifting cables, safety locks and sheaves
  • Internal anti-sway slider blocks in each column
  • Oversized self-lubricating cable rollers
  • Features heavy-duty 3/8" aircraft cable
  • Rugged 1-1/4" roller axles
  • Multi-position safety locks in each column
  • Adjustable lock ladders
  • Runways feature non-skid surface
  • Push-button pneumatic safety release
  • Independent backup slack-cable safety latches
  • Customizable power unit location
  • Removable approach ramps for additional drive-under clearance
  • Longer approach ramps for low-ground clearance vehicles
  • ETL Approved

For more information check out HD9 Series lifts, HD-9-Clearance-Heights (PDF), Four-Post-Cylinder-Design (JPEG), and How to Determine Your Vehicle's Center of Balance (PDF)

Notes

Due to the shipping weight and dimensions of this item, it is required that it be shipped to a business address that will have either a receiving dock or fork lift at the delivery destination to allow for the item to be unloaded from the truck/trailer at the time of delivery.

Warranties

Duration: From the date of purchase by the original Purchaser or 60-24-12 months from the date of shipment by BendPak or whichever comes first.
  • Five Years (60-Months) Bumper-to-Bumper Warranty on the lift structure
  • Two Years (24-Months) Warranty on the hydraulic cylinder(s) and power unit
  • One Year (12-Months) Labor Warranty on site or at factory

For full warranty details, please see: Two-Post Lifts/Four-Post Lifts Warranty (PDF)
