Behind Rear End Panhard Bar Bracket - Clamp On

Specs
Material Type:
Steel
Sold in Quantity:
Each
Finish:
Natural
Overall Width:
3.500
Notes
5-1/2" from the center of the clamp on bracket to the center or the panhard mount holes.

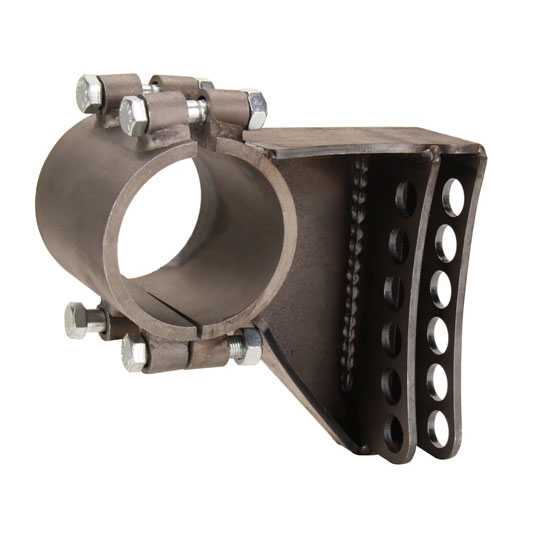

Behind Rear End Panhard Bar Bracket - Clamp On

Click image to enlarge

Details

Reviews (5)

Q & A (4)

What's in the Box

Info

These behind rear end panhard bar brackets have four 3/4" holes for changing roll center and panhard bar angle. Fits 3" axle tube. Clamp-on.

Customer Reviews

Rated 4.6 out of 5 by 5 reviewers.
RATING BREAKDOWN
5 reviews
5 Stars
3
4 Stars
2
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Frisbie17
Verified Reviewer
Vancouver, WA

Panhard Bar Bracket

July 13, 2016
I have bent two of these so far. They are great to use. If you run your panhard bar in the lower holes you can bend or twist these on occasion. I will continue to use them. They are cheap and easily replaceable. Much rather bend the clamp then the frame. I welded on the cap to the back of the rear end. Then just change the front when it bends. Great price. Good product.
Pros:
  • Price
  • Quality
  • Adjustability
Cons:
  • Durability
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

motorsports12
Verified Purchaser
Verified Reviewer
Englewood, Oh

Lots of Adjustment

May 09, 2016
was the closest I could find to the original one that was on the rearend however it was a little too wide but was able to narrow it
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

kmelander
kmelander

Nice piece and great price!

April 02, 2015
This is a nice bracket and the price is right. Unfortunately, it will not allow the panhard bar to clear an aftermarket adjustable coil-over shock bracket. I will have to adapt the bracket to make it work. In the pic below, I have installed the panhard rod end on the outside of the bracket using spacers.
Pros:
  • price and quality
Cons:
  • not long enough to clear shock bracket
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

skullandbones1
Verified Purchaser
AZ

Best built bracket I've ever seen!

July 17, 2014
Used this PHB bracket as attachments for lateral links for Watt's link. Inverting one made them perfect for the upper and lower lateral links. Each corresponding adjustment hole (6) matched side to side. Had to add 3 inch exhaust tubing spacer to fit 8.8 diff but worked perfect when clamped down. Construction and welding is top notch. Looks like robotic welding: it's so perfect. All welds completely penetrating as seen from color change in metal. I could not have duplicated this for near the price. Also, got excellent product info from techs about the spacing and detailed measurements for this item before shipment. Things don't usually work out this perfectly! Thanks, Speedway!
Pros:
  • saved hours fabrication
Cons:
  • a little heavy at 7 lbs
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

PapaTaylor
Verified Purchaser
Oak Harbor Washington

Pan hard bar mount

October 01, 2010
Very nice piece. Easy to install, great welds, nice hardware. Will buy again if I need one in the future. Would recomend to anyone for sure.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

4 questions : 5 answers

2 answers

What is the width of the mounting channel? Need to know if there is room for mis-alignment spacers? Also, the picture shows 6 location holes but the description describes 4. Thanks.

Kimmer71
Clover, SC 29710, USA
March 13, 2015

What is the width of the mounting channel? Need to know if there is room for mis-alignment spacers? Also, the picture shows 6 location holes but the description describes 4. Thanks.

Answers

April 03, 2015
Kimmer71
The channel is 7/8" wide. A 3/4" heim type rod end will fit but there is no room for spacers. There are 6 mounting positions.
March 16, 2015
EricM
The width between the brackets with the holes is .900" which is the correct width for a 3/4" rod end such as 1503012. You will not be able to fit misalignment spacers with this bracket.
1 answers

Do you sell just the round piece that bolts to the axle with out the bracket for the panhard bar

heavychevy
June 18, 2015

Do you sell just the round piece that bolts to the axle with out the bracket for the panhard bar

Answers

June 19, 2015
Eric
Expert
We two clamps for 3" axle tubes which are 10620143B and 10620140C.
1 answers

what is the distance from the axel tube out to mount location of the panhard bar

dirt racer
englewood,oh
April 17, 2016

what is the distance from the axel tube out to mount location of the panhard bar

Answers

April 18, 2016
Eric
Expert
This bracket is 5 1/2" from the center of the clamp on bracket to the center or the panhard mount holes which makes it 4" from the back edge of the axle tube to the center of the panhard mount holes.
1 answers

What is the measurement from center of axle tube clamp to the bottom hole

Levi
Muscatine ia
October 10, 2016

What is the measurement from center of axle tube clamp to the bottom hole

Answers

October 11, 2016
Eric
Expert
The bottom hole in the bracket is 4 1/2" below the center line of the axle tube clamp.
