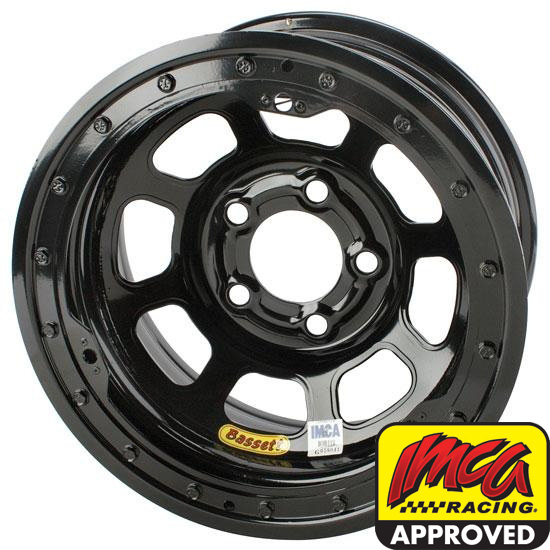

Bassett D-Hole IMCA 15 Inch Wheels, 15 x 8, 5 on 4-3/4, Beadlock, Black
Click image to enlarge
Q & A (1)
What's in the Box
These 15 inch wheels have all the features of the standard Bassett D-Hole wheel with the addition of a beadlock. Bassett's 15 x 8 spun shell beadlock wheel is the only IMCA approved beadlock utilizing 100% spun-form shells and rings. Spun-form shells and rings are stronger, lighter and have less runout than roll-formed beadlock wheels.
Another important feature of the Bassett beadlock is the stepped design of the two rings, which self-centers the tire and makes mounting a breeze. The Bassett beadlock also uses 18 high grade bolts, which clamps more consistently and prevents premature wear and air leaks.
Bassett brought back the 15 x 8 D-Hole style 15 inch wheel for the IMCA and asphalt markets featuring the same high quality spun-form shell as the Inertia Advantage wheel, but at a more economical price.
- 15 Inch Wheel
- 5 on 4-3/4 Inch Bolt Pattern
- IMCA Approved
- Light weight, yet strong enough for 3500 lbs. stock cars
- Beaded shell to prevent tires from rolling off, very durable
- Spun-form shell provides the lowest runout on market (under .030") for better handling
- Valve stem behind center in window
Choose 2", 3", or 4" backspace. Black finish.
Learn more about determining the proper wheel offset, torque sequence, and bolt pattern for your application by reading our tech article. Racing Wheel Principles.
The following must be considered when using Bassett wheels for on highway / street use applications when the wheel/tire assembly is being balanced. Bassett Wheels are lug centric, which means they are built off of and must be balanced using the bolt circle and NOT the wheel center hole. Improper use of a tire balancer that centers the wheel on the hub bore, not the bolt circle will result in an incorrect reading for rim runout, as the center hole is not in the perfect center of the bolt pattern. The only machine capable of performing a lug centric balance is the Hunter GSP 9700 with the flange plate bolt circle adapter and no centering cone.
