Basic Disc Brake Kits: 1965-1968 Chevy Full Size Car

Specs
Material Type:
Steel
Sold in Quantity:
Kit
Finish:
Powder Coated
Hardware Included:
Yes
Material Thickness:
.38
Mounting Bolt Center to Center:
7.00
Garage Sale:
No
Notes
Includes caliper brackets, bolts, and spindle nuts.
Basic Disc Brake Kits: 1965-1968 Chevy Full Size Car

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

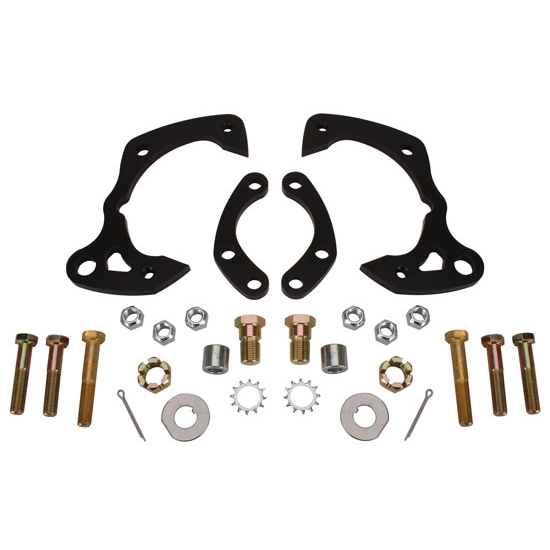

These kits allows you to put disc brakes on your full size 1965-68 Chevy cars such as Bel Air, Biscayne, or Impala. Calipers have 7/16"-20 inlet; for rotors that are 11" with 5 on 4-3/4" bolt pattern.

Kit Includes:

  • Brake Brackets
  • Hardware

Instructions (PDF)

Customer Reviews

This product has no reviews.

Product Q&A

2 questions : 2 answers

Trying to identify a front brake disc conversion kit to my Chevy Impala SS 1967 I would like to have these brackets with a set of two pistons red calipers from Willwood. But not sure what product from Wilwood should I choose. Thanks.

1 answers
ImpalaSS
Mexico
May 27, 2014

Trying to identify a front brake disc conversion kit to my Chevy Impala SS 1967 I would like to have these brackets with a set of two pistons red calipers from Willwood. But not sure what product from Wilwood should I choose. Thanks.

Answers

May 29, 2014
EricM
Bracket set number 91631980 for the 65-68 Chevy utilizes the 69-77 GM calipers that have 7 1/16” center to center slide bolt spacing. We apologize that we do not offer a Wilwood caliper as requested with that mount pattern. We do offer a lightweight Wilwood caliper with different piston size options under part number 8351205289 which may be an option but you will need to contact Wilwood direct for availability of the caliper type preferred.

WHAT ROTORS WILL WORK?I HEARD THAT THE BEARINGS WERE DIFFERENT ON 69 IMPALAS AND OTHERS. THANKS, TOMMY

1 answers
KNUCKLEHEAD
EDMONTON, KY
May 10, 2011

WHAT ROTORS WILL WORK?I HEARD THAT THE BEARINGS WERE DIFFERENT ON 69 IMPALAS AND OTHERS. THANKS, TOMMY

Answers

May 12, 2011
Jason
The rotor designed for this kit are 69-72 CHEVELLE/MONTE CARLO 69-74 NOVA 70-72 CUTLASS/442 69-72 GTO/LE MANS/GRAND PRIX 71-74 PONTIAC VENTURA The kit can be used on '69-70 car but only if '65-68 spindles are used.
Page 1 of 1

You may also be interested in:

1969-1972 GM Midsize 11 Inch Brake Rotor, 5 on 4 3/4 Inch
(Part #91065390)


We stock those hard-to-find replacement brake rotors for your 1969-1972 GM midsize car. These rotors are specifically designed for the rigors of dirt track racing.  Drilled with a 5-on-4.75" bolt circle. Includes 7/16" fine quick-start wheel studs (installed).

  • 1969-1972 GM Midsize
  • 11 Inch Brake Rotor
  • 5 on 4-3/4 Inch
  • 7/16" fine studs installed
  • 11" diameter x 1"
  • IMCA Approved

This rotor is designed for dirt track applications and should NOT be used for asphalt racing.





Speedway 156 1969-77 GM Mid-Size Brake Pads
(Part #9191563)


Speedway Motors is your one-stop shop for GM 1969-77 Midsize caliper brake pads.

Tech Tip:  Only use full metallic pads on coated rotors.

Sold as a pair of 2. One pair will outfit 1 caliper.

Brake Pad Brand Guide (Link)

Learn how to properly Bed-In your brake pads by reading our tech article.  Bedding-In Brake Pad Procedure.



Deluxe Disc Brake Kit 1965-1968 Chevy Full Size Car
(Part #91031912)


These kits allow you to put disc brakes on your full size 1965-68 Chevy cars such as Bel Air, Biscayne, or Impala. Works with most 15" wheels. Kit increases front track width by 11/16" per side and 1-3/8" overall.

Kit Includes:

  • 11" brake rotor, 5 x 4-3/4"
  • Brake pads
  • GM Caliper slide bolts
  • Rebuilt 1969-1977 calipers (7/16"-20 inlets)
  • Brake brackets
  • Rubber Brake Lines
  • Hardware
  • Seals
  • Outer bearing cones
  • Inner bearing cones
  • Spacers
  • Dust caps

Instructions (PDF)



Speedway 1969-77 GM Midsize Caliper
(Part #91031035)
                        Rebuilt 1969-77 mid and full size caliper. 7/16"-20 inlet so you can use the readily available brake hoses and hardware from Pre-1978 GM midsize cars. IMCA approved.

No core charge required. Fits 1" thick rotor. 2.8" diameter pistons installed. It has 7-1/16" center to center mounting holes. The width between mounting tabs is 2-3/4".
Rubber Brake Line Hose Set for 7/16 Inch-20 Calipers
(Part #6178568)


These front brake hoses are designed for 1955-1974 GM front disc brake conversions using stock-style 1969-1988 GM single-piston calipers.

For 7/16"-20 calipers. This hose comes with banjo bolts, but not crush washers.

Wilwood 120-10937 D52 Dual Piston Floater Caliper, 2 Piston/1.04 Disc
(Part #83512010937)
                        The D52 caliper is a direct bolt-on 2 piston replacement for the factory original single calipers on many 1968-96 GM Passenger Vehicles and Trucks. Forged billet aluminum bodies, stainless steel pistons, and competition style high-temperature seals put and end to the rust, bore pitting, and seal failures that plague the OE caliper design. D52 calipers provide low-maintenance performance and a huge weight savings with high temperature reliability for the street and track. D52 calipers mount in the stock location over stock rotors, use the original style OE D52 brake pads and an OE 7/16-20 banjo bolt brake line. Calipers can be used with most wheels that clear the OE calipers. The front calipers with 2.00 piston provide 6.28 cubic inches of piston area per caliper, to maintain the original front to rear brake bias and use of the OE master cylinder. D52 Calipers come hardened slide pins.

Wilwood 120-10937-BK D52 Dual Piston Floater Brake Caliper, Black
(Part #83512010937BK)
                        The D52 caliper is a direct bolt-on 2 piston replacement for the factory original single calipers on many 1968-96 GM Passenger Vehicles and Trucks. Forged billet aluminum bodies, stainless steel pistons, and competition style high-temperature seals put and end to the rust, bore pitting, and seal failures that plague the OE caliper design. D52 calipers provide low-maintenance performance and a huge weight savings with high temperature reliability for the street and track. D52 calipers mount in the stock location over stock rotors, use the original style OE D52 brake pads and an OE 7/16-20 banjo bolt brake line. Calipers can be used with most wheels that clear the OE calipers. The front calipers with 2.00 piston provide 6.28 cubic inches of piston area per caliper, to maintain the original front to rear brake bias and use of the OE master cylinder. D52 Calipers come hardened slide pins.

Wilwood 120-10937-RD D52 Dual Piston Floater Caliper, 2.00 / 1.04 Inch
(Part #83512010937RD)
                        The D52 caliper is a direct bolt-on 2 piston replacement for the factory original single calipers on many 1968-96 GM Passenger Vehicles and Trucks. Forged billet aluminum bodies, stainless steel pistons, and competition style high-temperature seals put and end to the rust, bore pitting, and seal failures that plague the OE caliper design. D52 calipers provide low-maintenance performance and a huge weight savings with high temperature reliability for the street and track. D52 calipers mount in the stock location over stock rotors, use the original style OE D52 brake pads and an OE 7/16-20 banjo bolt brake line. Calipers can be used with most wheels that clear the OE calipers. The front calipers with 2.00 piston provide 6.28 cubic inches of piston area per caliper, to maintain the original front to rear brake bias and use of the OE master cylinder. D52 Calipers come hardened slide pins.
