Basic Coil Spring Kit

Free Shipping Free Shipping
Specs
Material Type:
Steel
Finish:
Painted
Sold in Quantity:
Kit
Tube O.D.:
3.00
Overall Diameter:
5.00
Inside Diameter:
3.50
Outside Diameter:
4.375
Wire Diameter:
.50
Spring Rate:
175
Basic Coil Spring Kit

Click image to enlarge

Please note the following about this product:

  • This item is sold as a kit.

Details

Reviews (4)

Q & A (4)

What's in the Box

Info

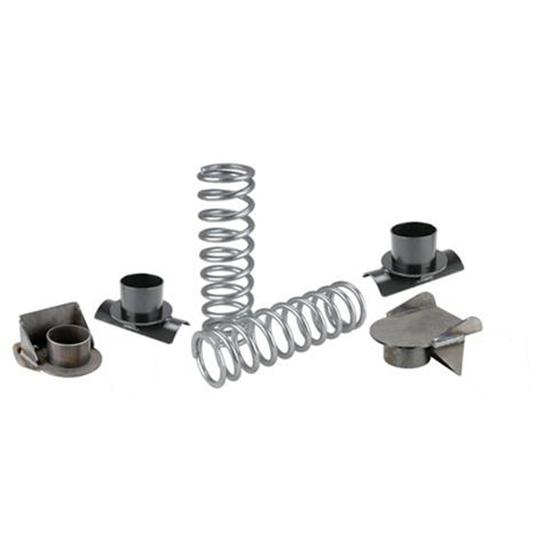

Convert to smooth riding coil springs using your old radius rods with this Basic Coil Spring kit. Kit includes 175 lb. rate coil springs (4-1/2" O.D. x 14") with upper and lower spring mounts. Weld to your 3" axle tubes.

916-49020 Instructions (PDF)

Customer Reviews

Rated 4.8 out of 5 by 4 reviewers.
RATING BREAKDOWN
4 reviews
5 Stars
3
4 Stars
1
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Todd63
Verified Purchaser
Topeka

The kit was well made and worked perfect

May 19, 2014
All parts were well made and worked great for my 28 Model A project.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

YARDS46
Verified Purchaser

EASY TO INSTALL

June 28, 2013
YOU CANNOT MAKE THESE PARTS FOR WHAT THIS KIT COST IT WAS JUST WHAT I NEEDED
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Crash
Verified Purchaser
Olivia TX

Bounce

May 20, 2013
So many quality parts in one kit. Fit perfect on the present T-bucket build.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

casey-rod
Verified Purchaser
fl.

looks good

September 03, 2012
install in 1947 plymouth with c-10 trailing arms. easy to install&looks pro. ?
Pros:
  • Easy To Use
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

4 questions : 6 answers

2 answers

will this spring holdup the rear on a 1965 chevy shortbed pickup

fattommy
winchester v a
August 30, 2011

will this spring holdup the rear on a 1965 chevy shortbed pickup

Answers

May 21, 2013
Crash
It depends upon what is in the bed,
August 31, 2011
John
This coil spring kit is designed for T bucket style vehicles weighing in at 1500-1800 pounds total weight. The springs are only available in the 175 spring rate and this set only uses 4 ½” spring. We do offer some spring pockets and housing mounts for the larger 5” diameter springs such as part number 91720243.
2 answers

Does the spring mount behind the axle? How does the lower spring mount attach to the axle. I have a 28 model A pickup with the coil spring mounted on top of axle makes back end set too high.

weenie 10
wyo
March 20, 2011

Does the spring mount behind the axle? How does the lower spring mount attach to the axle. I have a 28 model A pickup with the coil spring mounted on top of axle makes back end set too high.

Answers

June 29, 2013
YARDS46
I HOPE YOU JUST TACKED MOUNTS IN PLACE IF SO TRY TO SPACE TOP MOUNTS (SEE PHOTO) FLOOR OF BED WILL NEED OPENINGS CUT TO CLEAR SPRING MOUNT. LAST RESORT IS CUT THE COILS OR YOU MIGHT TRY SPRING CLAMPS
March 24, 2011
Pat
Kit p/n 91649020 also mounts the coil spring to the top of the axle which makes the coil spring mount on top of the axle like your does.
1 answers

Trying to find kit for 4 link conversion I'm doing I have a 1947 Ford panel truck. Putting 4 link on rear, I know these are light duty, but with adding air shocks for added control would this kit be viable? I seen the bottom mount for 5" coil spring, but no top, or spring. Thanks

Brokeitalready
April 06, 2015

Trying to find kit for 4 link conversion I'm doing I have a 1947 Ford panel truck. Putting 4 link on rear, I know these are light duty, but with adding air shocks for added control would this kit be viable? I seen the bottom mount for 5" coil spring, but no top, or spring. Thanks

Answers

April 07, 2015
EricM
This is a basic coil spring kit and includes two upper spring mounts designed for our T bucket frames, two lower mounts for a 3” axle housing tube, and two 175 pound springs. These are basically for the T buckets and light roadsters with total vehicle weight of around 2000 pounds and the 4 ½ O.D. springs would likely not be heavy enough for your panel truck. We apologize that other spring rates are NOT available in this diameter of springs. You may want to consider Coil Over suspension or other options.
1 answers

What is the installed height on these springs?

gary
dewey, ok
March 07, 2016

What is the installed height on these springs?

Answers

March 07, 2016
Eric
Expert
The springs in this kit are 14" tall and 175 pound spring rate. You would need to weigh your vehicle to calculate an approximate height of the spring with the weight of the vehicle on it.
Page 1 of 1
