Basic 1923 T Frame Kit w/ Deluxe Body & Bed, Flat Floor

Basic 1923 T Frame Kit w/ Deluxe Body & Bed, Flat Floor
VIDEO
Basic 1923 T Frame Kit w/ Deluxe Body & Bed, Flat Floor

Click image to enlarge

Details

Reviews (0)

Q & A (1)

What's in the Box

Info

It doesnt get any simpler than this! Our most basic T-bucket frame is engineered for a simple and economical coil spring rear suspension with traditional-style radius rods. The front suspension is our time-tested transverse-leaf, spring-behind-axle setup with hairpin-style radius rods. Designed for the do-it-yourselfer, this frame has no front shock mounts - you can fabricate your own or choose from those offered by Speedway!

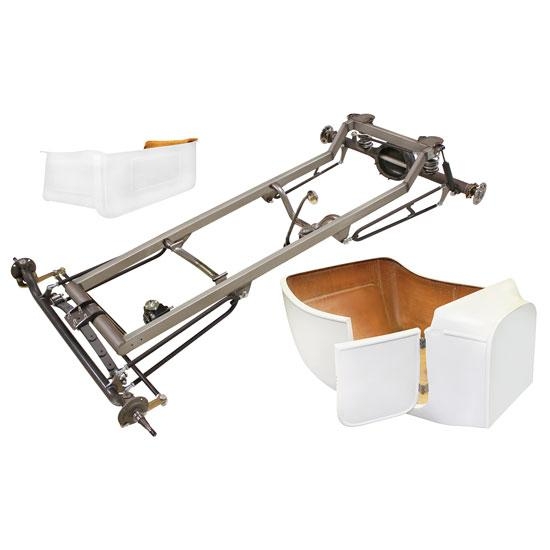

Shown with optional rearend and engine mounts installed. This part number does not include a rear axle housing or engine/transmission mounts (as pictured). If you wish to add these items to your chassis, simply purchase these items along with your frame kit.

Body Dimensions

  • Total Length:  52"
  • Firewall Width:  26.5"
  • Body Width:  45"
  • Body Height:  24"

Chassis Exploded View (Link)

This item requires a 3-4 week build time.

Item Details

Door is Hung

Notes

  1. If ordering the body kit without a floor (715-3001), please note that the door will not be hung. If you order a body kit with a floor (715-3011 or 7153021), the door will be fitted & hung on its hinges before shipping.

Frame Assembly

  • 1-1/2 X 3" Rectangular steel tube frame with 102" wheelbase
  • 3" O.D. round tube front crossmember
  • Spring-behind front suspension with 4" drop tube axle and hairpin radius rods
  • Choice of '37-'48 Ford or '49-'54 Chevy-style spindles with king pins fitted
  • Coil spring rear suspension with panhard bar
  • Cross Steering with Vega steering box
  • Frame assembly includes: front spring, axle, spindles, rear coil springs, rear shocks, and panhard bar; front and rear radius rods; Vega steering box with pitman arm; master cylinder, bracket and pedal
  • Available with plain or chrome suspension components

Deluxe Body

  • Rugged fiberglass body
  • Hinged right hand door
  • Flat, smooth firewall
  • Molded-in flat dash
  • Body lip around top edge to attach upholstery
  • One-piece 20" T pickup bed
  • Flat Floor

Customer Reviews

This product has no reviews.

Product Q&A

1 questions : 1 answers

1 answers

can you get this with both door to open

glen
salem,ohio
December 14, 2015

can you get this with both door to open

Answers

December 14, 2015
John
Expert
We apologize but the 23-25 T buckets are only offered with the passenger side door.
