Basic 1923 T-Bucket Frame Kit w/ Standard Body and Bed, Unchanneled Floor

SAME DAY SHIPPING! Order within the next 10 hours 51 minutes and receive same day shipping

Basic 1923 T-Bucket Frame Kit w/ Standard Body and Bed, Unchanneled Floor
Product Video
Basic 1923 T-Bucket Frame Kit w/ Standard Body and Bed, Unchanneled Floor

Click image to enlarge

Watch the videos below to learn more about Speedway Motors T-Bucket body styles and configurations, general assembly and the completed project.







Watch the video below to learn more about Speedway Motors street rod spindles.

Details

Reviews

Q & A

What's in the Box

It doesnt get any simpler than this! Our most basic T-bucket frame is engineered for a simple and economical coil spring rear suspension with traditional-style radius rods. The front suspension is our time-tested transverse-leaf, spring-behind-axle setup with hairpin-style radius rods. Designed for the do-it-yourselfer, this frame has no front shock mounts - you can fabricate your own or choose from those offered by Speedway!

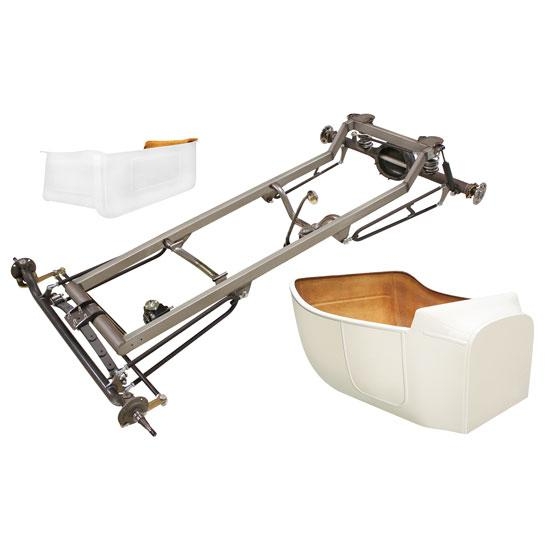

Shown with optional rearend and engine mounts installed. This part number does not include a rear axle housing or engine/transmission mounts (as pictured). If you wish to add these items to your chassis, simply purchase these items along with your frame kit.

All of our T kits are also available with chrome suspension.  This option includes chrome plated: front and rear hairpins, rear coilovers, front axle, front leaf spring, front shocks, steering arms, tie rod, drag link, and related hardware.

Chassis Exploded View (Link)

This item requires a 3-4 week build time.

Item Details

Body 715-2252

Notes

Frame Assembly
  • 1-1/2 X 3" Rectangular steel tube frame with 102" wheelbase
  • 3" O.D. round tube front crossmember
  • Spring-behind front suspension with 4" drop tube axle and hairpin radius rods
  • Choice of '37-'48 Ford or '49-'54 Chevy-style spindles with king pins fitted
  • Coil spring rear suspension with panhard bar
  • Cross Steering with Vega steering box
  • Frame assembly includes: front spring, axle, spindles, rear coil springs, rear shocks, and panhard bar; front and rear radius rods; Vega steering box with pitman arm; master cylinder, bracket and pedal
  • Available with plain or chrome suspension components

Standard Body

  • Rugged 1-piece fiberglass body
  • Flat, smooth firewall
  • Molded-in flat dash
  • Body lip around top edge to attach upholstery
  • One-piece 20" T pickup bed
  • Available with an un-channeled floor

Specs

  • Body Dimensions
    • Total Length:  52"
    • Firewall Width:  26.5"
    • Body Width:  45"
    • Body Height:  24"

Customer Reviews

This product has no reviews.

Product Q&A

1 questions : 1 answers

1 answers

can i put a big block mopor in this 383

steveH
Las Vegas, NV, USA
March 01, 2014

can i put a big block mopor in this 383

Answers

March 03, 2014
EricM
Our standard T bucket frames are more commonly used on small block applications but many customers have installed just about everything including the big block Mopar engines. You will need to verify the length requirement between the firewall and the radiator and in many cases the frame will require some stretching to allow ample room.
Page 1 of 1

You may also be interested in:

Deluxe 1923 T-Bucket Frame Kit w/ Deluxe Body and Bed, No Floor
(Part #7153400)
                        The all new Deluxe T frame is engineered to deliver the ultimate ride and handling of any T-bucket chassis! An exclusive triangulated four-bar rear suspension with coilover shocks and urethane bushings provides unparalleled adjustability and traction control, plus better ride quality than any other T-bucket chassis on the market. Its paired with urethane-bushed four-bars supporting the spring-behind-axle front suspension. The Deluxe 23 T sets a new standard for the next generation of T-buckets!

Shown with optional rearend and engine mounts installed. This part number does not include a rear axle housing or engine/transmission mounts (as pictured). If you wish to add these items to your chassis, simply purchase these items along with your frame kit.

Chassis Exploded View (Link)

This product requires a 3-4 week build time.

If ordering the body kit without a floor, please note that the door will not be hung. If you order a body kit with a floor (715-3211 or 715-3221), the door will be fitted & hung on its hinges before shipping.

Item Details

No Floor, Door Not Hung
Basic 1923 T-Bucket Frame Kit
(Part #7151000)


It doesn't get any simpler than this! Our most basic T-bucket frame is engineered for a simple and economical coil spring rear suspension with traditional-style radius rods. The front suspension is our time-tested transverse-leaf, spring-behind-axle setup with hairpin-style radius rods. Designed for the do-it-yourselfer, this frame has no front shock mounts - you can fabricate your own or choose from those offered by Speedway!

Shown with optional rearend and engine mounts installed. This part number does not include a rear axle housing or engine/transmission mounts (as pictured). If you wish to add these items to your chassis, simply purchase these items along with your frame kit.

All of our T kits are also available with chrome suspension.  This option includes chrome plated: front and rear hairpins, rear coilovers, front axle, front leaf spring, front shocks, steering arms, tie rod, drag link, and related hardware.

Chassis Exploded View (Link)

This item requires a 3-4 week build time.





Basic 1923 T-Bucket Frame Kit w/ Standard Body and Bed, No Floor
(Part #7152001)


It doesnt get any simpler than this! Our most basic T-bucket frame is engineered for a simple and economical coil spring rear suspension with traditional-style radius rods. The front suspension is our time-tested transverse-leaf, spring-behind-axle setup with hairpin-style radius rods. Designed for the do-it-yourselfer, this frame has no front shock mounts - you can fabricate your own or choose from those offered by Speedway!

Shown with optional rearend and engine mounts installed. This part number does not include a rear axle housing or engine/transmission mounts (as pictured). If you wish to add these items to your chassis, simply purchase these items along with your frame kit.

All of our T kits are also available with chrome suspension.  This option includes chrome plated: front and rear hairpins, rear coilovers, front axle, front leaf spring, front shocks, steering arms, tie rod, drag link, and related hardware.

Chassis Exploded View (Link)

This item requires a 3-4 week build time.

Item Details

No Floor
Body 900-2220
T-Bucket Assembly Manual
(Part #715900)


This manual shows you how to assemble one of our 1923 T-bucket or 1927 T Roadster kits. It's full of photos and step-by-step instructions to clearly illustrate the assembly process. Manual now includes chapters on installing the engine and drivetrain, preparing and intalling the body, windshield, wiring, and even how to install upholstery.

If you're considering a T-bucket purchase, you can purchase this manual first to see what it takes to build it yourself. The manual's price is fully refundable with the purchase of a 1923 or 1927 T kit.

NOTE:    This manual provides detailed examples on the assembly of a traditional T-bucket.  The manual does not provide in detail the assembly of our Tribute-T, but can be used as a generic reference to cover basic concepts.

9 Inch Ford Rear Axle Option
(Part #715700)


This all-new 9" Ford housing features big bearing ends (bearings included) and lifetime warranty 31-spline axles with dual bolt patterns (5 x 4.5" and 5 x 4.75"). Center section NOT included.

Note: When this item is ordered with a T-Bucket frame kit, the housing will be shipped with all necessary suspension brackets welded to it, according to the chassis you order.

Basic 1923 T-Bucket Frame Kit w/ Standard Body and Bed, Channeled Floor
(Part #7152021)


It doesnt get any simpler than this! Our most basic T-bucket frame is engineered for a simple and economical coil spring rear suspension with traditional-style radius rods. The front suspension is our time-tested transverse-leaf, spring-behind-axle setup with hairpin-style radius rods. Designed for the do-it-yourselfer, this frame has no front shock mounts - you can fabricate your own or choose from those offered by Speedway!

Shown with optional rearend and engine mounts installed. This part number does not include a rear axle housing or engine/transmission mounts (as pictured). If you wish to add these items to your chassis, simply purchase these items along with your frame kit.

All of our T kits are also available with chrome suspension.  This option includes chrome plated: front and rear hairpins, rear coilovers, front axle, front leaf spring, front shocks, steering arms, tie rod, drag link, and related hardware.

Chassis Exploded View (Link)

This item requires a 3-4 week build time.

Item Details

Body 715-2257
50 Degree Column Mount for T-Kit
(Part #7154250)

  • Bracket puts the column at a 50 degree angle to the firewall
  • Designed to be used in conjunction with our 1-3/4" diameter stainless or plain steel hot rod steering columns
Small Block Chevy and TH350 Auto Trans Mount Option For T Frame Kit
(Part #715500)


This T frame kit option includes tubular engine and transmission crossmembers welded into a '23 or '27 T-Bucket frame. Will accept S/B Chevy engine and TH-350 or TH-400 transmissions.

Note: When ordering this option with a T-Bucket frame kit, the frame will be shipped with these crossmembers welded to it.  As such, this engine/transmission crossmember option must be ordered with a T frame kit.   This is not available separate of a T frame kit.

If you are interested in the mounts separate of the T frame kit, please see the suggested items found below.

Small Block Ford and C4 Auto Trans Mount Option for T Frame Kit
(Part #715600)


This T-frame option will include tubular engine and transmission crossmembers welded into your '23 or '27 T-Bucket chassis. Will accept S/B Ford engine and C-4 transmission only.

Note: When ordering this option with a T-Bucket frame kit, the frame will be shipped with these crossmembers welded to it.  As such, this engine/transmission crossmember option must be ordered with a T Frame kit. This is not available separate of a T frame kit.

  • When this item is ordered with a T-Bucket frame kit, the frame will be shipped with these crossmembers welded to it.
  • Due to clearance issue with the Vega steering box, you will need to either remote mount the oil filter or make use of the 90 degree oil filter adaptor # 910-6880.
