Basic 1923 T-Bucket Frame Kit

Price: $124.99 - $3,999.99
Click image to enlarge Click image to enlarge
  • Basic 1923 T-Bucket Frame Kit
  • Basic 1923 T-Bucket Frame Kit
Watch the videos below to learn more about Speedway Motors T-Bucket body styles and configurations, general assembly and the completed project.







Watch the video below to learn more about Speedway Motors street rod spindles.



It doesn't get any simpler than this! Our most basic T-bucket frame is engineered for a simple and economical coil spring rear suspension with traditional-style radius rods. The front suspension is our time-tested transverse-leaf, spring-behind-axle setup with hairpin-style radius rods. Designed for the do-it-yourselfer, this frame has no front shock mounts - you can fabricate your own or choose from those offered by Speedway!

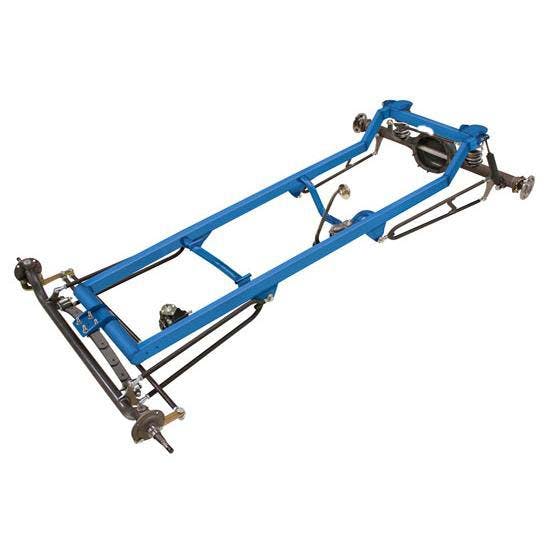

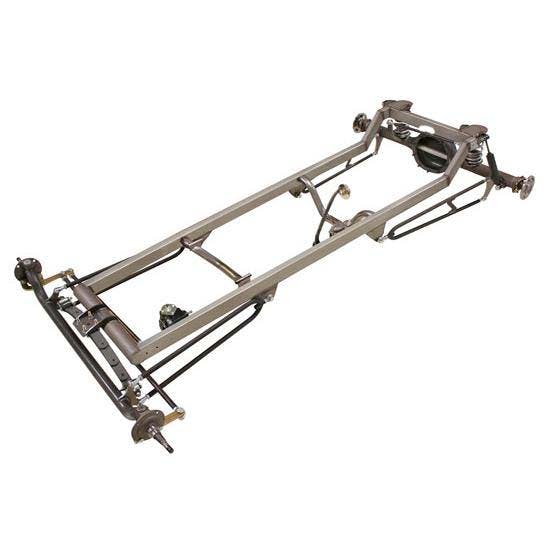

Shown with optional rearend and engine mounts installed. This part number does not include a rear axle housing or engine/transmission mounts (as pictured). If you wish to add these items to your chassis, simply purchase these items along with your frame kit.

Chassis Exploded View (Link)

This item requires a 3-4 week build time.





  • 1-1/2 X 3" Rectangular steel tube frame with 102" wheelbase
  • 3" O.D. round tube front crossmember
  • Spring-behind front suspension with 4" drop tube axle and hairpin radius rods
  • Choice of '37-'48 Ford or '49-'54 Chevy-style spindles with king pins fitted
  • Coil spring rear suspension with panhard bar
  • Cross Steering with Vega steering box
  • Frame assembly includes: front spring, axle, spindles, rear coil springs, rear shocks, and panhard bar; front and rear radius rods; Vega steering box with pitman arm; master cylinder, bracket and pedal
  • Available with plain or chrome suspension components
Reviews for Item #: 7151000
Be the first to review this product. Write a Review


Questions and Answers for Item #: 7151000

Get your questions answered by the community. Ask or answer questions below.

2 Questions | 2 Answers
Displaying Questions 1-2 of 2
Processing

Q:

can you put a 1932 bantam body on this frame

Asked on 5/8/2011 12:25:20 PM by darly from

Answers (1) Know the answer? Answer this question

Q:

will this frame handle a mildly built big block chevy?

Asked on 6/24/2011 2:18:59 AM by darly from

Answers (1) Know the answer? Answer this question
