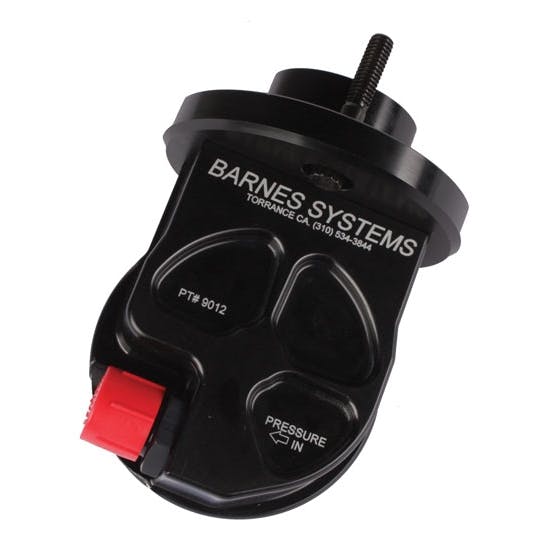

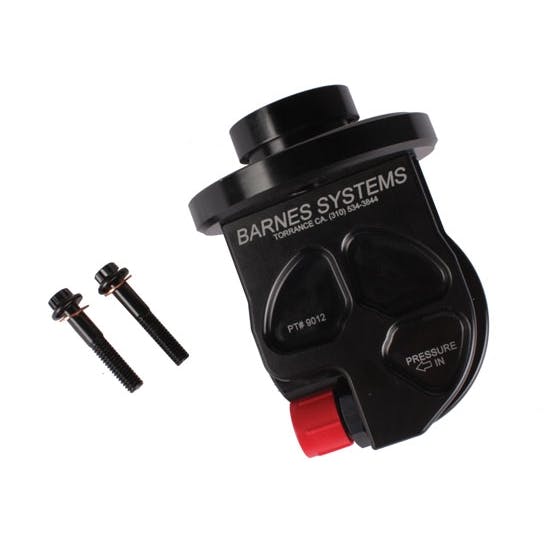

Barnes Systems 9012 Small Block Chevy External Dry Sump Adapter

SAME DAY SHIPPING!

Specs
Material Type:
Aluminum
Sold in Quantity:
Each
Finish:
Anodized
Outlet Fitting:
AN-10
Gasket(s) Included:
Yes
Hardware Included:
Yes
Mounting Thread Material:
Steel
Notes
Fits small block Chevy.

Share by Email

From
To

Click image to enlarge

X

Details

Reviews

Q & A

What's in the Box

Provides oil from external dry sump oil pumps. With AN 10 fitting for supplying oil to the small block Chevy engine from the oil pump. Eliminates need to machine block for oil inlet fittings. Fits Small Block Chevy.
