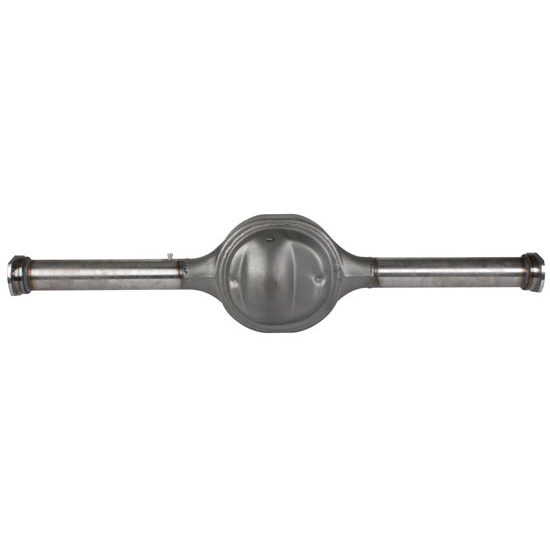

Bare 58 Inch Centered 9 Inch Ford Rear Axle Housing

Specs
Material Type:
Steel
Sold in Quantity:
Each
Finish:
Natural
Hardware Included:
Yes
Overall Width:
58.00
Tube O.D.:
3.00
Notes
Includes T-bolts and housing studs.
Bare 58 Inch Centered 9 Inch Ford Rear Axle Housing

Click image to enlarge

Details

Reviews (1)

Q & A (4)

What's in the Box

Info

Our economical 9" Ford rear axle housing features a reclaimed center section, new 3" axle tubes, and new-style Ford ends. Total track width is 58" from hub-to-hub. You will need one 29-5/8" long axle and one 27-3/8" long axle.  Includes 8 T-bolts for the axle bearing retainer plates and 10 studs for the 3rd member.

The pumpkin is centered in the housing, which puts the pinion offset 1 5/8" from center.

Third member sold separately.



Customer Reviews

Rated 1 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
0
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
1
RECOMMEND THIS PRODUCT:

dazzln13

problems with 9" rearend housing

September 04, 2013
Working with my second housing. The first was badly pitted and was not straight. Was replaced right away. The current one is much better in appearance but also is not straight. Instead of returning it I am dealing with a local company to try to have it straightened.
No, I would not recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

4 questions : 4 answers

1 answers

is your measurement of 58 from axle flange to axle flange.which woul be stock dimension for monte carlo.

cd524
November 10, 2014

is your measurement of 58 from axle flange to axle flange.which woul be stock dimension for monte carlo.

Answers

November 10, 2014
EricM
Yes the 58" measurement is from axle flange to axle flange.
1 answers

rear can i get the rear more narrow

javelinkid
ny
October 11, 2014

rear can i get the rear more narrow

Answers

October 13, 2014
EricM
The narrowest we offer is a 56" housing part number 91046100.
1 answers

Will this housing fit a 55-62 Ford 9" third member?

BKFab
Lodi, CA, USA
May 25, 2013

Will this housing fit a 55-62 Ford 9" third member?

Answers

May 29, 2013
Jason
Rear axle housing number 91046105 should accept all 9” passenger car third members. In the early 55-58 there have been slight variations noted which were all standardized by 59. The housing ends are for the new style big bearing style axles and requires an axle 27 3/8” and also 29 5/8”.
1 answers

Upon installation of your 3rd member, will the pinion be centered?

tfeverfred
January 29, 2016

Upon installation of your 3rd member, will the pinion be centered?

Answers

February 01, 2016
Eric
Expert
The pumpkin of this rear end housing is centered. That will make the pinion offset about 1 1/4". With a 9" Ford rear end you can have the pumpkin centered or the pinion centered but it is impossible to have both. This pumpkin centered rear end housing makes building a triangulated four link system much easier.
Page 1 of 1
