Bare 56 Inch Centered 9 Inch Ford Housing

SAME DAY SHIPPING! Order within the next 16 hours 5 minutes and receive same day shipping

Free Shipping Free Shipping

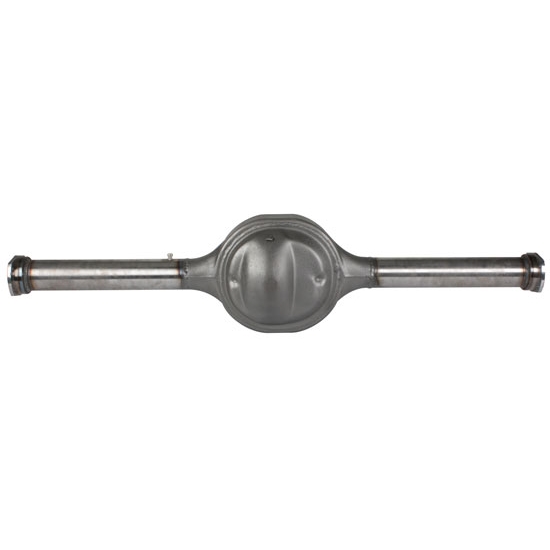

Bare 56 Inch Centered 9 Inch Ford Housing

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Our economical 9" Ford rear axle housing features a reclaimed center section, new 3" axle tubes, and new-style Ford ends. Total track width is 56" from hub-to-hub. You will need one 26-3/8" long axle and one 28-5/8" long axle.  Includes 8 T-bolts for the axle bearing retainer plates and 10 studs for the 3rd member.

Third member sold separately.

Note: The pumpkin is centered in the housing, which puts the pinion 1" offset from center.

Item Details

Note: 56" from axle hub-to-hub

Specs

  • This is 51" from flange to flange
  • The pinion hump in the housing lies between 22" - 27" overall
  • This centers at the highest point at 24.5"
  • The center of the housing is at 25.5" so this housing is 1" offset from center.

Customer Reviews

Rated 5 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
1
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

tomsrodshop
Verified Purchaser

GOOD QUALITY STUFF!

January 24, 2015
First of many parts I need for my new 32 Ford project. Thanks Speedway.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

6 questions : 6 answers

1 answers

Would I be able to use this with the Tribute?

Larry
Ohio
April 12, 2011

Would I be able to use this with the Tribute?

Answers

April 15, 2011
Clark
It appears that the centered-pinion 9” Ford housing is NOT a good match for the Tribute T. The centered pinion causes the center section to be offset. From the rear of the car, the center section would look lop-sided in the arch of the spring. If one were to use a 9” Ford with the center section actually CENTERED in the housing, the pinion would be offset. That would cause the driveshaft to be offset, and it wouldn’t fit in the floor tunnel. Sometimes, ya just can’t win.
1 answers

Do you offer this housing with the small bearing ends, 2.834"?

Jeffn
October 16, 2012

Do you offer this housing with the small bearing ends, 2.834"?

Answers

October 17, 2012
Jason
We apologize for the inconvenience but currently Speedway does not offer the centered housing with the small bearing ends. You may want to check with Moser or Currie for availability.
1 answers

In the description it lists the pinion as centered. However in the notes it says:" the pumpkin is centered leaving the pinion offset." Which one is it? If it is offset how far and which direction is it offset?

October 08, 2012

In the description it lists the pinion as centered. However in the notes it says:" the pumpkin is centered leaving the pinion offset." Which one is it? If it is offset how far and which direction is it offset?

Answers

October 15, 2012
Jason
These rear ends have centered pumpkins for hot rod applications and this puts the pinion 1" offset from center.
1 answers

would this rear end housing be the correct width for the 1927 t bucket bare frame thank you for your time

burt
chgo il
June 17, 2015

would this rear end housing be the correct width for the 1927 t bucket bare frame thank you for your time

Answers

June 18, 2015
Eric
Expert
Yes a 56" wide rear end is common for T buckets.
1 answers

Sorry to bother you again, I have another question, I am building a 1932 Grafitti coupe and was told to use a 56" rearend housing, but I am confused on ordering as it says to measurements and I am not sure which is right. Item # 910-46100 says 51" from flange to flange and 56" from axle hub to axle hub. Now I am not sure what 56" they were talking about when they told me to use a 56" rearend, if this makes sense ????

Ray Ellis
CT.
June 18, 2015

Sorry to bother you again, I have another question, I am building a 1932 Grafitti coupe and was told to use a 56" rearend housing, but I am confused on ordering as it says to measurements and I am not sure which is right. Item # 910-46100 says 51" from flange to flange and 56" from axle hub to axle hub. Now I am not sure what 56" they were talking about when they told me to use a 56" rearend, if this makes sense ????

Answers

June 18, 2015
Eric
Expert
You would need to talk with whomever recommended you a 56" rear end to be certain what measurement they were referring to. In general we at Speedway Motors are only concerned with the hub to hub (or axle face to axle face) measurement which is 56" on this rear end. That is the most critical measurement because that is where your wheels bolt on. A 56" rear end is commonly used in 32 Ford's.
1 answers

I need the following 56" from axle flange to axle flange or overall width ???? Is this the correct item and length ????

Ray Ellis
CT.
June 18, 2015

I need the following 56" from axle flange to axle flange or overall width ???? Is this the correct item and length ????

Answers

June 19, 2015
Eric
Expert
This rear end is 56" from axle flange to axle flange.
Page 1 of 1

You may also be interested in:

Currie 9 Inch Ford Rear Axle Kit
(Part #91045100)


Currie's Universal Hot Rod Ford 9" kit includes a brand new 56" housing, lifetime warranty 31 spline axles, new axle bearings and seals, and new style big Ford ends.

  • Housing is 56" from axle face to axle face
  • Axles drilled for 5 x 4-1/2" Ford/Mopar and 5 x 4-3/4" Chevy/GM bolt patterns
  • Includes wheel studs, 1/2"-20 Ford and 7/16"-20 Chevy
  • 1/4" heavy duty late model large bearing style retainer plates

Note: Axle bearing does not come pressed onto the axle shaft, and wheel studs are not installed. Third member not included.

Currie Rear Axle Installation Instructions

How to Measure Your Housing Tech Tip (Link)

Need a certain length not found on our site?  Check out Currie's 9+ Rearend Calculator to have specially sized axles or rearend housings made for your specific application.  Custom orders will be built and processed directly through Currie Enterprizes and shipped to your door. For ease of ordering, please refer to Currie's Dimension Diagram

Installation Notes:

When installing new axles in rearends with posi traction differentials, be sure to install the driver's side axle first to keep the splines properly aligned.  Failure to do so may move the two splined gears out of alignment, and it may be difficult to install the driver's side axle properly if the passenger side axle is already installed.

If installation of passenger side axle is done first it may require two people when installing the driver's side axle, with both parties rotating reach axle until splines are in line and the driver's side axle fully sides into the housing.

To ensure you get the most out of your new 9 Inch components, Currie recommends that you perform a proper break-in process:

  • Use a name brand mineral-based gear oil, preferably 85w140 (Extremely high quality synthetic oils may be used once break-in process has been successfully performed)
  • Place vehicle on jack stands and let the rearend spin while the vehicle idles - run transmission in both forward and reverse periodically throughout the process
  • Continue to run the rearend until the pinion gets hot (place hand on bottom of the differential housing to verify this)
  • Proper break-in allows:
    • The ability to install new axles and hit the track the same day without worry
    • Extended life for rearend components
    • Keeps the quality and life of your gear oil

Note: If you find that your rearend is running somewhat "tight" be sure to add Currie's 9+ Friction Modifier to "loosen up".  If a more aggressive performance is desired, Friction Modifier is not needed.





Ford 9 Inch Posi Traction Third Member Assembly
(Part #91048345)


If you’re looking for a complete third member for your Ford 9-inch rear end housing, but want the added performance of a limited slip differential, Speedway Motors now offers you a 9" Ford street 3rd member for your street rod. We start with reclaimed, genuine Ford 9-inch carrier housings and then clean and inspect them prior to installing all-new bearings, seals, a 1310-series yoke, and your choice of ring-and-pinion gears. The 1310-series yoke is the correct size for many Ford applications with cups 1-1/16 inch in outside diameter and a span of 3-7/32 inch across.

These Ford 9 inch third member assemblies feature a Richmond Powertrax Grip Pro differential available in 28 or 31 spline axle shaft configurations. This clutch-type differential is perfect for light-to-medium weight street vehicles where one wants posi-action and long clutch life, without the adverse handling effects or noise of a full locker. When coasting around turns, the clutches are disengaged to extend clutch life. When accelerating in a straight line on dry pavement, the clutches engage, sending equal power to both wheels for maximum traction. This makes them ideal for street use, with the occasional trip to the drag strip as well.

All third members are assembled by our team of professionals and are delivered to you in a handy plastic carrying case, for an overall value that can’t be beat

Available in your choice of 3.50, 3.70, 3.89, 4.11 or 4.56 gear ratio.

Gear lube recommendations :

  • 910-44090 - for street and every day driving under normal conditions
  • 910-44140 -  for extreme duty, towing, or very hot climates

Instructions (PDF)

Speedway Weld-On Spring Pad for 3 Inch Axle Tube
(Part #54585090)


These weld-on leaf spring pads fit 3" diameter axle tubes. Works with all 2-1/2" wide leaf springs.

NEW Ford 9 Inch Posi Traction Third Member
(Part #91048445)


Our completely NEW 9" Ford third members start with a heavy duty cast iron carrier featuring the larger, cast iron Daytona pinion support. Then we use a Richmond Powertrax Grip Pro differential in your choice of 28 or 31 spline.

All third members are assembled by our team of professionals and are delivered to you in a handy plastic carrying case, for an overall value that can’t be beat

Available in your choice of 3.50, 3.70, 3.89, 4.11 or 4.56 gear ratio ring & pinion.

Bare 56 Inch Centered 9 Inch Ford Housing w/ Axles
(Part #91046110)


Our economical 9" Ford rear axle housing features a reclaimed center section, new 3" axle tubes, and new-style Ford ends. Total track width is 56" from hub-to-hub.   The pumpkin is centered in the housing, which puts the pinion offset 2-3/8" from center

Includes a set of Currie 31-spline heat-treated, forged alloy axle shafts. Wheel bolt patterns are dual drilled for 5 on 4 1/2" Ford and 5 on 4 3/4" Chevy, and an access hole is drilled. Axles come with a full installation package which includes one set of five 1/2"-20 Ford style wheel studs, one set of five 7/16"-20 Chevy style wheel studs, one set-20 tapered roller bearing with race, seal, & collar, and one heavy duty late model large bearing style retainer plate. Axle bearing does not come pressed onto the axle shaft, and wheel studs are not installed.

Third member sold separately.

Currie CE-98129-28625 28-5/8 Long Rear Axle
(Part #91046109)


Currie axle made to work in the 56" centered Speedway Motors Ford 9" rear housing (910-46110). Our matched axle to complete the set (910-46108). 26-3/8 inches long. Drilled for 5 on 4 1/2 and 5 on 4 3/4 bolt pattern.

  • 9 Inch Ford
  • 31 Spline
  • 28-5/8 Inch Long
  • 20-30% stronger than factory axles - increased depth allows for flex without breaking
  • Drilled for both 5 on 4-1/2" and 5 on 4-3/4" wheel bolt patterns
  • Includes both 7/16"-20 and 1/2"-20 wheel studs
  • Compatible with "Big Ford - New Style" housing and brakes with 2-1/2" offset
  • Includes a set-20 bearing and retainer you will have to press on
  • Axles sold each, not as a pair

Currie Rear Axle Installation Instructions

How to Measure Your Housing Tech Tip (Link)

Need a certain length not found on our site?  Check out Currie's 9+ Rearend Calculator to have specially sized axles or rearend housings made for your specific application.  Custom orders will be built and processed directly through Currie Enterprizes and shipped to your door. For ease of ordering, please refer to Currie's Dimension Diagram

Installation Notes:

When installing new axles in rearends with posi traction differentials, be sure to install the driver's side axle first to keep the splines properly aligned.  Failure to do so may move the two splined gears out of alignment, and it may be difficult to install the driver's side axle properly if the passenger side axle is already installed.

If installation of passenger side axle is done first it may require two people when installing the driver's side axle, with both parties rotating reach axle until splines are in line and the driver's side axle fully sides into the housing.

To ensure you get the most out of your new 9 Inch components, Currie recommends that you perform a proper break-in process:

  • Use a name brand mineral-based gear oil, preferably 85w140 (Extremely high quality synthetic oils may be used once break-in process has been successfully performed)
  • Place vehicle on jack stands and let the rearend spin while the vehicle idles - run transmission in both forward and reverse periodically throughout the process
  • Continue to run the rearend until the pinion gets hot (place hand on bottom of the differential housing to verify this)
  • Proper break-in allows:
    • The ability to install new axles and hit the track the same day without worry
    • Extended life for rearend components
    • Keeps the quality and life of your gear oil

Note: If you find that your rearend is running somewhat "tight" be sure to add Currie's 9+ Friction Modifier to "loosen up".  If a more aggressive performance is desired, Friction Modifier is not needed.



Currie CE-98129-26375 31 Spline Axle 26-3/8 Inch Long
(Part #91046108)


Currie axle made to work in the 56" centered Speedway Motors Ford 9" rear housing (910-46100). Our matched axle to complete the set is part number 910-46109 (28-5/8" long).

  • 9 Inch Ford
  • 31 Spline
  • 26-3/8 Inch Long
  • 20-30% stronger than factory axles - increased depth allows for flex without breaking
  • Drilled for both 5 on 4-1/2" and 5 on 4-3/4" wheel bolt patterns
  • Includes both 7/16"-20 and 1/2"-20 wheel studs
  • Compatible with "Big Ford - New Style" housing and brakes with 2-1/2" offset
  • Includes a set-20 bearing and retainer you will have to press on
  • Axles sold each, not as a pair

Currie Rear Axle Installation Instructions

How to Measure Your Housing Tech Tip (Link)

Need a certain length not found on our site?  Check out Currie's 9+ Rearend Calculator to have specially sized axles or rearend housings made for your specific application.  Custom orders will be built and processed directly through Currie Enterprizes and shipped to your door. For ease of ordering, please refer to Currie's Dimension Diagram

Installation Notes:

When installing new axles in rearends with posi traction differentials, be sure to install the driver's side axle first to keep the splines properly aligned.  Failure to do so may move the two splined gears out of alignment, and it may be difficult to install the driver's side axle properly if the passenger side axle is already installed.

If installation of passenger side axle is done first it may require two people when installing the driver's side axle, with both parties rotating reach axle until splines are in line and the driver's side axle fully sides into the housing.

To ensure you get the most out of your new 9 Inch components, Currie recommends that you perform a proper break-in process:

  • Use a name brand mineral-based gear oil, preferably 85w140 (Extremely high quality synthetic oils may be used once break-in process has been successfully performed)
  • Place vehicle on jack stands and let the rearend spin while the vehicle idles - run transmission in both forward and reverse periodically throughout the process
  • Continue to run the rearend until the pinion gets hot (place hand on bottom of the differential housing to verify this)
  • Proper break-in allows:
    • The ability to install new axles and hit the track the same day without worry
    • Extended life for rearend components
    • Keeps the quality and life of your gear oil

Note: If you find that your rearend is running somewhat "tight" be sure to add Currie's 9+ Friction Modifier to "loosen up".  If a more aggressive performance is desired, Friction Modifier is not needed.





Axle Bearing and Seal Replacement for Currie 9 Inch Housing Big Ford
(Part #9108015)


This "large bearing" tapered roller axle bearing axle bearing and seal kit is a replacement for Currie 9 Inch housing, all 9" Ford tapered bearing rearend applications, or any rearend that has had a 9" Ford style housing end and axle conversion performed.

Includes: 1 bearing, 1 bearing race, 1 bearing grease seal, and 1 bearing retaining collar. Sold per 1 set of 4 mentioned pieces.

  • Heavy duty replacement "20 Set" bearing, seal and collar
  • 1.563" I.D., and 3.150" O.D.
  • Press fit bearing and collar
  • 2 sets required per vehicle
