Billet FM2222PC B/B Chevy Mid Mount Serpentine Conversion Kit Press-On

SAME DAY SHIPPING! Order within the next 1 hour 36 minutes and receive same day shipping

Free Shipping Free Shipping

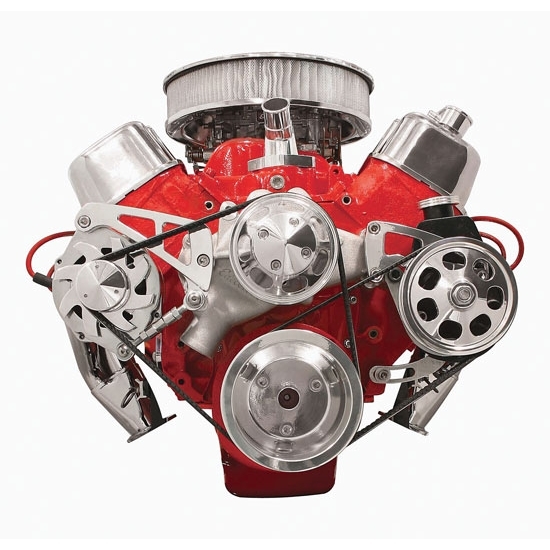

Billet FM2222PC B/B Chevy Mid Mount Serpentine Conversion Kit Press-On

Click image to enlarge

Please NOTE the following about this product:

  • This item is sold as a kit.

Details

Reviews

Q & A

What's in the Box

Genuine Billet Specialties style, quality, fit and finish are engineered into these serpentine conversion kits. All brackets and pulleys are machined from 6061-T6 billet aluminum & polished to a mirror finish. Designed to bolt right on and align correctly the first time. Includes stainless steel hardware.

Designed for use with:

  • 396-454 Big Block Chevy (not 572, not tall deck heads)
  • Long water pump (standard rotation)
  • GM 60 to 80 amp alternator (passenger side)
  • Saginaw power steering pump ('75-'77 Chevelle with V8)

Kit Includes:

  • Polished billet aluminum mid mount alternator bracket
  • Polished billet aluminum mid mount power steering bracket
  • Polished billet aluminum alternator pulley with fan & nose cone
  • Polished billet aluminum water pump pulley with nose cone
  • Polished billet aluminum crankshaft pulley
  • Polished stainless steel turnbuckles
  • Stainless steel mounting hardware

Note:  Serpentine belts are not provided in kit.  Recommended Alternator Belt:  Goodyear 6 Rib #4060420 (42") or Dayco 6 Rib #5060420 (42").  Recommended Power Steering Belt:  Goodyear 6 Rib #4060385 (38.5") or Dayco #5060388 (38.8")

 910-13272 Instructions (PDF)

Customer Reviews

This product has no reviews.

Product Q&A

3 questions : 3 answers

1 answers

type 2 powersteering pump and surpentine system FM2222PC Billet FM2222PC B/B Chevy Mid Mount Serpentine Conversion Kit Press-On I like this kit but I need powersteering pump to be type2 with remote reservoir I need pump to run at 2.4-2.6 gpm and psi at 1450 this is for hydroboost please and brackets and pulley to match rest of system

marshalldude
canada
March 08, 2015

type 2 powersteering pump and surpentine system FM2222PC Billet FM2222PC B/B Chevy Mid Mount Serpentine Conversion Kit Press-On I like this kit but I need powersteering pump to be type2 with remote reservoir I need pump to run at 2.4-2.6 gpm and psi at 1450 this is for hydroboost please and brackets and pulley to match rest of system

Answers

March 09, 2015
EricM
Sorry we do not offer this kit for a GM type 2 power steering pump. We do have kit 91013222 which includes that style of power steering pump but this kit has a Sanden SD-7 AC compressor.
1 answers

Do you have for short water pump and in a high water flow ratio The engine is a 454 mark IV that im rebuilding. want a kit that has all the pulleys except the a/c with brackets and hardware. my power steering is press fit I believe.

Reynaldo
U.S. Virgin Islands
December 11, 2014

Do you have for short water pump and in a high water flow ratio The engine is a 454 mark IV that im rebuilding. want a kit that has all the pulleys except the a/c with brackets and hardware. my power steering is press fit I believe.

Answers

December 12, 2014
EricM
Sorry we do not offer this kit for big block Chevy with a short water pump. The water pump is driven faster than crankshaft RPM when using this kit and I assume that is what you are after when you say high water flow ratio.
1 answers

Will this system bolt onto a 1999 Vortec 454 engine Engine is going into an older vehicle and I want the mid mount accessories instead of the high mount alternator found on the Vortec.

Fabitup
vermont
April 13, 2014

Will this system bolt onto a 1999 Vortec 454 engine Engine is going into an older vehicle and I want the mid mount accessories instead of the high mount alternator found on the Vortec.

Answers

April 14, 2014
EricM
This kit is designed to work with the 396 thru 454 and includes the Vortec engines. It does require the use of a standard rotation long water pump. The Vortec engines used a reverse rotation water pump and cannot be used.
