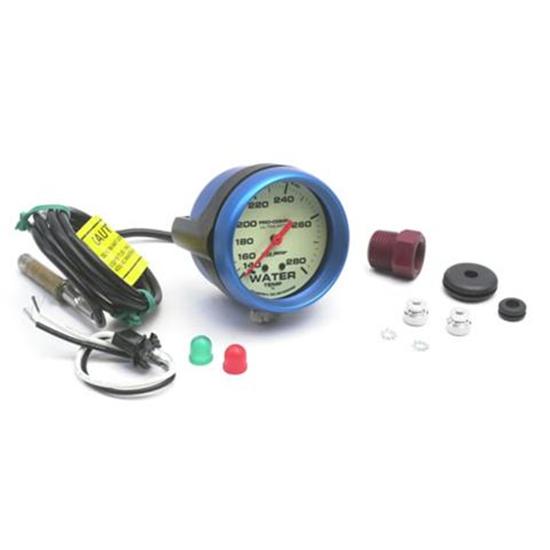

Auto Meter 4535 Ultra-Nite Mechanical Water Temperature Gauge

Specs
Sold in Quantity:
Each
Overall Diameter:
2.85
Gauge Type:
Mechanical
Stud Length:
.90
Stud Diameter:
.16
Center to Center:
2.10
Lighted:
No
Depth:
3.45
Bezel Finish:
Blue
Liquid Filled:
No
Gauge Face:
Ivory
Body Length:
1.43
Body Diameter:
2.62
MFG. Part #:
4535
Lettering Color:
Black
Needle Color:
Fluorescent Red
Garage Sale:
No
Gauge Range:
140-280 gauge measurement range.
Lighting Type:
Glow in the dark dial face
Includes Mounting Bracket(s):
Yes
Bezel Style:
Super Bezel
Included Adapter/Fitting:
1824535 4535 1500 Engine Coolant Temperature Gauges Gauge, Water Temp, 2 5/8", 140-280ºF, Mech., 4ft., Glow in Dark, Ultra-Nite White Blue Super Bezel 2-5/8" Glow in the dark dial face Fluorescent Red Mechanical 140-280 °F 1/2"" NPT adapter/fitting. 4 ft. Capillary Tube Bracket Included
Included Tubing:
4 ft. Capillary Tube
Notes
Includes 4' foot capillary tube. Sensor has a 5/8"-18 thread fitting and includes an adapter to 1/2" NPT. Gauge glows in the dark and has no provision for lighting.
Auto Meter 4535 Ultra-Nite Mechanical Water Temperature Gauge
Auto Meter 4535 Ultra-Nite Mechanical Water Temperature Gauge
Auto Meter 4535 Ultra-Nite Mechanical Water Temperature Gauge
Auto Meter 4535 Ultra-Nite Mechanical Water Temperature Gauge
Auto Meter 4535 Ultra-Nite Mechanical Water Temperature Gauge
Auto Meter 4535 Ultra-Nite Mechanical Water Temperature Gauge
Auto Meter 4535 Ultra-Nite Mechanical Water Temperature Gauge

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Auto Meter Pro-Comp gauges with blue anodized bezel are designed for the extreme conditions of dirt track racing. Temperature meter is fully sealed waterproof housing keeps moisture and debris out so it can be hosed off after the races. Ultra-Nite glow-in-the-dark face eliminates need for a back light. Keeps them simple and dry.

Mechanical operation with a 2-5/8" diameter.
