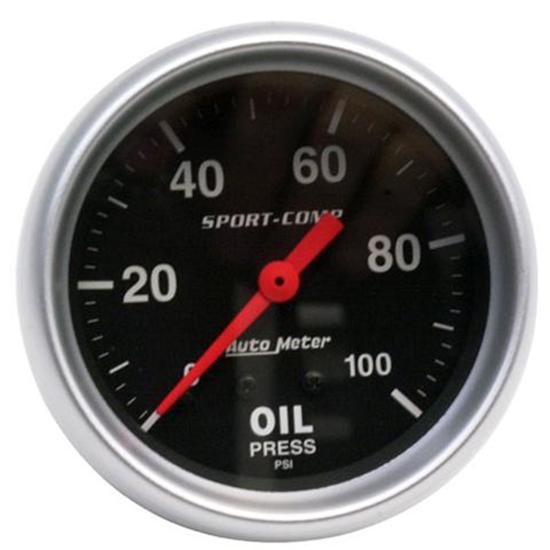

Auto Meter 3421 Sport-Comp Mechanical Oil Pressure Gauge, 100 PSI

Specs
Sold in Quantity:
Each
Tube Length:
10.00
Overall Diameter:
2.86
Gauge Type:
Mechanical
Stud Length:
1.00
Stud Diameter:
.16
Thread Pitch:
1/8" NPT
Lighted:
Yes
Depth:
2.52
Bezel Finish:
Brushed Aluminum
Liquid Filled:
No
Gauge Face:
Black
Body Length:
1.54
Body Diameter:
2.62
MFG. Part #:
3421
Lettering Color:
White
Needle Color:
Fluorescent Red
Mounting Bolt Center to Center:
2.07
Garage Sale:
No
Gauge Range:
0-100 PSI gauge measurement range.
Light Color:
White Incandescent
Lighting Type:
Incandescent
Includes Mounting Bracket(s):
Yes
Includes Bulb and Socket:
Yes
Includes Light Covers :
Yes
Bezel Style:
Super Bezel
Included Adapter/Fitting:
1/8" NPT Male to 1/8" compression fitting, 1/8" NPT Female to 1/8" compression fitting, 1/8" NPT to 1/4" NPT bushing
Included Tubing:
10 ft. nylon tubing
Notes
Includes NPT fittings and red and green light bulb covers.
Auto Meter 3421 Sport-Comp Mechanical Oil Pressure Gauge, 100 PSI
Auto Meter 3421 Sport-Comp Mechanical Oil Pressure Gauge, 100 PSI
Auto Meter 3421 Sport-Comp Mechanical Oil Pressure Gauge, 100 PSI
Auto Meter 3421 Sport-Comp Mechanical Oil Pressure Gauge, 100 PSI

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Mechanical gauges have a trademarked competition appearance and provide rugged reliable performance. Gauges feature white markings on a black face and a fluorescent red pointer for quick-glance monitoring. The gauge mechanisms are quality engineered with a sealed bourdon tube and 270° sweep for maximum accuracy.

Mechanical Oil Pressure Gauge Installation Instructions (PDF)

Specs

Sport Comp Gauges are 2-5/8"

Item Details

Has 1/8" NPT male fitting on back for line hook-up
Sport Comp Gauges are 2-5/8"
