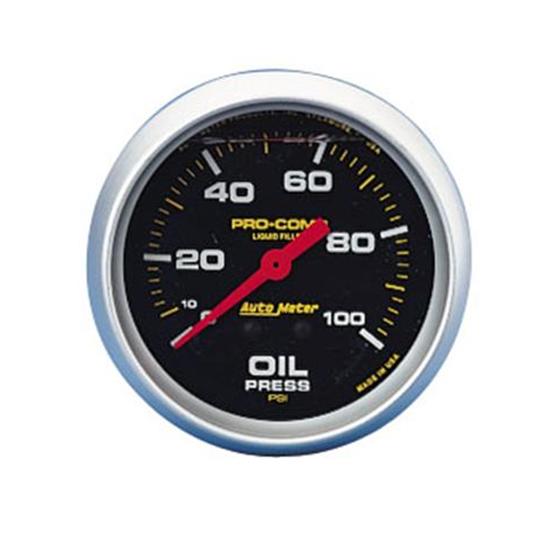

Auto Meter 5421 Pro-Comp Mechanical Oil Pressure Gauge, 100 PSI, 2-5/8

Specs
Sold in Quantity:
Each
Gauge Type:
Mechanical
Lettering Color:
White
Gauge Face:
Black
Lighting Type:
Incandescent
Bezel Finish:
Brushed Aluminum
Needle Color:
Fluorescent Red
Thread Pitch:
1/8" NPT and 1/4" NPT adapter.
MFG. Part #:
5421
Gauge Range:
0-100 PSI gauge measurement range.
Light Color:
White Incandescent
Bezel Style:
Super Bezel
Included Adapter/Fitting:
1/8" NPT Male to 1/8" compression fitting, 1/8" NPT Female to 1/8" compression fitting, 1/8" NPT to 1/4" NPT bushing
Included Tubing:
10 ft. nylon tubing
Lighted:
Yes
Liquid Filled:
Yes
Garage Sale:
No
Includes Mounting Bracket(s):
Yes
Includes Bulb and Socket:
Yes
Includes Light Covers :
Yes
Tube Length:
10.00
Overall Diameter:
2.85
Stud Length:
.54
Stud Diameter:
.16
Depth:
2.06
Body Length:
1.42
Body Diameter:
2.61
Notes
Includes 1/8" NPT fittings.
Auto Meter 5421 Pro-Comp Mechanical Oil Pressure Gauge, 100 PSI, 2-5/8

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

These mechanical Pro-Comp Liquid Filled gauges are designed for racing applications with extreme vibrations or violent pounding. The bourbon tube gauge mechanism is encased in a special dampening fluid that absorbs all vibrations. This protection not only provides steadiness to the pointer but also adds longer life to the instrument.

  • 2-5/8" O.D.
  • Includes 10 ft. nylon tubing with 1/8" NPT fittings
  • Includes 1/4 NPT adapter/fitting
  • Illuminates via incandescent bulbs and around-the-dial lighting
  • Red and Green bulb covers included

Pro-Comp Oil Pressure Gauge Installation Instructions (PDF)

Item Details

0-100 psi, Has 1/8" NPT male fitting on back for line hook-up

Customer Reviews

This product has no reviews.

Product Q&A

0 questions : 0 answers

No questions have been asked.
