Auto Meter 6601 Pro-Comp Air-Core Pedestal Tachometer, 10k RPM, 3-3/4

Specs
Sold in Quantity:
Each
Overall Diameter:
3.82
Gauge Type:
Electric
Lighted:
Yes
Depth:
3.00
Bezel Finish:
Brushed Aluminum
Liquid Filled:
No
Gauge Face:
Black
Body Length:
2.88
Body Diameter:
3.44
MFG. Part #:
6601
RPM Range:
0-10000 RPM gauge range.
Lettering Color:
White
Needle Color:
Fluorescent Red
Garage Sale:
No
Light Color:
White Incandescent
Lighting Type:
Incandescent
Includes Mounting Bracket(s):
Yes
Includes Bulb and Socket:
Yes
Includes Light Covers :
Yes
Bezel Style:
Super Bezel
Notes
Features remote mount recall feature. Includes red and green light bulb covers.

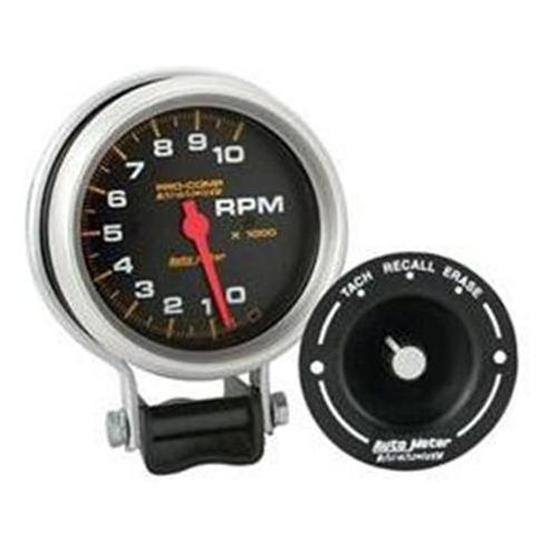

Auto Meter 6601 Pro-Comp Air-Core Pedestal Tachometer, 10k RPM, 3-3/4

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

These Pro-Comp Series Auto Meter tachs have an easy-to-read 3-3/4" face for excellent visibility under extreme racing conditions. Includes a pedestal mount which attaches to any flat surface or onto your steering column. Memory/recall feature is remote mounted. Operates on 4, 6, or 8 cylinder engines with points, electronic, and most 12V high performance racing ignitions.

Pro Comp Tach Chart

Tach Wiring Guide

Tachometer Gauge Installation Instructions (PDF)

Notes

  1. The STD/Elect ignition system operates on a standard point type or electronic ignitions, and most high performance ignitions, such as MSD. If using Accel HEI or Laser I/II ignitions, adaptor required.

Specs

  • Diameter:  3-3/4" (95.3mm)
  • Range:  0 - 10,000 rpm
  • Water Resistant
  • Remote Mount Memory Switch

Customer Reviews

This product has no reviews.

Product Q&A

0 questions : 0 answers

No questions have been asked.
